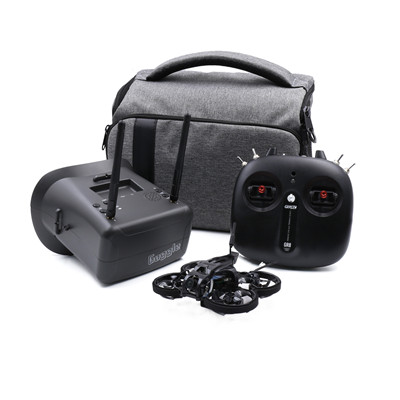

The TinyGO is a complete pack to get into immersion flights… It includes a Tinywhoop type nano racer with its propeller protections, a radio control and an immersion mask. The manufacturer has added 4 batteries, a charger and a bag for transport.
The heart of the pack is the TinyGO, a Tinywhoop brushless: it measures 7.9 cm diagonal from motor to motor and rests on a plastic structure including the propeller protections. The motors are GR1102 to 10000KV for 1.6 inch four-bladed Gemfan propellers (1636). The flight controller is a GEP-12A-F4: it is based on an F4 processor, flashed with Betaflight, with an active OSD. It includes an ESC 4 in 1 of 12A DShot600 and BLheli_S. The video transmitter is a 5.8 GHz analog model capable of transmitting at 25 mW and 200 mW.
One is equipped with the RunCam Nano2 camera for simple immersion flights, the other with a Caddx Loris hybrid camera, capable of providing video feedback for the FPV, but also of recording 4K video at 60 fps. The batteries are LiHV 1S 4.35V 530 mAh 80C LiHV with a PST PH2.0 connector. The TinyGO is designed to accommodate 2 batteries simultaneously to obtain a 2S power supply. GePRC promises an autonomy of up to 6 minutes. In the case is a USB charger capable of accommodating 4 batteries simultaneously.
The remote control is the GR8, a 2.4 GHz model with 4 switches, available in mode 2 and mode 1, for which GePRC indicates a range of 300 meters. It is to be powered with 4 AA batteries. The mask is the RG1, an entry-level display with a 4.3 inch screen that displays 800 x 480 pixels, powered by an integrated 1S 2000 mAh battery for a 2.5 hour autonomy. It has a DVR: a recorder of the video return on a microSD memory card to keep a memory of your flights!
1. TinyGO is very suitable for indoor flight, More than 6 minutes of flight time
2. Using GEPRC-12A-F4 FC system, reliable and stable
3. No Propellers in view, Anti-jamming VTX, NO Jello flight Footage, stable flight picture
4. The Newly Developed GR8 Remote Controller is specially designed for Novice and indoor flight
5. High-Quality FPV Goggle, High definition 800 * 480px, sensitive 5.8G receiver
6. Ready To Fly Kit, Including a GEPRC Fashion Fly bag, Portable and Light weight.
7. There are Two versions: The normal version is suitable for daily practice, The 4K version can Record 4K 60fps Video.
Motor to Motor: 79mm
OSD: BetaFlight OSD w/ AT7456E chip
ESC: BLheli_S 12A
VTX: 5.8G 25~200mW VTX
Camera: Caddx Loris 4K 60fps
Propeller: GEMFAN 1636*4 (4 pairs)
Motors: GR1102 10000Kv
TinyGO 4K Weight: 54.8 Grams
