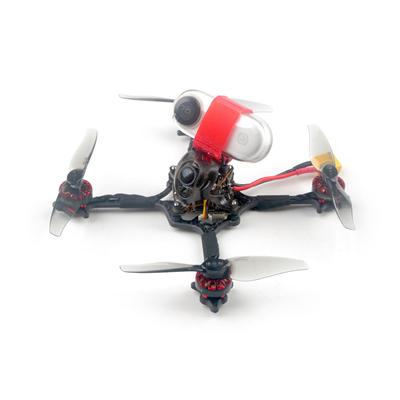

Happymodel Crux3

Happymodel Crux3
Brand: Other
Category: Drones
  • 1: 41 gram 1-2s brushless Toothpick drone
  • 2: New AIO 4in1 CrazybeeX flight controller
  • 3: CADDX ANT 1200tvl Camera
  • 4: New 1202.5 brushless motor
  • 5: XT30 connector
  • 6: Compatible with Insta360 Go Camera

Happymodel Crux3 - Video

Happymodel Crux3 - Price

Happymodel Crux3 - Specs

Product Details

  • Features
    1. 41gram 1-2s brushless Toothpick drone
    2. New AIO 4in1 CrazybeeX flight controller
    3. CADDX ANT 1200tvl Camera
    4. New 1202.5 brushless motor
    5. XT30 connector
    6. Compatible with Insta360 Go Camera
  • Specification
    Brand Name: Happymodel
    Model: Crux3
    Item Name: 115mm F4 OSD 1-2S 3 Inch Toothpick FPV Racing Drone
    Wheelbase: 115mm
    Size: 97x97x35mm (without propellers)
    Optional Receiver Version:
    Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)
    Internal SPI Flysky version(Compatible with AFHDS and AFHDS-2A Flysky transmitter)
    Internal SPI DSM2/DSMX version(Compatible with Spektrum or Multiprotocol DSM2/X radio)
    External Frsky RXSR receiver version(ACCST D16 sbus output)
    External TBS Crossfire Nano receiver version
    Weight: 41g (without battery)
    Recommend Lipo Battery: 2s 350mah/400mah/450mah/520mah Battery ( NOT Included)
  • Package content
    1x Crux3 Frame and Canopy
    1x Optional Receiver
    1x F4 Flight Controller AIO 5A ESC Board
    1x 5.8G 25-200mW VTX ( built-in Flight controller)
    4x Happymodel EX1202.5 6400 KV Motor
    4x Gemfan 3018 Propeller CW
    4x Gemfan 3018 Propeller CCW
    1x Caddx Ant 1200TVL Global WDR with OSD 2g Ultra Light Nano FPV Camera
    1x Screw Driver
    1x Propeller Disassemble Tool
    1x Happymodel Handbag

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 8 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

Happymodel Crux3 115mm CrazybeeX FR 3 Inch Toothpick FPV Racing Drone

It is a new Toothpick that the manufacturer Happymodel proposes. As a reminder, Toothpick are minimalist aircraft, with 1S or 2S batteries, two-bladed propellers, intended for committed flights. The Crux3 is based on a unibody carbon structure with thin arms, and a motor to motor diagonal of 11.5 cm. It measures 9.7 x 9.7 x 3.5 cm without the propellers. The motors are brushless EC1202.5 at 6400KV for Gemfan 3018 two-bladed propellers with a 1.5 mm hole.

The flight controller is a CrazyBeeX v2.2 based on an F4 processor, associated with a 4 in 1 ESC of 5A. Depending on the version, the CrazyBeeX can be a model with an integrated SPI receiver compatible with FrSky D8, Flysky or DSM2/DSMX. Or not equipped with a receiver, but delivered with a welded external receiver R-XSR from FrSky or Crossfire Nano RX from TBS. Weight ? 42 grams without battery (and with an SPI receiver). The FPV camera is an Ant from Caddx, a 1200TVL that works with a video transmitter integrated in the CrazyBeeX, compatible with 40 channels and a power of 25 mW (the maximum allowed in France) or 200 mW.

The connector for the power supply is an XT30, it expects 2S batteries of 350, 400, 450 or 520 mAh. There is no hatch to fix the battery: it’s up to you to manage with rubber bands (supplied). On the other hand, Happymodel delivers a support to install an Insta360 GO camera to come back with 1080p/25 videos. The price ? From $95.99 at Banggood (without postage and taxes). The camera is expected to be available from October 18, 2020.
