Happymodel Mobula6

Happymodel Mobula6

Brand: Other
Category: Drones
  • 1: SPI BUS receiver Frsky D8 compatible
  • 2: Compatible Non EU transmitter D8 model
  • 3: Channels: 8ch
  • 4: Failsafe support
  • 5: Built-in 5.8G VTX

Our Rating

The overall rating is based on review by our experts

9
  • Design 9 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 9 / 10

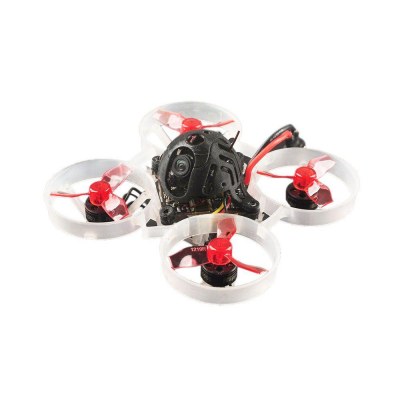

Happymodel Mobula6 65mm Crazybee F4 Lite 1S Whoop FPV Racing Drone

The Mobula6 completes the Mobula7. It is smaller, perfect for winter indoor flights! Its motors are brushless 0802 to 19000 or 25000KV (to be chosen at the time of purchase) for Gemfan 1219 three-bladed propellers with a diameter of 3.1 mm. The flight controller is a CrazyBee F4 Lite: it is designed for 1S batteries only, with an integrated 4-in-1 ESC of 5A DShot600. On the same component is a FrSky D8 compatible or Flysky AFHDS / AFHDS2A compatible radio receiver (also available for purchase). And then a 5.8 GHz video transmitter compatible with 40 channels for a transmission power of 25 mW (the maximum allowed in France).

The camera is a RunCam Nano 3. It is an 800TVL with a D-WDR function to enhance the images. The Mobula6 is to be powered by a 1S battery with a PST PH2.0 connector. Happymodel provides 4 in the box, 1S 300 mAh 30C with a USB charger. With 20 grams on the scale (without the battery), the Mobula6 loses 9 grams compared to the Mobula7.

It will be offered at $79.00 by Banggood (without the port, without taxes), with availability at the end of November 2019. Let’s hope it’s as good as the previous models, Mobula7 and 7HD!

SPECS

Product Details

Features MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver
Built-in 5V 1A BEC
Built-in voltage detection
Specification Brand Name: Happymodel
Model: Mobula6
Item Name: 65mm Crazybee F4 Lite 1S Brushless Whoop FPV Racing Drone BNF
Optional Version: Frsky Receiver ( Compatible with ACCST D8/D16, Recommend D8 mode)
Flysky Receiver ( Compatible with AFHDS and AFHDS-2A Flysky transmitter)
Drone Wheelbase: 65mm
Size: 80x80x37mm
Weight: 20g


Model: SE0802
KV: 19000KV / 25000KV Motor
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
Weight(g):1.9g
No.of Cells(Lipo):1S only

Brand Name: Runcam
Model: Nano 3
Item Name: 1/3 CMOS 800TVL Camera
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm
