Brand: Other
Category: Drones
  • 1: Drone F4 OSD 12A 0803 Motor
  • 2: Power Supply: 2-3S LiPo
  • 3: Carbon Fiber Plate: 1.5mm+1.0mm
  • 4: Ducts: Nylon Plastic
  • 5: Wheelbase: 92mm

Our Rating

The overall rating is based on review by our experts

  • Design 8 / 10
  • Features 9 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

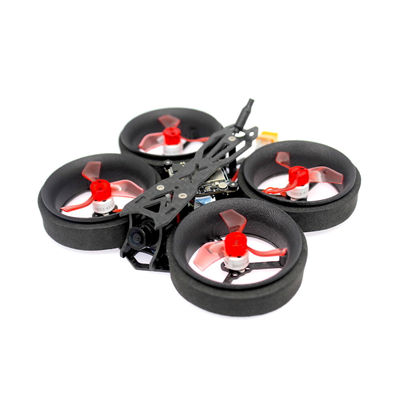

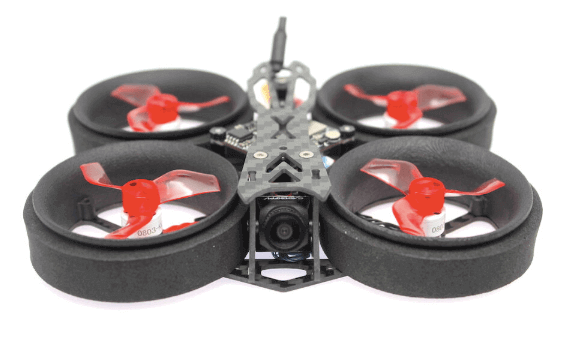

HBFPV DX40 40mm EVA Ducted 2-3S HD FPV Racing Drone

This time, we will introduce “DX40 40mm” newly released from HBFPV. It is a model that can shoot aerial images in HD quality and can fit in less than 200 g even if a battery is inserted.

The camera is equipped with “Caddx Baby Turtle” that can shoot aerial at 1080P 60fps.
It seems that you can shoot aerial with beautiful image quality. The area around the duct is coated because it looks like Punipuni material. Even if you hit something, you can fly safely without scratching.

I’m not sure if it’s trending recently, but the number of drones with solid ducts is increasing. There are various “mega hoops” with ducts of 200g or more. By the way, I don’t have any hoops of this shape with a solid duct, and if it’s less than 200g I can easily play and buy it.

Just looking at the manual, FC and VTX may be pin type, so it may be difficult to replace only VTX.


Product Details

Features Model: HBFPV AF412
MCU: STM32F411
IMU: MPU6000 gyroscope/accelerometer (SPI)
OSD: BetaFlight OSD w/ AT7456E chip
Barometer: N/A
BEC Output: 5V@2A
Integrated LC Filter
Include Buzzer pad
Firmware target: MATEKF411
Continuous current: 12A(13A for 3 seconds)
Input: 2-4S LiPo
Supports Dshot600, Proshot, Oneshot125, Multishot
Current meter: 210
ESC Target: G_H_30
Size: 28.5×28.5mm board
Installing Hole: 25.5×25.5mm, M2 with damper/M3
Weight: 4.7g
Specification Brand name: HBFPV
Item name: HBFPV DX40
Drone F4 OSD 12A 0803 Motor
Power Supply: 2-3S LiPo
Carbon Fiber Plate: 1.5mm+1.0mm
Ducts: Nylon Plastic
Wheelbase: 92mm
Weight: 65g (without battery)
Recommend BAT: GNB 2S 550mAh / GNB 3S 450mAh
Estimated Flight Time: 4-7 minutes
Receiver Options:
FrSky D8 / D16-EU-LBT / D16-NonEU, DSMX, FS-RX2A, for Futaba-SFHSS
Package Size: 132x132x33 mm
Package Total Weight: 166g
