HBFPV FA70 GT

HBFPV FA70 GT

Brand: Other
Category: Drones
  • 1: Power Supply: 2-3S
  • 2: Weight: 57g
  • 3: MCU: STM32 F4
  • 4: Gyroscope: MPU6000
  • 5: BEC: 5V/2A

Our Rating

The overall rating is based on review by our experts

8.5
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

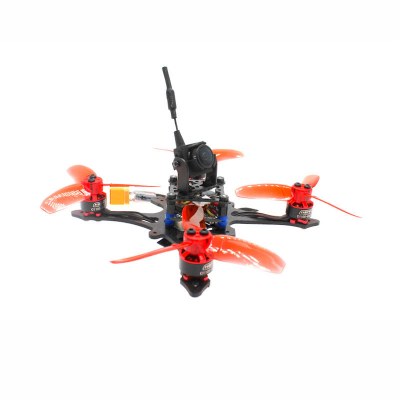

HBFPV FA70 GT 2.8 Inch 2-3S FPV Racing Drone

This 10.8 cm drone microphone with a diagonal measurement of the motor engine looks a little similar to the Optimus from HRC-Lipo (see here)… It is based on a 2 mm thick carbon unibody structure. At the heart of the aircraft is a flight controller based on an F4 processor, flashed with Betaflight, with an active OSD. It is coupled with a 4 in 1 ESC of 12A DShot600. The motors are 1105 to 6500KV for propellers with a diameter of 6.5 cm, two blades according to the technical data sheet, three blades according to the pictures.

The FPV camera is a Caddx EOS2 1200TVL coupled to a 5.8 GHz video transmitter capable of transmitting on 48 channels at 0 mW (pitmode), 25 mW, 100 mW or 200 mW, with a dipole antenna, and with SmartAudio support for settings. It is available without a radio receiver, or with a DSM2 / DSMX, Flysky RX2A, FrSky Pro D8, FrSky D16 or Futaba SFHSS AC900 compatible receiver. The price? It will be offered from $126.00 at Banggood.

SPECS

Product Details

Features Size: 28.5mm x 28.5mm
Mounting hole: 25.5mm x 25.5mm
MCU: STM32 F4
Gyroscope: MPU6000
BEC: 5V/2A
Input Voltage: 2-4S Lipo
Built-in Betaflight OSD
Specification Brand Name: HBFPV
Model: FA70 GT
Max Prop: 70mm (2.8inch)
Wheelbase: 108mm
Thickness of Carbon Fibre: 2.0mm
Material of Ducts: N/A
Material of Canopy: Enhanced Nylon Plastic

Power Supply: 2-3S
Weight: 57g (without BAT)
Hovering Throttle: 25-27% (with 3S 300mAh)
Recommend BAT: GNB 3S 300mAh / GNB 3S 350mAh

FC: F4 2-4S 5V 2A BEC built-in OSD
ESC: 12A (2-4S ESC) BLHeli_S 4in1 DShot600
Motor: HBFPV C1105-6500KV (2-3S)
Prop: HQ 65mm 2-blade propeller
Cam: EOS2 1200TVL camera
VTX: Pit-25-100-200mW with IRC Tramp

Output power: Pit-25-100-200mW
Control mode: BF OSD control (IRC Tramp)
Video system: NTSC/PAL
Battery: 5V
Frequency: 5.8GHz 6 bands 48 channels, with RaceBand: 5362-5945MHz
