helifar X140 PRO

helifar X140 PRO
Brand: helifar
Category: Drones
  • Feature 1: CPU: STM32F405RGT6, dual 8K
  • Feature 2: MPU: MPU6000 - SPI
  • Feature 3: Input voltage: 2 - 4S Lipo battery
  • Feature 4: Output power: 25mW / 100mW / 200mW switchable
  • Feature 5: Video system: NTSC / PAL
  • Feature 6: FOV: 145 degree ( 2.3mm )

helifar X140 PRO - Video

helifar X140 PRO - Price

  • GearBest.com helifar X140 PRO Micro FPV Racing Drone - Black BNF with Frsky Receiver $149.99
    View Offer

helifar X140 PRO - Specs

Product Details

  • Features
    - Stretch - X 3K carbon fiber frame with 4mm arm plate thickness
    - helifar F4 flight controller with MPU6000 - SPI MPU, Betaflight OSD, supports 2 - 4S Lipo
    - 5.8GHz 48CH 25mW / 100mW / 200mW switchable transmitter, Support Betaflight OSD adjust power and frequency. PIT MODE is 0 mW for Close-up bind.
    - helifar Blheli 32 4-in-1 25A ESC, support Dshot 1200, 1408 3800KV brushless motor
    - 2.3mm lens 600TVL CCD camera, 145 degree
    - With programmable LED light and 3041 four-blade propeller
  • Specification
    Frame:
    - Wheelbase: 145mm
    - Arm plate thickness: 4mm
    - Top and bottom plate thickness: 2mm
    - Side plate thickness: 1.5mm
    - Material: 3K carbon fiber
    - Weight: 49g

    F4 Flight Controller:
    - Micro F4 flight control board ( Dshot version )
    - MPU: MPU6000 - SPI
    - CPU: STM32F405RGT6, dual 8K
    - Input voltage: 2 - 4S Lipo
    - Built-in Betaflight OSD to adjust PID
    - BEC output: 5V 3A
    - Size: 25 x 25mm board, 2mm mounting holes ( M2 )
    - Weight: 2.3g
    - Support subs / PPM / DSMX receiver

    helifar ESC:
    - Input voltage: 2 - 4S Lipo battery
    - Constant current: 25A
    - Peak current: 30A
    - BEC ouput: no
    - Firmware: BLheli 32
    - Size: 27 x 27mm ( main board ) 27 x 31mm ( including pad )
    - Installing hole: 20 x 20mm, M2
    - Weight: 4g
    - CPU: 32 - bit ARM cortex MCU 48MHz
    - MOS tube: top quality mosfet
    - Support damped mode, oneshot125, oneshot42, multishot, Dshot150 / 300 / 600 / 1200, forward and reverse

    FPV Transmitter:
    - Output power: 25mW / 100mW / 200mW switchable
    - Support Betaflight OSD adjust power and frequency. PIT MODE is 0 mW for Close-up bind
    - Frquency: short press once time to change channel CH ( CH1 - CH8 )
    - Power: Long press 10s to inter power switchable mode. The LED light as follow. And short press to change the 25 / 100 / 200mW
    - BAT: 7 - 26V, BEC 5V - 1A
    - Video system: NTSC / PAL
    - Antenna: RPSMA
    - Frequency: 5.8GHz, 5 bands, 48channels with raceband: 5362 - 5865MHz
    - Size: 24 x 24mm ( L x W )
    - Hole: 20 x 20mm
    - Weight: 2.4g

    5.8G 600TVL CCD Camera:
    - Image sensor: 1 / 3 inch SONY super HAD II CCD
    - Horizontal resolution: 600TVL
    - Lens: 2.3mm
    - FOV: 145 degree ( 2.3mm )
    - Signal system: PAL / NTSC
    - S / N ratio: more than 60dB ( AGC OFF )
    - Electronic shutter speed: PAL: 1 / 50 ~ 100000; NTSC: 1 / 60 ~ 100000
    - Autogain control ( AGC ) : yes
    - Back light compensation ( BLC ): yes
    - Illumination: Min. 0.01lux / 1.2F
    - WDR: D - WDR
    - DNR: 2DNR
    - Day / Night: color / auto / B and W
    - Power: DC 5 to 36V

    5.8G Antenna:
    - Omnidirectional antenna
    - Frequency: 5600 - 6000MHz
    - VSWR: less than 1.2 at 5800GHz
    - Gain: 2.8dBi
    - Impedance: 50ohm
    - Polarization modes: vertical
    - Interface: SMA, RP - SMA
    - Weight: 4g

    Product weight: 0.1563 kg
    Package weight: 0.3063 kg
    Package size (L x W x H): 16.00 x 16.00 x 5.00 cm / 6.3 x 6.3 x 1.97 inches
  • Package content
    1 x X140 PRO Drone,
    8 x 3041 Four-blade Propeller,
    4 x Battery Tie,
    1 x Power cable,
    2 x Heat Shrink Tubing,
    1 x Camera Lens Cover

Our Rating

The overall rating is based on review by our experts

8.0 4.0 1
  • Design 8 / 10
  • Features 8 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

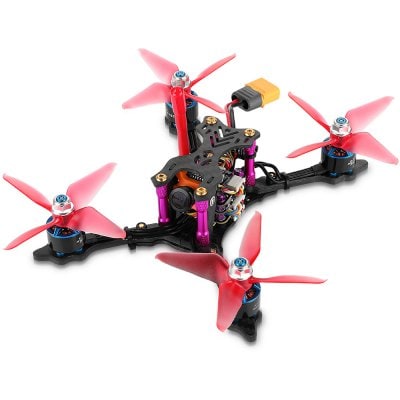

helifar X140 PRO Micro FPV Racing Drone

Can you really substitute an FPV racing with a smaller drone? Absolutely. Professional and amateur racers alike want to get a micro drone to hone their skills both indoors and out, just come to see and try our helifar Micro Racing Drone! The carbon fiber frame and F4 flight controller can keep the drone well-balanced in the air, and micro brushless motor and precise transmitter give accurately integrated control of all quadcopter systems. Just strap the battery, bind with your transmitter, and get impressed by the flight performance of the little multirotor.
