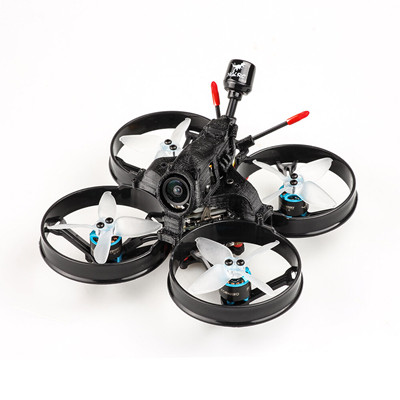

HGLRC offers a new Tinywhoop brushless, the Motowhoop 90. It is based on a carbon structure on which the motors and electronics are installed. It is equipped with propeller guards and a central fairing. The device measures 9 cm diagonal from motor to motor, and 106 grams without its battery.
The motors are brushless 1106 to 3800KV for 2 inch Emax Avan four-bladed propellers. The flight controller is a Zeus AIO based on an F7 processor, flashed with Betaflight, and including a ESC 4 in 1 of 13A.
The video feedback is based on a Caddx Vista box compatible with the digital DJI system, and with a Caddx Nebula Nano camera. The antenna is an LHCP polarized Hammer. This allows the device to be controlled with a DJI radio control. But the Motowhoop 90 HD can also be delivered with a radio receiver XM+ or R-XSR from FrSky, A8S V2 from Flysky or Crossfire Nano RX from TBS to ensure compatibility with other radio controls. The battery connector is an XT30. HGLRC recommends Lipo 4S from 300 to 450 mAh.
