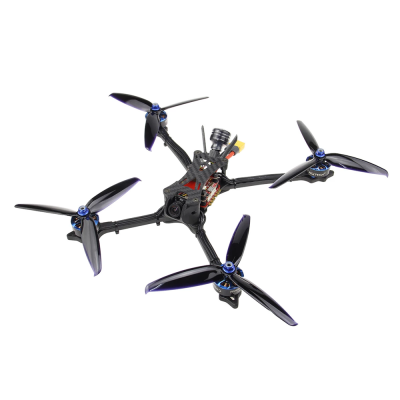

HGLRC Wind6 FPV Racing Drone

HGLRC Wind6 FPV Racing Drone

Brand: Other
Category: Drones
  • 1: Arm Thickness: 6mm
  • 2: Standoff Height: 28mm
  • 3: MPU: ICM20608 (32K) & MPU6000-SPI
  • 4: CPU: STM32F745VGT6, 32K+16K
  • 5: LED Output: 5V@3A

Our Rating

The overall rating is based on review by our experts

8.5
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

HGLRC Wind6 6S FPV Racing Drone F7 Dual Flight Control

Unlike nano racers, the HGLRC Wind6 is a large format multirotor designed to fly fast. It is based on a carbon frame with 6 mm thick arms, for a 26.7 cm motor motor diagonal. The propellers are 6-inch (6042) Gemfan three-blade threshing machines. To animate them, HGLRC chose 2408 to 1700KV brushless motors driven by a 65A 4 in 1 ESC. The conductor is an F7 Dual Flight Control flight controller flashed with Betaflight and equipped with an active OSD.

The FPV part is provided by an Aurora V2 1200TVL camera combined with a 5.8 GHz video transmitter compatible with 48 channels. It can transmit at 0 mW (pitmode), 25 mW (the maximum allowed in France), 50 mW, 100 mW, 200 mW or 400 mW. The antenna is a polarized Hammer connected with an MMCX connector. The weight of the device, excluding battery, is 389 grams. HGLRC recommends 6S batteries to power the Wind6. The device will be available without a radio receiver, or with a Flysky A8S or FrSky XM+ receiver.

SPECS

Product Details

Features Dual Flight Control
65A 4in1 ESC
2408 1700KV Motor
Specification Brand Name: HGLRC Wind6 FPV RACING DRONE
Net Weight:389g

Model: Wind6
Wheelbase: 267mm
Type: 6" Frame
Arm Thickness: 6mm
Standoff Height: 28mm
Flight control installation holes: 20*20mm&30 * 30mm Chute type
Support camera: 19mm
Material: Carbon Fiber
Weight: 101g

MPU: ICM20608 (32K) & MPU6000-SPI
CPU: STM32F745VGT6, 32K+16K
Input Voltage: 3-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A, 8V@1.5A
LED Output: 5V@3A,
Size: 37x37mm, 30.5mm mounting holes
Weight:10.2g

CPU:STM32L431
Input Voltage: 3-6S Lipo
BLHELI32 Firmware
Steady Current: 65A
Pe.ak Current: 75A
BEC: NO
Supported Protocols:
DSHOT1200/600/300/150.ONESHOT125/42.MultiShot
Size: 46*45*6mm
Weight: 23.6g

Image Sensor:1/2.7 " 1200TVL CMOS
TV System: PAL/NTSC Switchable
Lente:2.1mm
S/N: > 50dB
Min. illumination: Color: 0. 05Lux; BW: 0.001Lux(F1.2,50IRE,AGC ON)
WDR: Support
Lanuage: Chinese/English/Italian/Russian
OSD programming board: Support
Input Power: DC 5V-30V
Working Temperature:-10℃ ~50℃
Storage Temperature: -40℃ ~60℃
Dimensions:19mm*19mm*27mm
Net weight:8.9g
