iFlight Cidora SL5-E

iFlight Cidora SL5-E

Brand: iFlight
Category: Drones
  • 1: MCU: STM32F405
  • 2: IMU: MPU6000
  • 3: OSD: AT7456E
  • 4: Blackbox: 8MB
  • 5: BEC: 5V/3A cont

Our Rating

The overall rating is based on review by our experts

8.3
  • Design 9 / 10
  • Features 8 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

iFlight Cidora SL5-E 215mm SucceX-E F4 2207 1800KV 6S FPV Racing Drone

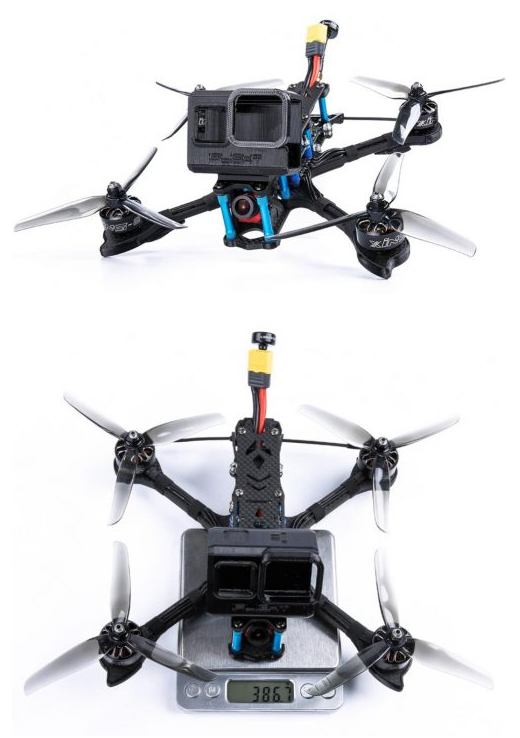

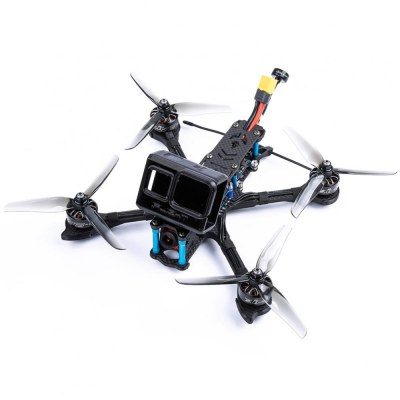

The latest trends are racer racer powered by 6S batteries. As is often the case, technology is an endless, forward flight. Do you really need the power of a 6S battery to enjoy immersion? No, of course not, but it’s obvious that the power gain is particularly exciting! The iFlight Cidora SL5-E is based on a carbon structure of 21.5 cm diagonal from motor to motor. The heart of the aircraft is a SucceX-E F4 flight controller flashed with Betaflight, with an altimeter barometer. He drives a 4 in 1 SucceX-E 45A ESC for 2207 to 1800KV brushless motors and Nazgul 5140 three-bladed propellers.

The video part is provided by a Caddx Ratel FPV camera, a 1200TVL associated with a 5.8 GHz iFlight video transmitter compatible with 48 channels capable of transmitting at 0 mW (pitmode), 25 mW (the maximum allowed in France), 100 mW, 200 mW, 400 mW and 600 mW, with a polarized antenna. In 6S, it is possible to move away very quickly, which makes it important to use a transmitter set to a high power. Be careful, in France, it is forbidden, you will be hanged high and short if you do.

The Cidora SL5-E is available without a radio receiver, or with a FrSky R-XSR or XM+ receiver, or TBS Crossfire Nano SE to go a little further (where allowed). The battery connector is an XT60, which expects a 6S battery from 1300 to 2200 mAh. The 5S and 4S also work, of course. Note that the support for the GoPro camera shown in the pictures is not included with the camera. The device, without the battery but with the GoPro holder, weighs just under 390 grams. The price? The Cidora SL5-E will be available from $199.99 at Banggood.

SPECS

Product Details

Features
MCU: STM32F405
IMU: MPU6000
OSD: AT7456E
Blackbox: 8MB
4X Uarts(1 2 3 6)
8X Dshot/Proshot/Oneshot output
8X individual ESC power/ signal pads
1X Group of Gnd/Vbat/M1/M2/M3/M4/Cur/TX
Smart audio & Tramp VTX protocol: YES(IRC Tramp)
WS2812 led Strip: YES
Baro: No
Beeper: YES
PDB Specifications
Input: 2-8S(50V)
BEC: 5V/3A cont
FC Firmware
Betaflight
Target: STM32F405
FC: IFRC/IFF4_TWIN_G(STM32F405)
Physical
Mounting: 30.5*30.5mm, φ4mm with Grommets φ3mm
Dimensions: 36*36mm
Weight: 7.6g
Specification Brand Name: iFlight
Model: Cidora SL5-E
Item Name: 215mm SucceX-E F4 2207 1800KV 6S FPV Racing Drone
Frame Wheelbase: 215mm
Weight: 384.2 (without battery & receiver )

- Dimension: 40*43mm
- Mounting Holes: 30.5*30.5mm/Φ3mm
- Weight:14.4g
- Supports 2-6S Lipo input
- STM32F051 MCU, 48Mhz Runs BLHELI 32.X Firmware
- Current sensor: No
- BEC: No
- Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
- Target: G-H-30 BLS 16.7

Brand Name: Caddx
Item Name: Ratel
Color: Red
Lens: 2.1mm
Image Sensor: 1/1.8" Inch starlight HDR sensor
Horizontal Resolution: 1200TVL
FOV: 180 Degree
Min. Latency: 8ms
TV System: NTSC & PAL (changeable)
Image: 16:9 & 4:3 (changeable)
WDR: Super WDR (HDR)
Min. Illumination: Starlight
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio: >60dB (AGC OFF)
Video Output: CVBS
Camera OSD: Separate OSD
DNR: 3-DNR
Language: ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN
Day/Night: Auto/Color/B&W/EXT
Dimensions: 19mm*19mm*19mm
Wide Power Input: DC 5-40V
Work Temperature: -20℃~+60℃
Work Humidity: 20%~80%
Weight: 8g (N.W.)/ 40.5g (G.W.)
