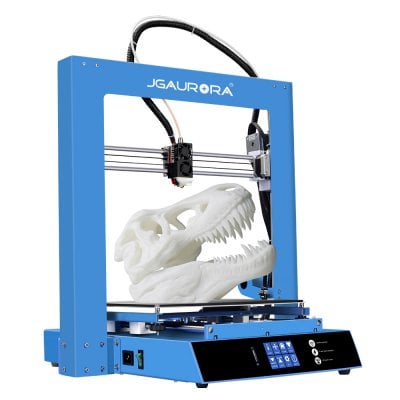

JGAURORA A1

JGAURORA A1
Brand: JGAURORA
Category: 3D Printer
  • 1: Build size: 300*300*300mm
  • 2: 2.8' full color touch screen
  • 3: Three-step fast assembly
  • 4: Light industry design
  • 5: Power failure recovery
  • 6: Dual fan design, cooling fast

JGAURORA A1 - Specs

Product Details

  • Features
    1. Build size: 300*300*300mm
    2. Light industry design
    3. High accuracy large build size
    4. Three-step fast assembly
    5. Dual fan design, cooling fast
    6. Unique gapless feeding system
    7. 2.8' full color touch screen
    8. Auxiliary leveling system
    9. Power failure recovery
    10. Filament sensor detection
  • Specification
    Brand: JGAURORA
    Type: DIY
    Model: A1
    Frame material: Sheet-metal structure
    Platform board: Aluminum Alloy + Glass
    Nozzle quantity: Single
    Nozzle diameter: 0.4mm
    Nozzle temperature: Room temperature to 250 degree
    Product forming size: 300x300x300mm
    Layer thickness: 0.05-0.3mm
    Memory card offline print: SD card
    LCD Screen: Yes
    Print speed: 10-150mm/s
    Platform temperature: Room temperature to 110 degree
    Supporting material: ABS,TPU,PLA
    Material diameter: 1.75mm
    Language: English
    File format: STL,G-code,OBJ
    Model supporting function: Yes
    XY-axis positioning accuracy: 0.011mm
    Z-axis positioning accuracy: 0.0025mm
    Voltage: 110V/220V
    Host computer software: Cura,JGcreat
    Packing Type: unassembled packing
    System support: Windows7/Windows10/XP
    Certificate: CE,FCC
    Connector Type: SD card

    Product weight: 12.3000 kg
    Package weight: 16.5000 kg
    Product size: 52.00 x 49.40 x 54.20 cm / 20.47 x 19.45 x 21.34 inches
    Package size: 62.00 x 58.50 x 32.00 cm / 24.41 x 23.03 x 12.6 inches
  • Package content
    1 x PLA,
    1 x USB Cable,
    1 x SD Card,
    1 x Card Reader,
    1 x USB Stick,
    1 x 1.5/2.0/2.5/3.0mm Allen Wrench,
    5 x M4x6 Socket Cap Screw,
    4 x M3x5 Socket Cap Screw,
    1 x PE Ziplock Bag,
    1 x Tool Box

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 9 / 10
  • Features 9 / 10
  • Connectivity 8 / 10
  • Performance 8 / 10

JGAURORA A1 3D Printer High Accuracy Easy to Operate

JGAURORA A1 is a stand-alone 3D printer that comes in almost assembled form. This product is aimed at those who want to start printing almost immediately after unpacking the box, with 3D printers Jgaurora does not need to spend hours trying out and catching the settings, the bundled software already has presets optimal for printing with each of the types of plastic.

As you can see from the video – the parcel is well protected from the vandals of the Russian Post. If, in addition, the delivery will be carried out by the transport company, then you absolutely do not have to worry about the fact that the sent package may contain not a ready printer, but its fragments.

Assembly is very simple, you need to insert in the grooves of the vertical part with the axes X and Z, and then fix it with bolts.

In the software you can choose the Russian language, it’s convenient, you immediately understand what settings are responsible for that. But, if you use the standard settings, then the language can be English.

To improve the quality of printing, I changed the following values:

  • The nozzle temperature during the first layer printing: 205 degrees
  • Nozzle temperature: 200
  • Adhesion to the table: Border
  • Edge width: 5 mm

The JGAURORA A1 is a new 3D printer and reviews from users are still few. Basically they complain about bouden flow of plastic. In the case of a replacement (for example – you decide to print different groups of layers in different colors), you just have to wait for the feed all the way down to the nozzle.

However, using a bowden feeder makes it possible to speed up the printing of models, since the motor is fastened to the frame, the inertia of the nozzle is much lower when traveling, which means not only greater speed, but also increased accuracy of printing.

Pros :

  • Large print area
  • Rigid, fully metal frame
  • Printing out of the box
  • Convenient software in Russian
  • Possibility of autonomous printing
  • Touch Control
  • Ability to restore printing after power failure
  • Special coating thermistol
  • PLA test coil

Cons :

  • Bowden filar filing is too long when changing plastic
