Category: TV Box
  • 1: System: Android 8.1
  • 2: CPU: Amlogic S905X2
  • 3: 4GB DDR4 RAM + 32GB / 64GB EMMC ROM
  • 4: 1000Mbps Ethernet
  • 5: GPU: ARM Dvalin MP2
  • 6: 2.4GHz + 5GHz dual band WiFi

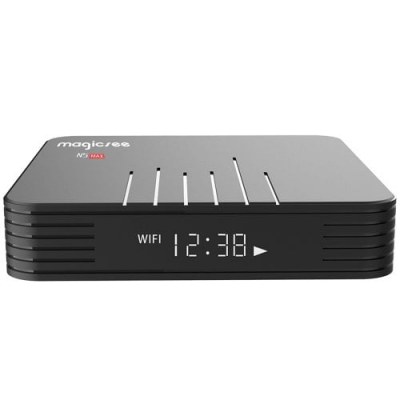

MAGICSEE N5 Max - Specs

Product Details

  • Features
    ● Android 8.1 operation system
    ● Amlogic S905X2 CPU, Quad core, ARM Cortex-A53, 2.0GHz
    ● ARM Dvalin MP2 GPU
    ● 4GB DDR4 RAM + 32GB / 64GB EMMC ROM
    ● 2.4GHz + 5GHz dual band WiFi
    ● 1000Mbps Ethernet
    ● Support 4K ultra HD image display
    ● Support H.265 decoding
  • Specification
    Brand: Magicsee
    Model: N5 Max
    Type: TV Box
    GPU: ARM Dvalin MP2
    System: Android 8.1
    CPU: Amlogic S905X2
    Core: 2.0GHz,Cortex A53,Quad Core
    RAM: 4G
    RAM Type: DDR4
    Max. Extended Capacity: TF card up to 128GB (not included)

    Decoder Format: H.263,H.264,H.265,HD MPEG4
    Video format: 4K,H.264,H.265
    Audio format: AAC,APE,DDP,FLAC,HD,MP3,OGG,TrueHD,WAV
    Photo Format: BMP,GIF,HD JPEG,PNG,TIFF
    Support 5.1 Surround Sound Output: Yes

    5G WiFi: Yes
    Bluetooth: Bluetooth 4.1
    Power Supply: Charge Adapter
    Interface: AV,DC Power Port,HD,LAN,TF card,USB2.0
    Antenna: No
    Camera: Without
    Language: Multi-language
    DVD Support: No
    HDMI Version: 2.1
    Other Functions: 3D Games,3D Video,DLNA,ISO Files,Miracast,NTSC
    External Subtitle Supported: Yes
    HDMI Function: CEC,HDCP
    Power Consumption.: 2W
    RJ45 Port Speed: 1000Mbps

    System Bit: 64Bit
    System Activation: Yes

    Power Type: External Power Adapter Mode

    Remote Controller Battery: 2 x AAA Battery ( not included )

    Product weight: 0.2000 kg
    Package weight: 0.4000 kg
    Product size (L x W x H): 10.60 x 10.60 x 2.10 cm / 4.17 x 4.17 x 0.83 inches
    Package size (L x W x H): 19.50 x 11.50 x 6.00 cm / 7.68 x 4.53 x 2.36 inches
  • Package content
    1 x MAGICSEE N5 Max TV Box
    1 x Remote Control
    1 x HDMI Cable
    1 x Power Adapter
    1 x English Manual

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10


The MAGICSEE company, known to us for its hybrid TV box with built-in tuners DVB, has released a new set-top box called MAGICSEE N5 which has a well-balanced system configuration – the console works on the basis of the well-proven Amlogic S905X chip including a quad-core ARM Cortex-A53 processor and a five-core Mali 450 video accelerator, which provides support for playback of almost all known media formats including H.264, H.265 and VP9 decoding, HDR10. But today, I will introduce an upgraded version of it.

Getting some TV box for ridiculous money today is not really a problem today, but as the performance continues to increase, some bits are quite reluctant. It will tighten the modern 4K UHD resolution with HDR will bite a good portion of the power. That’s why it’s worth while to look at some of the more powerful TV box models, especially if they’re in a light-weight rebate, such as the MAGICSEE N5 Max at the Gearbest Mall.

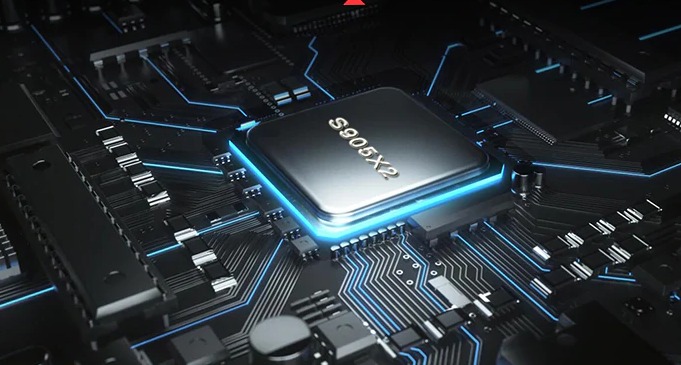

The MAGICSEE N5 Max boasts a very solid hardware package and will be an equal partner to your modern TV. It features, for example, a new powerful Amlogic S905X2 processor with Mali-G31MP2 graphics, 4 GB DDR4 RAM, 64 GB internal memory, Bluetooth 4.1, dual band Wi-Fi, Gigabit Ethernet, HDMI specification 2.1, USB 3.0 port or Dynamic HDR support. Of course, you can handle 4K resolution with the H.265 codec, so you do not have to worry about having enough juice for your living room.

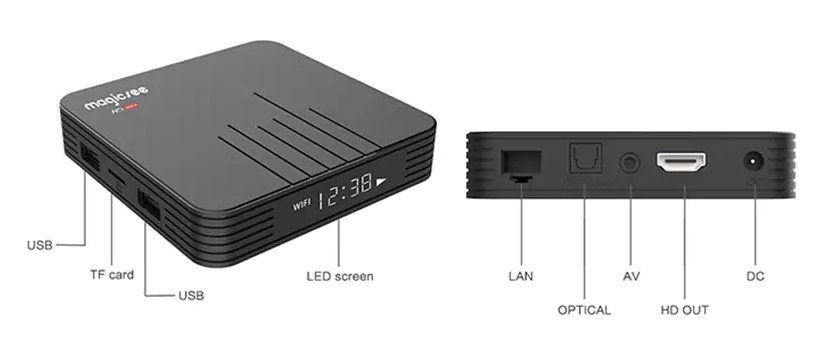

The N5 Max can be connected to the Internet thanks to the Wi-Fi network or the cable intended for this purpose. This allows users to connect their devices to their TVs to watch videos or play games on their TV screen for an unforgettable big-screen experience. It is also possible to edit documents and work on the big screen. The MAGICSEE N5 Max TV box has a LAN Ethernet port for the Internet cable. There is also a slot for the Micro SD card.

Nothing to say about the fluidity of navigation. The MAGICSEE N5 Max TV box is running under the Android 8.1 version, the user will feel perfectly at ease by opening a window or an application. Indeed, everything looks like on your Android smartphone, with the same essential buttons, colors and shortcuts by default.

As for the image quality, it is perfect. This is one of the biggest selection criteria for users, and with the box Magicsee N5 Max, they will not be disappointed. The images are in 4K, so with the UHD or Ultra High Definition format. With the S905X2 SoC, this camera delivers high quality images to give gamers an unparalleled gaming experience.
