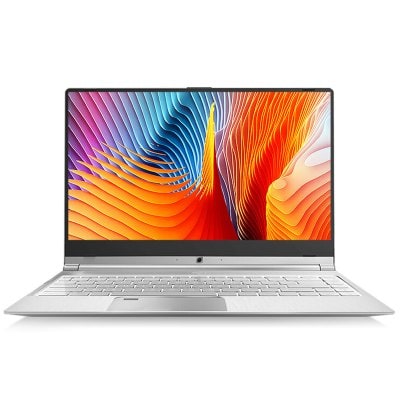

MECHREVO S1 Gaming Laptop

MECHREVO S1 Gaming Laptop
Category: Tablet PC
  • CPU: Intel i7-8550U
  • RAM+ROM: 8GB RAM + 250GB SSD
  • OS: Windows 10
  • Display: 14 inch FHD IPS Screen with 1920 x 1080 Resolution
  • Battery: 4760mAh / 12.3V
  • Camera: Front camera: 720P

MECHREVO S1 Gaming Laptop - Specs

Product Details

  • Features
    ●Microsoft Windows 10 OS
    ●14 inch FHD IPS Screen with 1920 x 1080 Resolution
    ●Intel Core i7-8550U Quad Core 1.8GHz, up to 4GHz
    ●NVIDIA GeForce MX150 1405MHz 2GB Dedicated Graphics
    ●8GB DDR4 RAM for Advanced Multitasking, up to 16GB
    ●256GB SSD Storage Capacity
    ●Front Camera for Photos and Face-to-face Chat
    ●HDMI Output
  • Specification
    Brand: MECHREVO
    Caching: 8MB
    Core: 1.8GHz,Quad Core
    CPU: Intel Core i7-8550U
    CPU Brand: Intel
    Graphics Capacity: 2G
    Graphics Chipset: NVIDIA GeForce MX150
    Graphics Type: Dedicated Graphics
    Model: S1
    OS: Windows 10
    Power Consumption: 15W
    Process Technology: 14nm
    Type: Gaming Laptop
    Threading: 8
    CPU Series: Core i7

    Hard Disk Memory: 256GB SSD
    Largest RAM Capacity: 16GB
    RAM: 8GB
    RAM Slot Quantity: One
    RAM Type: DDR4

    Bluetooth: 4.0
    Support Network: WiFi
    WIFI: 802.11 ac

    Display Ratio: 16:9
    Screen resolution: 1920 x 1080 (FHD)
    Screen size: 14 inch
    Screen type: 1080P FHD,IPS,LED

    Camera type: Single camera
    Front camera: 720P

    3.5mm Headphone Jack: Yes
    DC Jack: Yes
    HDMI: Yes
    Type-C: 2
    USB3.1 Type-A: 2

    AC adapter: 100-240V
    Battery Type: Li-polymer battery, 4760mAh / 12.3V
    Color: Silver
    Material of back cover: Metal
    MIC: Supported
    Speaker: Built-in Dual Speakers

    Backlight Type: Backlit keyboard,Monochromatic light

    Package size: 38.00 x 28.00 x 7.50 cm / 14.96 x 11.02 x 2.95 inches
    Package weight: 2.1600 kg
    Product size: 32.20 x 22.20 x 1.59 cm / 12.68 x 8.74 x 0.63 inches
    Product weight: 1.1800 kg
  • Package content
    English Manual : 1
    Notebook: 1
    Power Adapter: 1
    Power Cable: 1

Our Rating

The overall rating is based on review by our experts

9.2 4.6 1
  • Design 9 / 10
  • Display 9 / 10
  • Features 10 / 10
  • Battery 8 / 10
  • Performance 10 / 10

MECHREVO S1 Gaming Laptop

MECHREVO S1 Gaming Laptop

Since changing jobs, I have always wanted to change a thin and light notebook. Although I had an Alldocube iword 5X before, it was also very thin and beautiful, and it felt much more beautiful than the Apple notebook. However, its performance is too low, standard netbook configuration. Use it to write emails when you go out, and open more pages will become stuck.

Ok, don’t mention it. Last week I saw the MECHREVO S1 thin and light notebook, the performance is super powerful, take a closer look at the configuration, i7 8550U+8GB DDR4+256GB PCIE SSD+MX150 graphics card (full blood version), 72% NTSC color gamut 8-bit IPS screen, this configuration Only 4999 yuan, decisively buy it.

The shape design of the MECHREVO S1 is born out of the gaming laptop, and its style is rigid. Its shell is made of 7075 aluminum alloy and the surface is drawn with vertical strips. The design of the A side is very simple, and there is nothing other than the LOGO of MECHREVO.

The MECHREVO S1 in the state of the screen is very similar to the popular full-screen phone. However, after the bright screen, you can see the obvious border, but the border is extremely narrow, the left and right sides are about 6MM (the official introduction is 5.9MM, which cannot be confirmed by the accuracy of the tool, but it is almost the same).

The screen ratio of MECHREVO S1 is 81.4% (official data), which is placed in the mobile phone circle, and it is basically a full-fledged screen. Fortunately, the PC circle is more honest.

16.7 million color IPS screen, 1080P resolution, 72% color gamut (the official data does not indicate sRGB, or Adobe RGB, NTSC, I will verify later). The viewing angle and color reproduction of the IPS screen are better than the TN screen.

MECHREVO S1 can fully open the screen to 180 degrees, mainly for business meetings and sharing screen content with colleagues (business design).

MECHREVO S1 Designed the camera below the screen, this is to change the ultra-narrow effect of the top border. The advantage is that the screen looks more beautiful (three sides super narrow side); the disadvantage is that the camera has a low angle of view, the video will be a large nostril (can compare the self-photograph of Xiaomi MIX).

In general, MECHREVO S1 is a light and thin notebook worth buying, excellent performance i7 8550U + 8GB + m.2 PCI-E SSD 256GB + full blood version MX150; and its screen is super good, 8bit 72% NTSC color gamut IPS screen, the same price of the notebook, I have not found this quality screen.
