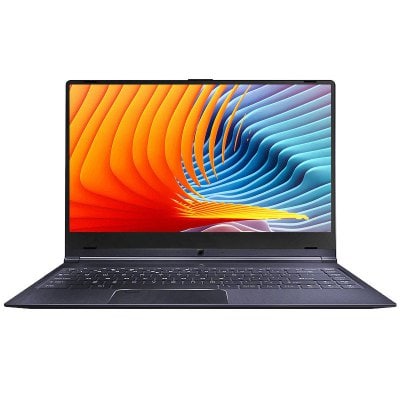

Mechrevo S1 – 02 Notebook

Mechrevo S1 – 02 Notebook
Brand: MECHREVO
Category: Tablet PC
  • CPU: Intel Core i5 8250U 1.6GHz, up to 3.4GHz
  • RAM+ROM: 8GB RAM + 256GB SSD
  • OS: Windows 10
  • Display: 14 inch FHD IPS Screen with 1920 x 1080 Resolution
  • Battery: 4730mAh / 12.3V Built-in Li-ion
  • Camera: 8.0MP + 13.0MP Camera

Mechrevo S1 – 02 Notebook - Price

Mechrevo S1 – 02 Notebook - Specs

Product Details

  • Features
    ● Windows 10 OS
    Offers more powerful performance, brings you more smooth and wonderful user experience
    ● Intel Core i5 8250U 1.6GHz, up to 3.4GHz
    Ultra-low-voltage platform and 1.6GHz, up to 3.4GHz processing provide maximum high-efficiency power
    ● Geforce MX150 2G, 1405MHz
    On-processor graphics with shared video memory provide high image quality for Internet use, basic photo editing and casual gaming
    ● 14.0 inch IPS FHD Screen with 1920 x 1080 Resolution
    Offers good experience for watching videos and browsing the Web
    ● 8GB DDR4 RAM for Advanced Multitasking
    Substantial high-bandwidth RAM to smoothly run your games, photos and video-editing applications
    ● 256GB SATA3 SSD Storage Capacity
    Provides room to store pictures, videos, music and more
    ● 8.0MP + 13.0MP Camera for Photos and Face-to-face Chat
    Allow you to capture memorable moments or chat with friends
    ● HDMI Output
    You can connect the device to high-definition monitor or projector
  • Specification
    Brand: MECHREVO
    Caching: 6MB
    Core: 1.6GHz,Quad Core
    CPU: Intel Core i5-8250U
    CPU Brand: Intel
    Graphics: Dedicated Graphics
    Graphics Capacity: 2G
    Graphics Chipset: NVIDIA GeForce MX150
    Graphics Type: Dedicated Graphics
    OS: Windows 10
    Power Consumption: 15W
    Process Technology: 14nm
    Type: Notebook
    Usage: Business,Office
    CPU Series: Intel Core

    Hard Disk Interface Type: SATA 3.0
    Hard Disk Memory: 256GB SSD
    Largest RAM Capacity: 16GB
    RAM: 8GB
    RAM Slot Quantity: One
    RAM Type: DDR4

    Bluetooth: 4.0
    LAN Card: No
    Support Network: WiFi
    WIFI: 802.11 ac
    WLAN Card: Yes

    Display Ratio: 16:9
    Screen resolution: 1920 x 1080 (FHD)
    Screen type: IPS

    Back camera: 13.0MP
    Camera type: Dual cameras (one front one back)
    Front camera: 720P

    3.5mm Headphone Jack: Yes
    Audio Jack: 3.5mm Earphone / Mic
    Card Reader Interface: Yes
    DC Jack: Yes
    HDMI: Yes
    Microphone jack: Yes
    Type-C: Yes
    USB Host: Yes

    Battery Type: 4730mAh / 12.3V Built-in Li-ion
    Charging Time.: 3 - 4 hours
    MIC: Supported
    Speaker: Built-in Dual Speakers

    MS Office format: Excel,PPT,Word
    Music format: MP3
    Picture format: BMP,GIF,JPEG,JPG,PNG
    Video format: MP4

    Languages: Windows OS is built-in Chinese and English, and other languages need to be downloaded by WiFi.

    Package size: 38.00 x 28.00 x 7.50 cm / 14.96 x 11.02 x 2.95 inches
    Package weight: 2.1600 kg
    Product size: 32.20 x 22.20 x 1.60 cm / 12.68 x 8.74 x 0.63 inches
    Product weight: 1.1800 kg
  • Package content
    English Manual : 1
    Mechrevo S1 - 02 Notebook: 1
    Power Adapter: 1
    Power Cable: 1

Our Rating

The overall rating is based on review by our experts

8.8 4.4 1
  • Design 9 / 10
  • Display 9 / 10
  • Features 9 / 10
  • Battery 8 / 10
  • Performance 9 / 10

Mechrevo S1 – 02 Notebook

The Mechrevo S1-02’s screen features a three-sided narrow bezel design with a border width of only 5.9mm and its camera moved to the bottom of the screen. In terms of screen configuration, the mechanical revolution S1 is equipped with a 14-inch, 72% NTSC color gamut, 178° viewing angle, and 1080p screen of the IPS panel. From these parameters, this screen is equivalent to the “sea view room” in the thin and light one. When using this screen to watch movies and do design work, the color reproduction is more accurate.

The Mechrevo S1-02 also has a good combination of configuration. The S1-02 I got was equipped with an Intel Core i5-8250U processor and MX150 2GB alone, with 8GB of DDR4 memory and 256GB PCIe SSD. What is the performance of such a configuration? We ran a few points through a series of test software to see how much this light and thin book is capable.

The Mechrevo S1-02 is powered by Intel’s new eight-generation Core low-voltage processor i5-8250U. This processor is designed with 4 cores and 8 threads. The third-level cache is 6MB, clocked at 1.6GHz and core frequency is 1.8GHz.

The Mechrevo S1-02 is equipped with a 256GB PCIe SSD. The specific protocol for the SSD is PCIe 3.0. Most of the SSDs currently supplied by OEMs use the SATA protocol. After the PCIe protocol, the solid-state transmission speed can be increased by one. More than double.

Through the AS SSD test, we can see that the sequential read speed of the SSD is 1154.26MB/s, the sequential read is 759.51MB/s, the 4K random read speed is 38.75MB/s, and the 4K random write is 87.55. MB/s. In general, the overall quality of this solid state drive is relatively strong, the speed of transferring files is very fast, and the speed of recalling and loading files is also good.

It is worth mentioning that the notebook is also very scalable. Its interface includes headphones, microphone two-in-one interface, display port, HDMI interface, two USB3.1 Type-c, two USB3.1 Type-a, one Kensington lock (security lock). In addition, the thin and light version adds a fingerprint recognition module to the touchpad to provide security for your computer.
