Category: TV Box
  • 1: CPU: Amlogic S905X2
  • 2: GPU: Mail-G31 MP2
  • 3: RAM: 2GB ROM: 16GB
  • 4: IR: Infra Remote control
  • 5: OS: Android 9.0
  • 6: Video decorder: Hardware decoders

MECOOL K5 - Price

MECOOL K5 - Specs

Product Details

  • Features
    CPU: Amlogic S905X2 Quad core ARM Cortex-A53 CPU
    GPU: Mail-G31 MP2 GPU
    RAM: 2GB ( 4GB optional )
    ROM: 16GB ( Other ROM capacity optional )
    WiFi: Built-in 2.4G/5G 2T2R WiFi with IEEE 802.11 b/g/n/ac
    IR: Infra Remote control
    LAN Ethernet: 10/100M
    DVB S2+T2: Support dual mode DVB T2+S2
  • Specification
    - VP9 Profile-2 up to 4Kx2K@60fps
    - H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
    - AVS2-P2 Profile up to 4Kx2K@60fps
    - H.264 AVC HP@L5.1 up to 4Kx2K@30fps
    - H.264 MVC up to 1080P@60fps
    - MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
    - WMV/VC-1 SP/MP/AP up to 1080P@60fps
    - AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
    - MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
    - MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
    - RealVideo 8/9/10 up to 1080P@60fps"
  • Package content
    1*Gift Box
    1*IR remote control
    1*HDTV Cable
    1*User Manual

Our Rating

The overall rating is based on review by our experts

7.8 3.9 1
  • Design 8 / 10
  • Features 8 / 10
  • Performance 8 / 10
  • Connectivity 7 / 10

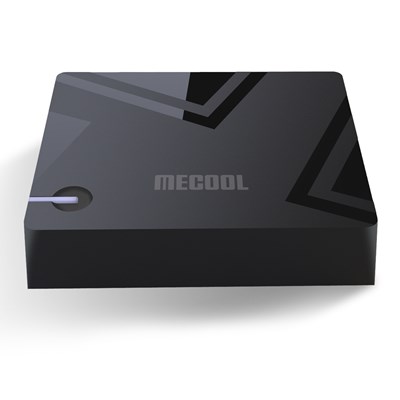

MECOOL New K5 Smart TV Box With Android 9.0 Amlogic S905X2

Aliexpress has an interesting new product on sale – a TV set-top box called Mecool K5, which is equipped with digital terrestrial (DTT) and satellite TV tuners and runs on the SoC Amlogic S905X3 platform. The Mecool K5 hybrid TV set-top box, in addition to a dual internal tuner for satellite and HD DTT, supports PVR recording via USB, and OScam, BISS and SoftCam, the same as the previous Mecool K7 model, which runs on the Amlogic S905X2 chip.

The new Mecool K5 TV set-top box includes the SoC AMlogic S905X3, a 12nm quad-core processor, which reaches speeds up to 1.9 GHz and contains a Mali-G31 MP2 graphics processor. This SoC has four ARM Cortex-A55 processor cores as well as an NPU for iA. Amlogic Video Engine 10 with support for HDR Dolby Vision, HDR10 +, HDR10 is used as the VPU. The novelty is available in versions with 2/4 GB of DDR3 RAM and 16/32 GB of eMMc data storage, which can be extended with a micro SD memory card.

Of the network connections, Mecool K5 has Wi-Fi AC 2×2 MiMo, Bluetooth 4.2 and an RJ-45 10/100 network connector. The following connectors are located on the housing: USB 2.0 port, another USB 3.0 port, SPDIF audio output, HDMI 2.1 video output, analogue audio/video output and inputs for the satellite antenna and DTT antenna. Operating system – Android 9.0.
