I feel that 2020 is the year that the AMD brand is going to explode, with many products using their processors, such as the PC side, where the 4800H has become a star. The 4800H has already become a star product. We also see products with AMD chips in MINI PCs, and there is a growing trend.
MINISFORUM is a specialist manufacturer of MINI PCs, and past products have often come with Inter processors, however, today I’m bringing you a special new product carrying the Ryzen 3 3300U.

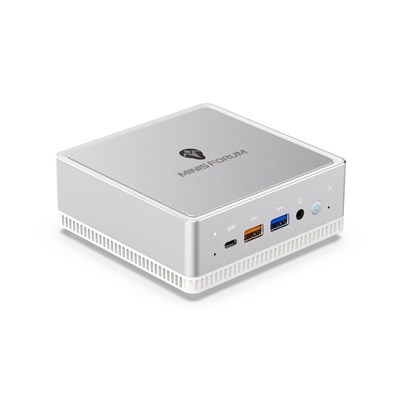

The MINISFORUM DeskMINI UM300 includes an AMD Ryzen 3 3300U APU manufactured in 12 nm and with a TDP of only 15W that guarantees its agile use under Windows with any office suite, for navigation or as a 4K multimedia player. If we want to use this mini PC for games better choose an option with another more powerful APU as a Ryzen 5 3500U. In addition to its multiple connectivity options in this mini PC we have interesting details such as its wireless connectivity WIFI 6 and its chassis with easy opening that includes a front microphone.
For RAM we have 16 GB of DDR4 RAM in Dual Channel in two SODIMM slots while for storage it includes a 256/512 GB capacity SSD M.2 2280 and a free internal bay for another 2.5 inch SATA3 drive.
Wireless connectivity is in the hands of an M.2 card incorporating the Intel WIFI 6 AX200 and Bluetooth 5.1. The connectors are multiple with a pair of Gigabit network ports, 2 USB 3.1, 2 USB 3.0, a USB Type-C port for data and video, 3.5 mm audio jack and HDMI 2.0 and DisplayPort video outputs.
Windows 10 Home
AMD Ryzen 3 3300U Quad Core 2.1GHz, up to 3.5GHz
Radeon Vega 6 Graphics GPU
16GB DDR4 RAM 8+8 Dual Channel
512GB M.2 2280 SATA SSD ROM

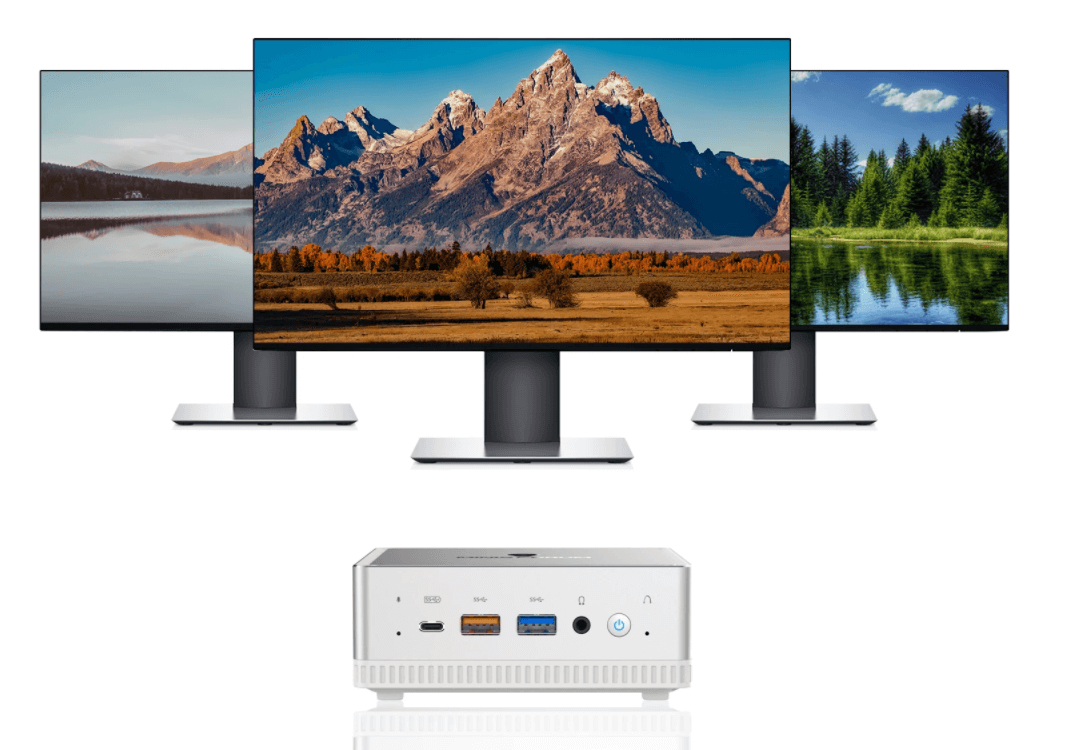

HDMI + DP Dual Output Expands Your Viewing Options
Type: Mini PC
System: Windows 10
Max. Extended Capacity: TF card up to 64GB (not included)
Maximum External Hard Drives Capacity: 2TB
5G WiFi: Yes
WIFI: 802.11 a/b/g/n/ac, Dual-band WiFi 2.4GHz/5GHz , Dual wireless antenna
Power Supply: Charge Adapter
Interface: 3.5mm Audio,DC 12V,HDMI,RJ45,SSD: PCIEx4 + SATA 3.0,TF card,Type-C,USB3.0
HDMI Version: 1.4
Other Functions: 3D Games,3D Video,DLNA,ISO Files,Miracast,NTSC,Others,PAL
External Subtitle Supported: Yes
HDMI Function: CEC,HDCP,HEC
Power Consumption.: 15W
RJ45 Port Speed: 1000Mbps
System Bit: 64Bit
WiFi Chip: AC3165
System Activation: Yes
Power Type: External Power Adapter Mode
Power Input Vol: 12V
Suggest Input: 12V 3A
Power Adapter Input: 100-240V / 50-60Hz
