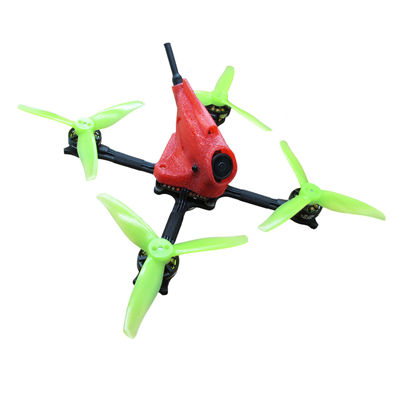

The Powerstick DVR is based on a fine 11 cm diagonal carbon structure “ inspired by KababFPV ” according to the manufacturer, for Amax 1303 to 4800KV brushless motors and three-bladed Gemfan 3016 propellers. The flight controller is a NameLess RC AIO412T, based on an F4 processor, with the microUSB connector slightly offset to facilitate connection. It is flashed with Betaflight, offers an active OSD, an ESC 4 in 1 of 12A DShot600 and a current sensor. The camera is a RunCam Nano2 700TVL, the image of which is broadcast by a NameLess RC D400VTX video transmitter. It is a 5.8 GHz model with a dipole antenna capable of transmitting at 0 mW (pitmode), 25 mW (the maximum authorized in France), 100 mW, 200 mW and up to 400 mW to go further there. where allowed.
Its other particularity, which gives its name to the Powerstick DVR, is that it is equipped with a video recorder (DVR) in 1280 x 720 pixels at 30 frames per second on a microSD card. It is not HD, but it allows to obtain images devoid of the usual reception noise with a DVR on the ground. The weight, without battery, is 60 grams. The electronics are compatible with 3S and 4S batteries. The NameLess RC PowerStick DVR Version can be delivered without a radio receiver, or with a DSM2 / DSMX, Flysky, FrSky, TBS Crossfire receiver. The price ? From $149.99 at Banggood Store.
110mm 3-4S FPV Racing Drone
NameLessRC D400VTX AIO412T
AMAX 1303 Motor
Item Name: PowerStick DVR Version
Prop: Gemfan 3016-3
Motor: AMAX 1303 4800kv
Weight: 60g (PNP Without Battery)
Camera: Runcam Nano2
Antenna: Copper pipe antenna
VTX: NameLessRC D400VTX
FC&ESC: NameLessRC AIO412T (2S-4S)
