Redmi AX5 WiFi 6 Router

Redmi AX5 WiFi 6 Router

Brand: Xiaomi
Category: Gadget
  • 1: WIFI 6
  • 2: Long OFDM Symbol Transmission Mechanism
  • 3: Advanced MU-MIMO technology
  • 4: Supports Beamforming technology
  • 5: Support IPv6

Our Rating

The overall rating is based on review by our experts

  • Design 8 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 9 / 10

The Redmi AX5 is probably the cheapest WiFi 6 Router to date

June 8, 2012 – Redmi’s first WiFi 6 router, the AX5, will debut tomorrow. The general manager of Xiaomi’s smart hardware division previewed the new router, saying that it’s a WiFi 6 hot router that lives up to expectations Truly into thousands of households.

Redmi AX5 WiFi 6 Router

Compared to Wi-Fi 5, Wi-Fi 6 mainly uses technologies such as OFDMA, MU-MIMO, MU- MIMO (Multi-User Multiple-In Multiple-Out) technology allows the router to communicate with multiple devices at the same time, rather than in sequence.

Redmi AX5 WiFi 6 Router

While MU-MIMO allows the router to communicate with four devices at a time, Wi-Fi 6 will allow communication with up to eight devices. Wi-Fi 6 also makes use of other technologies such as OFDMA (Orthogonal Frequency Division Multiple Access) and Transmit Beamforming, both of which Improved efficiency and network capacity, respectively.

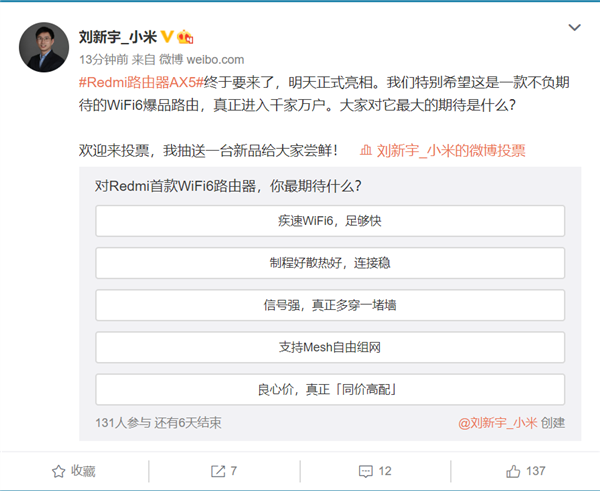

It’s worth noting that they also officially launched a poll to the general public: “What are you most looking forward to about Redmi’s first WiFi 6 router”?

These options mean that Redmi’s first WiFi 6 router will have the following features, specifically, including blistering WiFi 6, good process heat dissipation, strong signal, truly more than one through the wall, support for mesh free networking, conscience price (truly the same price high).

Redmi AX5 WiFi 6 Router

The Redmi AX5 WiFi 6 router will be positioned slightly lower than the Xiaomi AX1800 and will be priced even lower, making it the cheapest WiFi 6 router to buy.


Product Details

Features 1. IPQ6000 Quad Core A53 1.2GHz CPU
2. 4 Independent Signal Amplifiers
3. OFDMA Technology For Efficient Transmission
Specification Processor: IPQ6000 4-core A53 1.2GHz CPU
Network acceleration engine: single-core 1.5GHz NPU
ROM: 128MB
Memory: 256MB
2.4G Wi-Fi: 2 *2 (supports IEEE 802.11ax protocol up to the theoretical maximum rate of 574Mbps)
5G Wi-Fi: (Maximum support IEEE 802.11ax protocol, theoretical maximum rate up to 1201Mbps)
Product antenna: 4 external antennas
Product cooling: natural cooling
Machine interface: One 10/100/1000M adaptive WAN port (Auto MDI/MDIX)
Three 10/100/1000M adaptive LAN ports (Auto MDI/MDIX)
LED indicator: 2 (System indicator *1, Internet indicator *1)
System reset button: 1
Power input interface: 1
Protocol standards: IEEE 802.11a/b/g/b/ac/ax, IEEE 802.3/3u/3ab
Certification standard: GB/T9254-2008; GB4943.1-2011

Dual frequency: 2.4GHz and 5GHz
Wireless channel: 2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
5GHz Channel: 36,40,44,48,149,153,157,161,165
