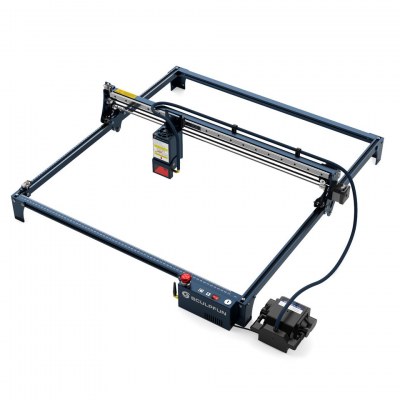

SCULPFUN S30 Ultra

PRICE

• SCULPFUN S30 Max $599.99
  View Offer

Most open-frame diode laser engravers top out at a 400×400mm workspace. That’s fine for keychains, coasters, and small signs. But when you’re building large wooden signage, cutting full acrylic panels, or running batch production jobs, that ceiling becomes a real constraint.

The SCULPFUN S30 Ultra removes that ceiling entirely. With a 590×595mm working area — 225% larger than standard 400×400mm machines — and the ability to expand to a massive 935×905mm with an optional XY extension kit, this is one of the most workspace-generous open-frame diode lasers in its class.

Available in 11W, 22W, and 33W configurations — with the 33W flagship delivering 33,000mW of cutting power — the S30 Ultra is built for makers who have outgrown smaller machines and need real production capability.

Massive 590×595mm Work Area — Expandable to 935×905mm

The S30 Ultra’s working area is its defining advantage. At 590×595mm — or a full 600×600mm on some configurations — it’s one of the largest workspaces available in an open-frame diode laser.

And with the optional XY extension kit, you can push that to a remarkable 935×905mm — all without changing the core frame structure.

Ultra-Fine 0.05–0.08mm Laser Spot for Photo-Quality Detail

Despite its raw power, the S30 Ultra doesn’t sacrifice precision. The laser spot size ranges from 0.05×0.05mm to 0.08×0.1mm depending on the configuration. As one reviewer put it: It reaches industry-standard engraving precision.

Automatic Air Assist — 5× Faster Cutting, Cleaner Results

The S30 Ultra’s air assist system is controlled intelligently by the 32-bit motherboard. It automatically activates for cutting and deactivates for engraving — no manual intervention required.

Modular Design: Upgrade the Laser, Keep the Frame

One of the S30 Ultra’s smartest design choices is its modular architecture. The 11W, 22W, and 33W models share the same power adapter, structure, and laser cable. This is a significant advantage over machines where power upgrades mean starting from scratch.

S30 Ultra vs. S40 Max: Which Should You Choose?

Choose the S30 Ultra if you need a large workspace with solid cutting power at a more accessible price point. Choose the S40 Max if you need maximum power (48W) and the absolute largest working area.

Summary

The SCULPFUN S30 Ultra is one of the most workspace-generous open-frame diode lasers in its class. It combines a massive 590×595mm working area — expandable to 935×905mm — with 33W of cutting power that handles 20mm wood and 15mm acrylic in a single pass. The 0.005mm precision linear rail, ultra-fine 0.05mm laser spot, and automatic air assist deliver professional-grade results.

Is it perfect? No. The open-frame design requires a dedicated workspace. There’s no camera for alignment. The focusing is manual. And the lack of an included enclosure means you’ll need to factor that into your setup.

But for small business owners, sign makers, woodworkers, and serious makers who need real cutting power and a large workspace — and who value the modular upgradability that lets you move from 11W to 33W without replacing the entire machine — the S30 Ultra offers a combination of performance, scalability, and value that is genuinely hard to beat.

SPECS
