SJCAM M20

SJCAM M20
Brand: SJCAM
Category: Cameras
  • 1: 2160P
  • 2: 4K 24fps, 2K 30fps, 1080P 60fps / 30fps
  • 3: 32G
  • 4: Unknow
  • 5: English
  • 6: IP65

SJCAM M20 - Video

SJCAM M20 - Specs

Product Details

  • Features
    Original SJCAM M20 2160P action camera
    16 MP IMX206 sensor
    Novatek 96660 chip
    G-sensor
    Motion detection
    166 degree adjustable FOV for wide, normal and narrow
    Built-in gyrometer, anti-shake
    Feature micro HDMI and micro USB as well as WiFi
    1.5 inch live view LCD display
    Video resolution: 4K 24fps, 2K 30fps, 1080P 60fps / 30fps, 720P 120fps / 60fps / 30fps, VGA 240fps
    Image resolution: 16M (4608 x 3456), 12M (4032 x 3024), 10M (3648 x 2736), 8M (3264 x 2448), 5M (2592 x 1944), 3M (2048 x 1536), 2MHD, VGA (640 x 480), 1.3M (1280 x 960)
    Battery: 3.8V 900mAh
    Charging time: 3 hours
    Working time: 65min (WiFi on) / 75min (WiFi off)
    M20 is a 2.5K action camera. 4K is supported via Interpolation.
  • Specification
    Brand: SJCAM
    Chipset: Novatek 96660
    Chipset Name: Novatek
    Features: Wireless
    Function: Loop-cycle Recording,Remote Control,WDR
    Model: M20
    Type: Sports Camera
    Type of Camera: 2160P

    Class Rating Requirements: Class 10 or Above
    Max External Card Supported: TF 128G (not included)

    Screen resolution: 320x240
    Screen size: 1.5inch
    Screen type: LCD

    Battery Capacity (mAh): 900mAh
    Battery Type: Removable
    Capacity: 900mAh
    Charge way: USB charge by PC
    Power Supply: 5V 1A
    Standby time: 2h
    Working Time: 65min (WiFi on) / 75min (WiFi off)

    ISO: Auto,ISO100,ISO1600,ISO200,ISO400,ISO800
    Wide Angle: 166 degree wide angle lens

    Decode Format: H.264
    Exposure Compensation: +1,+1/3,+2,+4/3,+5/3,-1,-1/3,-2,-2/3,-4/3,-5/3,0,2/3
    Video format: MOV,MP4
    Video Output: HDMI
    Video Resolution: 1080P (1920 x 1080),2K(2560 x 1440)30fps,4K (2880 x 2160),720P (1280 x 720),VGA (640 x 480)
    Video System: NTSC,PAL
    White Balance Mode: Auto,Cloudy,Daylight,Fluorescent,Tungsten

    Interface Type: Micro HDMI,Micro USB,TF Card Slot
    Language: Cesky,Danish,Deutsch,English,French,Hungarian,Italian,Japanese,Korean,Polski,Portuguese,Russian,Simplified Chinese,Slovak,Spanish,Traditional Chinese,Turkish
    Loop-cycle Recording : Yes
    Loop-cycle Recording Time: 10min,3min,5min,OFF
    WDR: Yes
    WIFI: Yes

    Frequency: 50Hz,60Hz

    Package size (L x W x H): 27.00 x 14.90 x 8.30 cm / 10.63 x 5.87 x 3.27 inches
    Package weight: 0.6540 kg
    Product size (L x W x H): 5.40 x 4.00 x 2.90 cm / 2.13 x 1.57 x 1.14 inches
    Product weight: 0.0540 kg
  • Package content

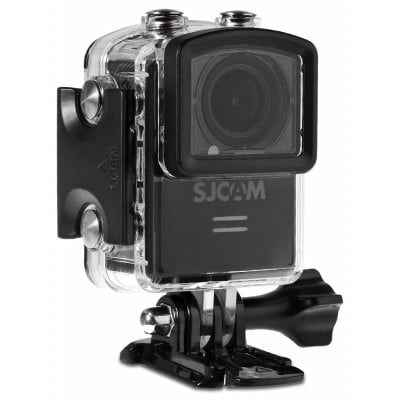

    1 x Original SJCAM M20 2160P Action Camera + Waterproof Case + Base Mount + Long Screw
    1 x Quick Release Buckle + Screw
    2 x Curved Adhesive Mount
    2 x Flat Adhesive Mount
    1 x Short Connector + Short Screw
    1 x Short Connector
    1 x Long Connector + Long Screw
    1 x Backpack Clip Mount Shell
    1 x USB Cable (0.9m Length)
    1 x Cleaning Cloth
    2 x SJCAM Sticker
    1 x User Manual (English / German / Russian / Traditional Chinese)

Our Rating

The overall rating is based on review by our experts

8.8 4.4 1
  • Design 9 / 10
  • Camera 10 / 10
  • Display 8 / 10
  • Features 9 / 10
  • Performance 8 / 10

SJCAM M20 WiFi Action Camera Sport DV Recorder

SJCAM is a well known brand for sports lovers with models like the SJ5000X that could face the GoPro proposals, with a very similar image quality and functions without forgetting the really competitive price. One of the most copied brands and that every few months bring us new products like today, the SJCAM M20. You will not find a sports camera with 4K recording so complete and also very cheap.

SJCAM M20

It seems that SJCAM wants to dissociate itself from those qualifications such as ‘the copy of the GoPro ‘, betting on a new design that departs from previous versions of the brand. To begin, we leave behind the ‘horizontal’ model to bet on a repositioning of all the elements in ‘vertical’. With the previous version of the range, the M10 , we already had a very original cube design that other manufacturers have used.

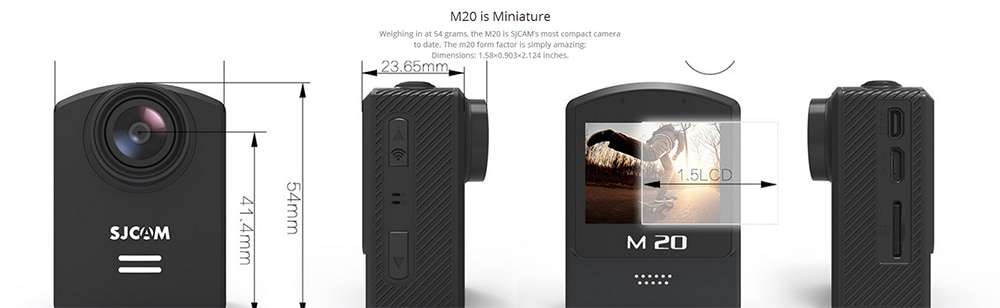

The SJCAM M20 presents somewhat atypical measurements for what we are used to by choosing its design, 54 x 40 x 23.65 mm and a weight of 54 grams (39 grams without the battery). Better figures than for example the SJ5000X Elite with 74 grams or the M10 of 64 grams. The SJCAM M20 is smaller and lighter than the SJ4000 and SJ5000 range, which makes it ideal for placing it in drones or radio controlled cars.

SJCAM M20

The new design has not prevented to integrate a 1.5-inch LCD screen to see the image in real time as well as consult our contents or navigate between the different configuration options, something that models like the Xiaomi Yi do not incorporate having to use a tablet or smartphone. As for buttons, we have the traditional on, capture, address – volume and WiFi; Notification LED, speaker and microphone, not forgetting connections like the microUSB charging, microHDMI and microSD card slot up to 32 GB. The SJCAM M20 is available in 7 colors, made of plastic pleasant to the touch and with slots on the sides to improve grip.

Use for drones. If you are passionate about drone flight , I am sure that more than once you would have liked to record your flights but the weight of certain cameras completely prevents it. The SJCAM M20 is one of the lightest cameras on the market, with its weight of 54 grams is far below the GoPro Hero 4 with its 84 grams. A lower weight means more flight autonomy of your drone, a really important factor. Autonomy of up to 80 minutes for your recordings.

SJCAM M20

Wrist control Optionally, we can acquire a wrist remote control for our SJCAM M20 integrating the main functions of the camera through different buttons. This controller is splash proof, connected via Bluetooth with the camera and is one of the main novelties of the camera. A selfie stick with the same type of controller on the handle and Bluetooth connectivity has also gone on sale. A very interesting accessory that goes around 10 – 15 euros for the bracelet and 20 euros for the suit.

Dashcam. In Gizlogic we’ve already talked about dashcam, these little devices that capture everything that happens on the road and that many videos are leaving on the network. Attach the camera to the dashboard of your vehicle and do not worry about its operation thanks to the ‘car mode’, the camera will turn on at the same time as our vehicle. In addition we will not have to worry about the autonomy of the 900 mAh battery, since we can record while charging the battery.
