WANHAO D12

WANHAO D12

Brand: Other
Category: 3D Printer
  • 1: PLA Printer, Entry Level Printer. Fully Assembled
  • 2: CURA, Repetier Host, Simplify 3D
  • 3: MK12 Single/ Double together
  • 4: Filament Diameter: 1.75mm
  • 5: Max Printing Speed: 150mm/s

Our Rating

The overall rating is based on review by our experts

8.3
  • Design 8 / 10
  • Features 9 / 10
  • Connectivity 8 / 10
  • Performance 8 / 10

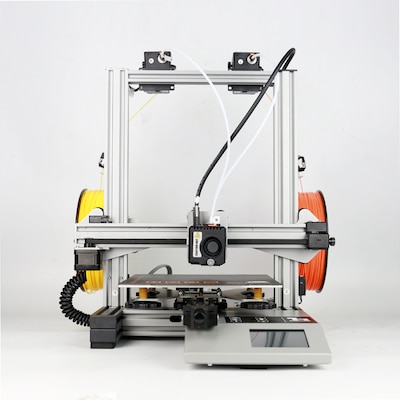

WANHAO D12 230 / 300 new type 3d Printer

Wanhao D12 300 is the new big 3D printer for big tasks. The large construction area and double extruder, make the Wanhao D12 300 a multifunctional desktop device. The updated printer design will provide stable and reliable printing of large models with one or two colors or complex products with supports.

The heating temperature of the extruder makes it compatible with all plastics with a melting point of up to 260°C. The high-torque, 360° rotatable yarn feed system ensures high quality printed models. For greater precision, the Wanhao D12 230 features an X-axis elastic strap adjustment. The flexible printing platform makes it easy to separate finished models, and the centimeter scale sticker allows you to determine the exact size of the model at the beginning of printing.

The Wanhao D12 230 features a new color 5-inch touch screen display, with quick access to all major settings and a model preview function. The new display user interface and the ability to connect to the printer via Wi-Fi makes work with the device fast and convenient.

The thread sensor will tell you if a thread has run out or broken using the light indicator and notification on the display. The print restart function allows you to continue working after the cause of the print stop has been removed, as well as after a power failure.

Quiet and reliable TMC2209 drivers are installed. Manual calibration of the platform for greater convenience and accuracy through the use of enlarged adjustment screws.

SPECS

Product Details

Features 1. Reliable extruder with high torque.
2. 360° filament cooling system.
3. Flexible steel platform for easy separation of finished models with magnetic sticker with ruler.
4. Color 5 inch touch screen display with new interface, access to all basic settings and preview function.
5. Wireless Wi-Fi connectivity for more efficient print management.
6. Filament sensor with universal hinge, will report the end or break of the thread.
7. Enlarged screws for more convenient calibration
8. Adjustable belt tensioners on X and Y axes
9. Silent printing is ensured by a quiet fan, motor and belt.
10. Large Z-axis nuts for more stable and quality printing of large models.
11. High precision aluminum coupling provides additional smoothness and precision.
12. Reinforced Z-axis
Specification Primary Attributes of the Technology: PLA Printer, Entry Level Printer. Fully Assembled.
Software: CURA, Repetier Host, Simplify 3D
Extruder System: MK12 Single/ Double together
Material Support:PLA, PETG, any filaments melt =<260 C
Max Printable Area: 230*230*250mm
Filament Diameter: 1.75mm
Max Printing Speed: 150mm/s
Case Material: Aluminum Case
With Insulated Cover: Insulated tent available, to be purchased separated.
Extruder Quantity: 1 or 2
Accuracy: Motor Accuracy
Net Weight(kg): 8.56kg
Gross Weight(kg): 11kg
Bed Leveling: 5 points manual leveling
Machine size(cm): 33*52*50cm
Packing size(cm): 53.5*48*27.5cm
Plateform Holder: Steel Frame Holder
Rail Locking System: Steel Bolt Locking Frame
Layer Thickness: 100 micron- 400 micron
Platform: Aluminium Platform w/Heating
Resume Printing: Can resume printing after power failure
LCD Display: English/Chinese/ Can be customized for any language
Power Supply Unit: Inside 110 AND 250V(optional), 50/60Hz, 4.0A (input), and takes standard IEC cable
Typical Application:
•A perfect printer for educators who intend to use the printers in technical educatioin.
•Great printer for DIY hobbist.
