Xiaomi Ecosystem WEMAX L1668FCF

Xiaomi Ecosystem WEMAX L1668FCF (A300) 4K Ultra Short Throw Laser Projector TV Home Theater

Recently, laser projectors have become more and more interesting. With the in-depth layout of traditional home appliance giants and Internet upstarts, new products for various laser TVs are emerging. As a pioneer in the industry, the WEMAX L1668FCF (A300) has also undergone a breakthrough light source technology upgrade.

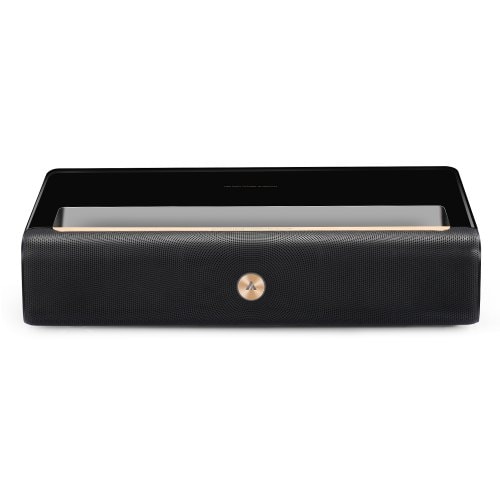

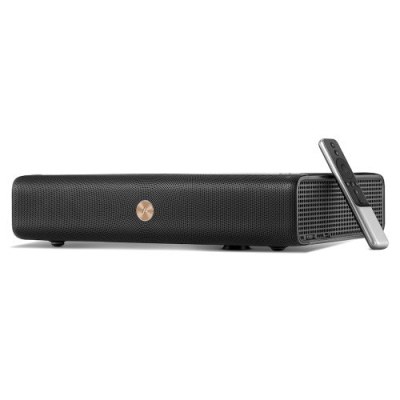

The size of the WEMAX L1668FCF is similar to that of a 15-inch notebook. It uses obsidian black as the main color, and the outer casing is made of sandblasted PC material. The corners are rounded, and the stable gas is in line with the aesthetics of the public.

Its top has a conventional groove design, and the “WEMAX” logo is placed symmetrical with the projection lens. There is also a more implicitly designed power indicator on the center axis. The WEMAX L1668FCF laser TV has only one power cord, plug it in and turn it on directly, or the remote control switch, the indicator light shows the current power-on state.

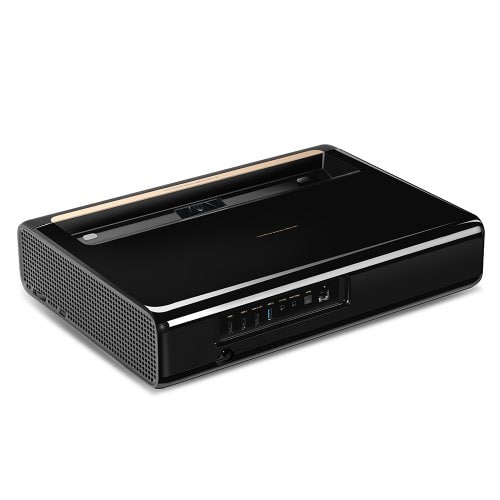

The terminal interface on the back is integrated in one area, from left to right, HDMI input1, HDMI input2, HDMI 3ARC sound return terminal, USB3.0 interface, Audio Output audio output terminal, AV Input, S/PDIF optical digital audio signal output Terminal, Ethernet. At the bottom is the power outlet. The interface is very complete, the game controller, speakers and so on can be connected.

WEMAX L1668FCF Laser TV has the same simple UI operating system as Xiaomi TV. It has the same massive video resources and opens up the freedom of third-party application installation. The key is that there is no boot advertisement. Although the technology of laser TV is novel, the use is also to see the content. In general, the built-in MIUI system and content can be used without any pressure for daily use.

The WEMAX L1668FCF 4K Ultra Short Throw Laser Projector is equipped with a 0.47 inch DMD chip and the light source core comes from the new third-generation ALPD®. ALPD® uses advanced laser display technology to overcome the shortcomings of previous laser speckle and green light inefficiencies. The color brightness is greatly improved, the proportion of red light is as high as 16.8%, the center contrast of the theater level is 4000:1, and the center brightness is 180nit.

By the way, the contrast and color expression were tested in a dark environment. The center contrast of the WEMAX L1668FCF laser TV is 4000:1, this time the technology has increased the proportion of red light by 16.8%, and the output resolution is 1080P. It uses 80% of the mainstream resolution on the market and supports 4K and HDR decoding. The grayscale transition effect is OK, and the upper left corner is slightly weaker. In terms of color, the solid color is relatively transparent, the color gamut is wide, and the transition color is complete.

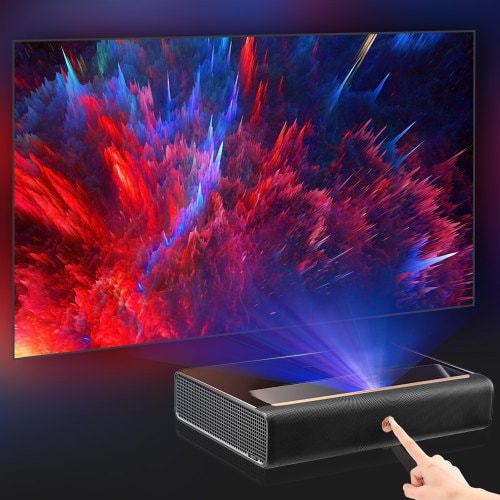

WEMAX L1668FCF adopts 18.08mm large depth of field ultra-short-focus lens with a transmittance of 0.233:1. It can get a 100-inch large screen effect from a wall of 25 cm. It can be placed on a TV cabinet like a TV, which is much more convenient than traditional telephoto projection.

With the advent of the big screen era, the advantages of the 4K Ultra Short Throw Laser Projector will become more and more obvious. If you want to see the true content of the laser TV, and whether it is entangled with other brands, whether the light source is qualified or not, it is better to start directly with WEMAX Home Theater.
