Brand: ACEPC
Category: Mini PC
  • 1: Intel i3-7200U
  • 2: Windows 10
  • 3: WIFI: 2.4G, 5G dual band
  • 4: 2.4GHz + 5GHz dual band WiFi
  • 5: USB3.0 x 4

Our Rating

The overall rating is based on review by our experts

  • Design 9 / 10
  • Features 9 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

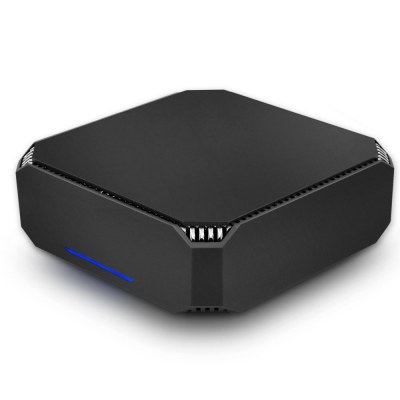

ACEPC CK2 Intel i3-7200U 5G WIFI Mini PC

ACEPC presented a new ACEPC CK2 mini PC that is equipped with Intel “i” series processor. Its performance is stronger than Gemini Lake

The most powerful versions of ACEPC CK2 is equipped with an Intel i3-7200U processor, supported by a maximum of 6GB of volatile memory type DDR4 at 2400Mhz. The internal storage is entrusted, unfortunately, to a memory type eMMC up to 32GB, but both models allow you to insert an external module SSD or HDD, up to a maximum of 2TB.

ACEPC CK2 has a slightly more compact size and inside there is a small fan to dissipate heat. Also connectivity side offer the same things, there are 2 USB 2.0 type-A ports, 2 USB 3.0 type-A ports, 1 LAN port and 2 HDMI ports.


Product Details

Features CPU: Intel® Core™ 7th Generation i3-7200U
OS: Support Windows 10 ( not installed)
WIFI: 2.4G, 5G dual band
bluetooth: 4.0
USB3.0 x 4
Support RAM DIY DDR4L-2133 SO-DIMM slot,max to 16GB Support 1.2V DDR4L 2133 MHz
Specification CPU: Intel® Core™ 7th Generation i3-7200U
Memory: DDR4L-2133 SO-DIMM slot,max to 16GB
Support 1.2V DDR4L 2133 MHz
Storage Interface
1 x SATAIII 6Gb/s SSD/HDD(7 thickness),
1 x M.2 SSD (support SATA III/NVME SSD )
Onboard Graphics Intel® HD Graphics620
1 x HD 1.4
LAN x 1 Built-in Realtek RTL8111F LAN chip
Audio: Realtek ALC269Q-VC3
Wireless: Dual band WIFI support 2.4GB/5.0GB,(m.2 slot)
Front I/O port 4 x USB 3.0
2 x USB 2.0
Back I/O port DC_IN x 1
HD(1.4a) x 1
VGA x 1
DP x 1
RJ45 x 1
MIC x 1
Audio x 1

Power Supply: 12V/4A AC adapter
Operating System: WIN 10 (64 bits)/Ubuntu/win7
VESA: Bracket included and screws
