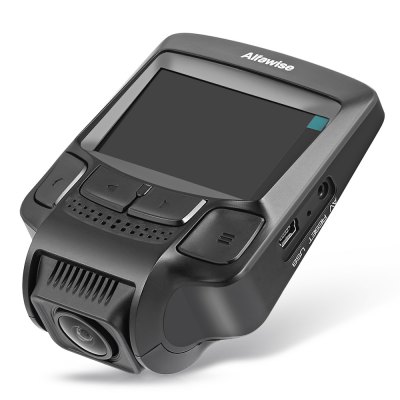

Alfawise MB05 Car DVR

Alfawise MB05 Car DVR
Brand: Alfawise
Category: Gadget
  • 1: 1080P 30fps full HD
  • 2: Wide dynamic range
  • 3: 170-degree ultra wide-angle lens
  • 4: Loop recording
  • 5: APP: LuckyCam
  • 6: Image Sensor: Sony IMX323

Alfawise MB05 Car DVR - Video

Alfawise MB05 Car DVR - Specs

Product Details

  • Features
    ●1080P 30fps full HD, with Sony Exmor IMX323 image sensor
    ●Wide dynamic range ( WDR ) for optimal performance in any lighting situation by adjusting the exposure
    ●170-degree ultra wide-angle lens to cover over 4 lanes and avoid dead zone
    ●Loop recording, 3 / 5 / 10 minutes per clip. Up to 32GB micro SD card supported ( not included )
    ●Accident auto-detection with built-in G-sensor to save the current video as important footage
    ●Motion detectionandparking monitor for the safety of your automobile
    ●Support to use it with the APP: LuckyCam

    Requirements for Micro SD Card:
    ● Class 10 or higher Micro SD memory card. Supported memory sizes ranging from 16GB to 32GB
  • Specification
    Brand: Alfawise
    Model: MB05
    Type: HD Car DVR Recorder
    Chipset: Novatek 96658
    Image Sensor: Sony IMX323
    Features: Full HD
    Function: Auto-Power On,G-sensor,Loop-cycle Recording,Motion Detection

    Internal memory: 1GB
    Max External Card Supported: TF 32G (not included)
    Class Rating Requirements: Class 10 or Above

    Screen type: LCD

    Battery Type: Built-in
    Battery Capacity (mAh): 160mAh
    Charge way: Car charger
    Working Time: 0.5 hour
    Working Voltage: 12V ( 1.0A )

    Wide Angle: 170°
    Lens Size: 2.1mm
    Camera Pixel : 2MP
    Screen size: 2.4inch
    Aperture Range : f2.0

    Video format: MOV
    Video Resolution: 1080P (1920 x 1080),720P (1080 x 720)
    Video System: NTSC,PAL
    Video Frame Rate: 30fps / 60fps
    Image Format : JPEG
    Audio System: No

    WIFI: Yes
    WiFi Function: Image Transmission,Remote Control,Settings
    Waterproof: No
    Waterproof Rating : /
    Loop-cycle Recording : Yes
    Loop-cycle Recording Time: 10min,3min,5min
    Motion Detection: Yes
    Motion Detection Distance: 1.5m
    Night vision : No
    Night Vision Distance: 0
    GPS: No
    G-sensor: Yes
    WDR: Yes
    Auto-Power On : Yes
    Anti-shake: No
    Parking Monitoring: No

    Operating Temp.: -20 to 70 Deg.C
    Operating RH : 15 to 60 percent
    Power Cable Length: 3.5m

    Product weight: 0.0727 kg
    Package weight: 0.3350 kg
    Product size (L x W x H): 9.10 x 6.90 x 3.70 cm / 3.58 x 2.72 x 1.46 inches
    Package size (L x W x H): 13.00 x 100.00 x 9.50 cm / 5.12 x 39.37 x 3.74 inches
  • Package content
    1 x DVR
    1 x Car Charger
    1 x USB Cable
    1 x Double-sided tape
    2 x Transparent sticker
    1 x Multi-language manual

Our Rating

The overall rating is based on review by our experts

9.0 4.5 1
  • Design 9 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 9 / 10

Alfawise MB05 F1.4 Car DVR Dash Camera

One of the weakest places of most DVRs is work in the dark and in low light conditions. After all, the task of the DVR is not only the shooting of the traffic situation, but also the opportunity to view the video numbers of cars, as well as the faces of possible participants in the traffic accident.

The Alfawise MB05 Car DVR perfectly copes with any conditions of shooting, demonstrating excellent quality of shooting in conditions of shortage of light. Shooting in the dark provides a high-aperture lens and maximum open aperture f/1.8. The high-end SONY IMX323 CMOS sensor creates a bright and distinctive image even at night.

Alfawise MB05 Car DVR

1080P& 170° FOV. Catch Everything In Sight Clearly

With Sony Exmor IMX323 image sensor, the Alfawise MB05 Car camera features wide dynamo range – it is sensitive to the light and presents abundant details in vivid colors. Never mies anything on the 4 lanes.

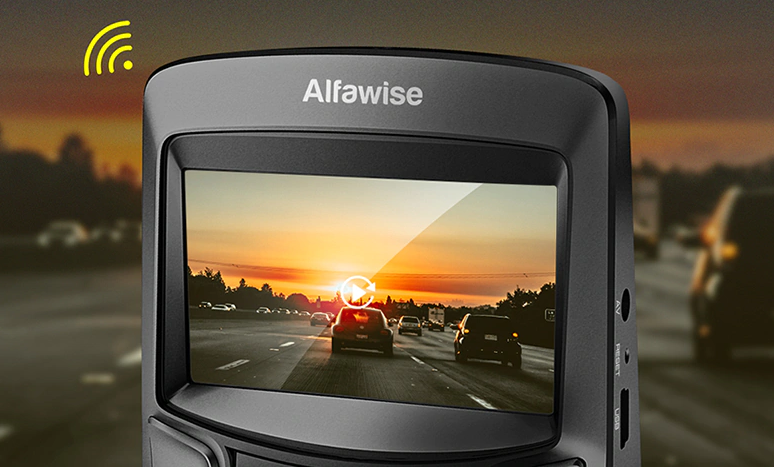

Control and Replay Easily With 2.4″ IPS Display & Wifi

The large display facilitates activating functions, configuring the settings, adjusting the microphone / Volume, reviewing photos and videos. Alfawise MB05 also has built-in WIFI for looking at what it captures Via Lucycam APP.

Save & Lock The Video In Case of Accidents

With built-in Gsensor, the video recorded during emergency braking will be saved and loeked. This will save as an effective evident, indicating who is to be blamed for.

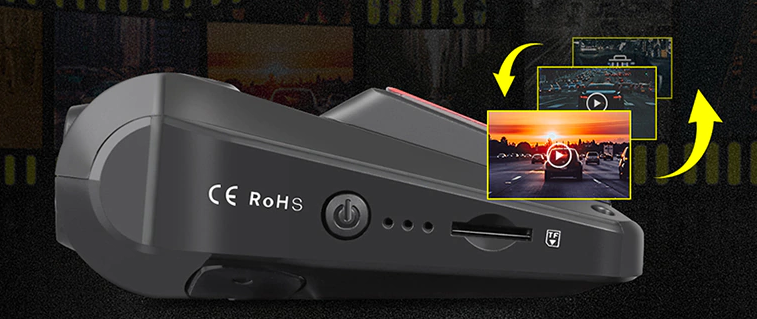

Loop Recording – No Memory Shortage

Each video clip lasts for 3 / 5 / 10 minutes and arrange in chronological order. Alfawise MB05 suppors up to 32GB TF card and the old videos will be automatically replaced by the old ones.

Due to the small size, the Alfawise Car Camera recorder is easily installed behind the rearview mirror and does not close the driver’s view. It is installed on the windshield with an electrostatic patch, while removing as easily, leaving no traces. The device behaves well at elevated temperatures, controlling the overheating of internal components, and due to the hermetic attachment of the patch-sucker to the glass, it does not fall off in the heat.
