Alfawise U30S

Alfawise U30S
Brand: Alfawise
Category: 3D Printer
  • 1: 3.5 inch color screen
  • 2: Material rack design
  • 3: Platform board: Aluminum Sheet
  • 4: Nozzle diameter: 0.4mm
  • 5: LCD Screen: Yes
  • 6: Voltage: 115 / 230V

Alfawise U30S - Specs

Product Details

  • Features
    1. The demoulding adopts PC+spring steel plate, the demoulding is more changed
    2. 3.5 inch color screen, better operation experience
    3. Material rack design is more user-friendly, reducing the risk of material breakage
    4. The method of total cable arrangement is more concise and convenient for customer maintenance
    5. The hot bed adopts welding + pressing device, which is more reliable
  • Specification
    Material: Aluminium Extrusion
    Platform board: Aluminum Sheet
    Nozzle quantity: Single
    Nozzle diameter: 0.4mm
    Nozzle temperature: 0 to 260 degree
    Product forming size: 220 x 220 X 250 mm
    Layer thickness: 0.1-0.4mm
    Memory card offline print: TF card
    LCD Screen: Yes
    Print speed: Up to 150 mm/s recommended 60mm/s
    Supporting material: ABS, PLA, Wood
    Model supporting function: Yes
    XY-axis positioning accuracy: 0.0125mm
    Z-axis positioning accuracy: 0.0025mm
    Voltage: 115 / 230V
    Power Output: 115 VAC / 230 VAC, 50/60 Hz, Power Output: 24 VDC-15 A
    Host computer software: Cura, Repetier-Host, Simplify3D
    Connector Type: SD card, USB
  • Package content
    1 x Alfawise U30S 3D Printer
    1 x English Manual

Our Rating

The overall rating is based on review by our experts

8.8 4.4 1
  • Design 9 / 10
  • Features 8 / 10
  • Connectivity 9 / 10
  • Performance 9 / 10

Alfawise U30S 3.5-inch Color Screen 3D Printer Upgrade Edition

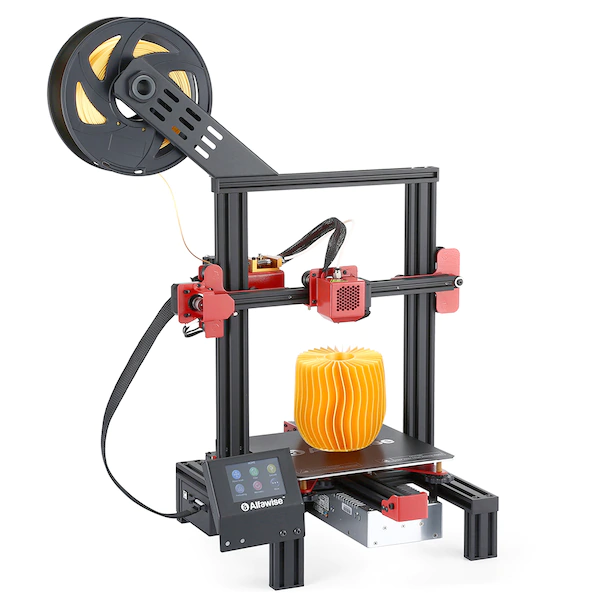

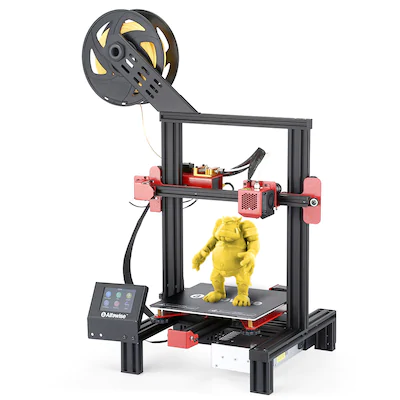

The Alfawise U30S 3D printer comes on the market as a follow-up to the famous Alfawise U30, which was strongly inspired by the Creality CR-10S and its 220 x 220 x 250mm volume. The Chinese manufacturer does not revolutionize its range of 3D printers and remains on the same architecture as the U30 but by improving some interesting points and by reducing the printing volume. The feed passes under the tray to be integrated into the aluminium frame, Alfawise provides a real on top reel support compatible with small and large filament reels.

A single extruder to print layers of 100 microns minimum with a 0.4mm nozzle and 1.75mm diameter filament. Sensors allow a pause in the printing job in case of power failure or if the filament spool is empty. Filament type PLA, ABS, PVA, PP, TPU and even wood for a maximum extrusion temperature of 250°C and a bed that heats up to 100°C.

An 8GB microSD card is supplied with the U30S printer, which contains an assembly manual in English and a gcode file to test the printer. This SD card can therefore be used to print autonomously on the Alfawise, actions carried out from the touch screen of 2.8″ which equips the U30. A USB port also allows the printer to be connected to a computer to control it from Cura, Simplify3D or other software.

If we can think that the U30S is an evolution of the U30, it should rather be considered as a scale model since the printing volume falls to 220 x 220 x 250 mm. Sufficient for most cases, it also allows to display a more aggressive price for this 3D DIY printer which can be set up in 1 hour. By its characteristics, the U30S of Aflawise places itself in competition with the Ender 3 of Creality.

The Alfawise U30S is priced around $239.99, $80 less than the U20, with the main difference being the printing volume.

With the Alfawise U30S, we can see that the Chinese manufacturer has taken into account the comments of the community (except for the funny idea of having placed the micro SD card reader at the back of the machine).
