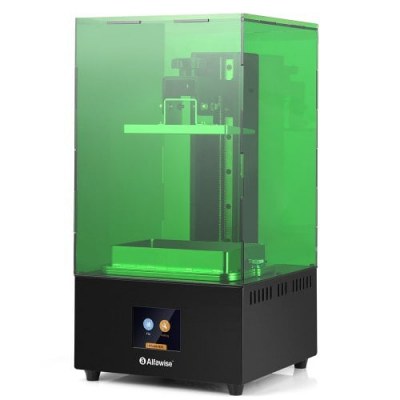

Alfawise W20

Alfawise W20
Brand: Alfawise
Category: 3D Printer
  • Feature 1: Layer thickness: 0.025 to 0.1 mm
  • Feature 2: Product forming size: 120*68*170mm
  • Feature 3: LCD Screen: Yes
  • Feature 4: File format: STL
  • Feature 5: Working Power: 12V DC, 6A
  • Feature 6: Supporting Paper Size: no

Alfawise W20 - Video

Alfawise W20 - Price

Alfawise W20 - Specs

Product Details

  • Features
    Cost-effective professional-grade LCD light curing 3D printer
    2.8-inch full-color touch screen, excellent interface, easy to select file printing and view the printing process

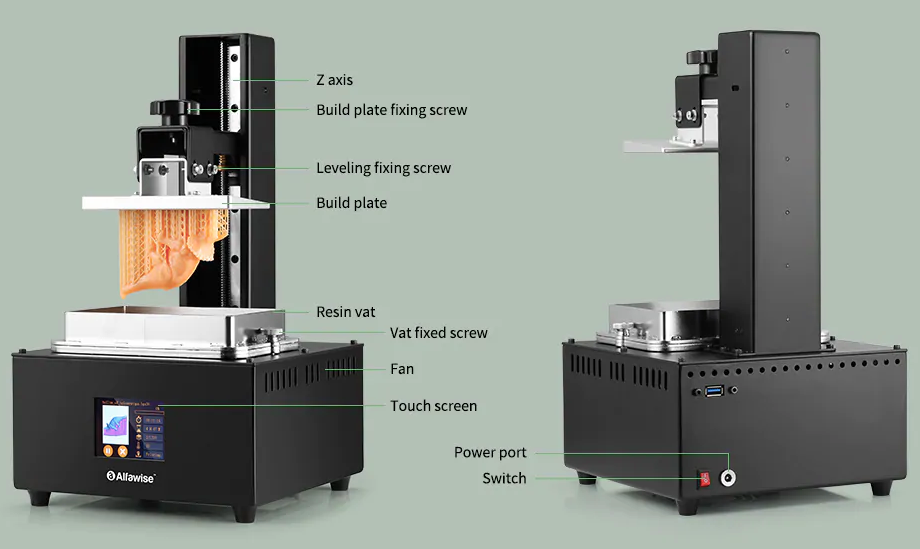

    Simply adjust the 4 screws for easy platform leveling
    Professional-grade PC slicer software, hundreds of megabytes of model file slicing only takes tens of seconds
  • Specification
    Brand: Alfawise
    Model: W20
    Type: Complete Machine
    Material (Frames): Acrylic plate,Sheet-metal structure
    Platform board: Aluminum Base
    Engraving Area: no
    Engraving Accuracy: no
    Product forming size: 120*68*170mm
    Layer thickness: 0.025 to 0.1 mm
    LCD Screen: Yes
    Print speed: 30mm/h
    Supporting material: Resin
    Language: English
    File format: STL
    Model supporting function: Yes
    XY-axis positioning accuracy: 0.047 mm
    Z-axis positioning accuracy: 0.01mm
    Voltage: 100V/240V
    Working Power: 12V DC, 6A
    Packing Type: Assembled packing
    Supporting Paper Size: no
    System support: Windows7/8/10, 64-bit; MAC OS
    Laser Lifetime: no
    Laser Wavelength(nm): no
    Voltage Range: no
    Current (mA): no
    Connector Type: U disk
    Certificate: CE,FCC,RoHs
  • Package content
    1 x Alfawise W20 Printing Platform
    1 x Power Adapter
    1 x Blade
    3 x Transparent Rubber Band
    1 x Hex Wrench H1.5
    1 x Hex Wrench H2
    1 x Hex Wrench H2.5
    1 x Hex Wrench H3
    2 x Paper Funnel
    2 x Pair of Rubber Gloves
    5x Card, 1 x U-disc ( 8G )
    1 x 250ml Resin
    1 x Release Film
    4 x Hood Side
    1 x Hood Top
    1 x Dust-free Paper
    4 x Acrylic Cover Mounting Fixture

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 9 / 10
  • Features 8 / 10
  • Connectivity 9 / 10
  • Performance 8 / 10

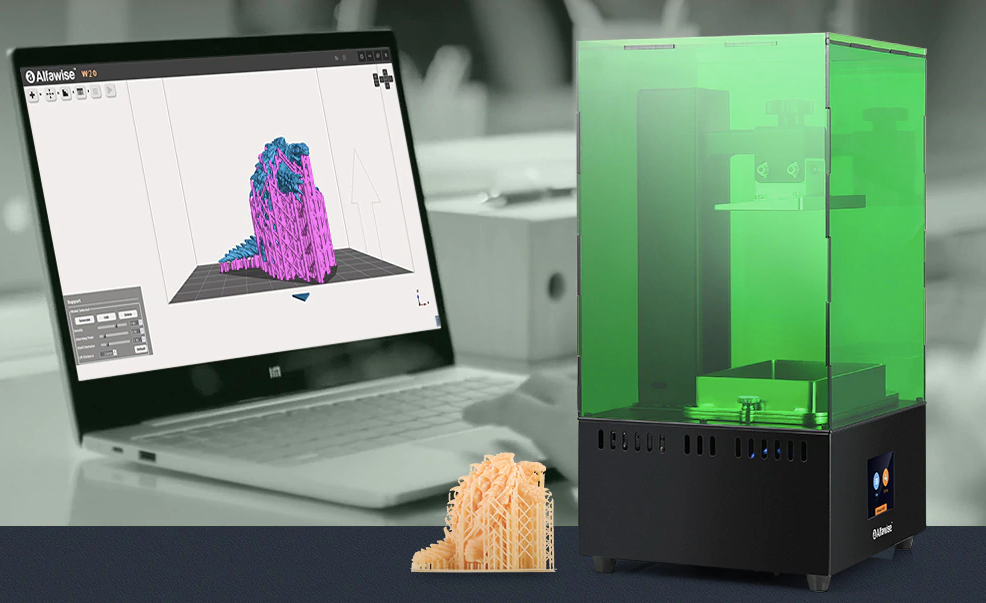

Alfawise W20 UV LCD 3D Printer

Affordable professional LCD 3D printer. 120X68x170mm big build size, 2K (2560×1440) high resolution LCI pixel resolution up to 47um, ensures super fine and smooth printing.

Using 32 LEDs array light source and small angle light path design, The Alfawise W20 3D printer can realize the uniform distribution of light intensity surface light source, improve print quality.

The W20 comes with own-developed slice software, which provides a ultra-fast slice speed, slice a 100M file in 10 seconds while open source ones need minutes. It also checks the floating parts and auto generates support structure to ensure success printing.

The Alfawise W20 3D printer can be your very first LCD 3D printer. Because of the super easy operation, you can easily check everything via the touch screen, and it’ s very easy to level.
