ANGER 75X V2
-
1: Lihv Battery Capacity:260mAh
-
2: Motor Mode：GL1202 KV6900
-
3: Flight controller：SI-F4FC Three-in-one tower
-
4: compatible Frsky (ac900)SPI receiver
-
5: GL950PRO: 1/4 COMS sensor
-
6: Antenna: RG178s antenna
ANGER 75X V2 - Price
-
ANGER 75X V2
$140.59
View Offer
ANGER 75X V2 - Specs
Product Details
-
FeaturesAfter long-term debugging and testing, we call it "Violence 75 X." The structure is reliable, lightweight, and boldly matched to the 4s 260mah lithium battery, with satisfactory control and powerful output performance during flight. The indoor environment crossing performance is very good. The new 1202 motor supports 3-4 s of power. The potential is huge. si-f4fc Flight controller 2-4s Lipo compatible，Powerful and smoothly
GL950PRO Camera ready
Camera Angle adjustable
VTX power switchable 25mw~200mw
Smartaudio ready , change VTX bands, powers, channels via OSD
Flight controllers are more flexible with an external receiver combination
NO RX Version supports players to freely match the receiver。
compatible 3s-4s Lipo / LIHV -
SpecificationBrand Name: Geelang
Item Name: Anger 75X v2 whoop
Wheelbase: 75mm
Size: 106mm * 98mm * 53mm
Weight: 46g (without battery)
Weight: 76g (with Original 4s 260mah Lipo battery)
Motor Mode：GL1202 KV6900
Stator specifications：D12 * H2 0.2mm Kawasaki
Configu-ration:9N12P
Stator Diamter:12mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.8mm*15.5mm
Magent specifications: N52H
Shift specifications: 2mm High strength steel
Bearing Specifications: d2*D5*H2.5 MR52zz Japan ISC Custom made
WindingSpecifications:180℃ Class Multiple oxygen-free copper
Weight(g):3.7g
No.of Cells(Lipo)：3S-4S
Lihv Battery Capacity:260mAh
Voltage:15.2v
Maximum charging voltage：Single section4.35v Total 17.4v
Continuous Discharge Rate：40C
Instantaneous discharge rate：80C
Size：52mm x25mmx12mm
Weight：31g
Connector：XT30 -
Package content1 x Anger 75X V2 Racing Drone
3 x Batteries
1 x Bag
1 x Replacement Canopy
1 x Replacement Frame
4 x Propellers
1 x USB Cable
1 x Screwdriver
1 x Manual

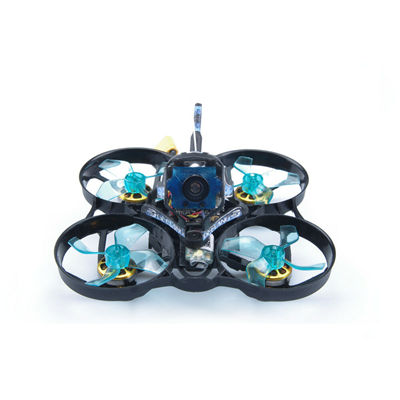

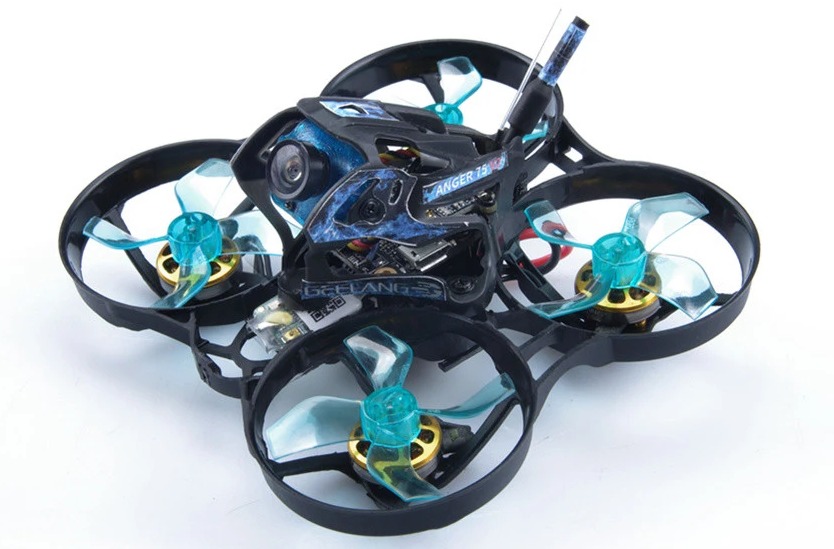

ANGER 75X V2 5.8G Whoop 3-4S 75mm FPV Racing Drone
According to its manufacturer,this new Tinywhoop is,particularly resistant to crashes. It rests on a light plastic structure with a motor-to-motor diagonal of 7.5 cm. The motors are GL1202 to 6900KV brushless for quadruple propellers. The flight controller is an SI-F4FC flashed under Betaflight with MatekF411 firmware, coupled to an ESC 4 in 1 of 12A BLheli_S DShot600.
It is ensured by a GL950Pro camera whose angle is adjustable, an 800TVL associated with a 5.8 GHz video transmitter compatible with 40 channels, capable of transmitting at 25 mW (the maximum authorized in France), 100 mW and 200 mW , SmartAudio compatible for settings via the OSD, with a dipole antenna. The Anger 75X V2 can be delivered without receiver or, optionally, with an AC900, a Flysky, a DSM2 / DSMX, an XM + from FrSky or a Crossfire Nano from TBS. It is delivered in a pouch with 3 LiHV 4S batteries of 260 mAh with an XT30 connector.
