AP45 J4205

AP45 J4205
Brand: A95X
Category: Mini PC
  • 1: CPU: Intel Pentium J4205
  • 2: GPU: Intel HD Graphics 505
  • 3: 5G WiFi: Yes
  • 4: HDMI Version: 1.4
  • 5: WiFi Chip: Intel 3165
  • 6: Suggest Input: 12V 3A

AP45 J4205 - Specs

Product Details

  • Features
    ● It is not only a small host, but also a healthy, green, low-carbon lifestyle with strong performance and small size
    ● A wide range of product applications: home movie viewing, business office, medical education, hotel room computer, design games can easily run mainstream design software
    ● New thermal design, new protection, super performance, more venting hole design, heat dissipation performance, and zero noise
  • Specification
    Model: AP45
    Type: Mini PC
    System: Windows 10
    CPU: Intel Pentium J4205
    Core: Quad Core
    GPU: Intel HD Graphics 505
    RAM: 4G RAM,8G RAM
    RAM Type: LPDDR4
    Max. Extended Capacity: TF card up to 64GB (not included)
    Maximum External Hard Drives Capacity: 2TB

    Decoder Format: H.263,H.264,HD MPEG4
    Video format: 4K,AVI,DAT,ISO,MP4,MPEG,MPEG-1,MPEG-4,MPEG1,MPEG2,MPEG4,RM,WMV
    Audio format: AAC,AFE,FLAC,MP3,WMA
    Photo Format: GIF,JPEG,JPG,PNG
    Support 5.1 Surround Sound Output: Yes

    5G WiFi: Yes
    WIFI: 802.11 a/b/g/n/ac, Dual-band WiFi 2.4GHz/5GHz , Dual wireless antenna
    Bluetooth: Bluetooth4.0
    Power Supply: Charge Adapter
    Interface: 3.5mm Audio,DC 12V,DC Power Port,LAN,RJ45,TF card,USB3.0
    Antenna: Yes
    Language: English,Germany,Italian,Spanish,Traditional Chinese
    DVD Support: No
    HDMI Version: 1.4
    Other Functions: Others
    Power Consumption.: StandBy: less than 0.5W, Normal: less than 12W
    RJ45 Port Speed: 1000Mbps

    System Bit: 64Bit
    WiFi Chip: Intel 3165
    System Activation: Yes

    Power Type: External Power Adapter Mode
    Power Input Vol: 12V
    Suggest Input: 12V 3A
    Power Adapter Input: 100-240V / 50-60Hz
    Power Adapter Output: 12V 3A

    Product weight: 0.2230 kg
    Package weight: 0.5760 kg
    Product size (L x W x H): 11.50 x 10.20 x 4.50 cm / 4.53 x 4.02 x 1.77 inches
    Package size (L x W x H): 19.45 x 12.25 x 5.50 cm / 7.66 x 4.82 x 2.17 inches
  • Package content
    1 x AP45 J4205 Mini PC
    1 x Power Adapter
    2 x HDMI Cable
    1 x Bracket
    1 x Bag of Hard Disk Screws
    1 x English Manual

Our Rating

The overall rating is based on review by our experts

8.8 4.4 1
  • Design 9 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

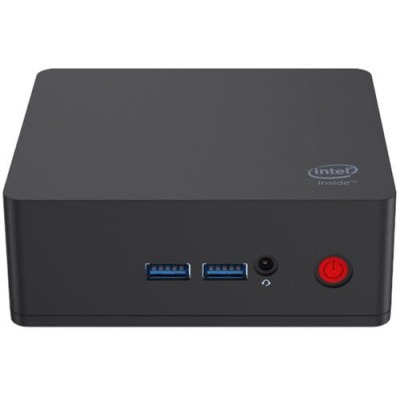

AP45 J4205 Office Mini PC

The new AP45 J4205 Office Mini PC has a 14 nm Quad Core Intel Pentium J4205 CPU with a maximum speed of 2.6 GHz and an Intel HD 505 GPU that reaches 800Mhz. The RAM is 4/8GB LPDDR4 and includes 64GB eMMc or 64/128GB MSATA SSD. We also have a free bay for 2.5 disks with SATA3 connector.

We introduced his brother’s product last week: AP35 Mini PC, and,now, I think AP45’s CPU J4205 is more stronger than Celeron J3355.

The AP45 J4205 Office Mini PC also has  a MSATA module with Dual Band WiFi and bluetooth 4.0 for wireless connectivity. On the front, it has 2 USB 3.0 ports and an audio jack.
