AuroraRC MAMFU24

AuroraRC MAMFU24
Brand: Other
Category: Drones
  • 1: 1/1.8" Inch Starlight HDR Sensor
  • 2: Horizontal Resolution: 1200TVL
  • 3: TV System: NTSC&PAL
  • 4: Image:16:9 &4:3
  • 5: WDR: Super WDR
  • 6: Video Output: CVBS

AuroraRC MAMFU24 - Price

AuroraRC MAMFU24 - Specs

Product Details

  • Features
    Image Sensor: 1/1.8" Inch Starlight HDR Sensor
    Horizontal Resolution: 1200TVL
    TV System: NTSC&PAL (Changeable)
    Image:16:9 &4:3
    WDR: Super WDR (HDR)
    Min.Illumination: Starlight
    LENS:1.66mm,2.1mm
    Synchronization: Internal
    Electronic Shutter: PAL: 1/50~100,000; NTSC:1/60~100,000
    S/N Ratio: >60dB (AGC OFF)
    Video Output: CVBS
    Camera OSD:Sepatate OSD
    Dimensions:19*19*19mm
    Wide Power Input: DC 5-40V
    Weight: 8g(N,W)/40.5g(G.W)
  • Specification
    Brand: AuroraRC
    Item Name: MAMFU24
    Wheelbase: 153mm
    Size: 255x190x55mm
    Weight: 327g (Without battery)
    Flight Controller: F722 DUAL BT Bluetooth FC
    ESC: BLHELI_S 40A 4in1 ESC
    VTX: RUSH TANK 800mw 5.8GHz VTX
    Motor: MAMBA 1606 Brushless Motor KV2700
    Propeller: Gemfan D76 5-bladed Prop
    Support: sbus/ibus/dsmx receiver
  • Package content
    1* AuroraRC MAMFU24 RC Drone

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 8 / 10
  • Features 9 / 10
  • Performance 8 / 10
  • Connectivity 9 / 10

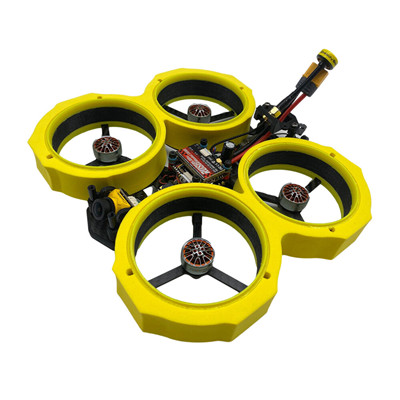

AuroraRC MAMFU24 4-6S RC Drone

AuroraRC’s Mamfu24 is a fairly classic Cinewhoop. It is based on a carbon structure with a 15.3 cm diagonal engine to engine, which incorporates propeller protections and foam dampers for dimensions of 25.5 x 19 x 5.5 cm. Its flight controller is an F722 with a Bluetooth module to allow Betaflight settings at (short) distance via the SpeedyBee application, and probably Betaflight Configurator. The motors are brushless Mamba Toka 1606 at 2700KV for Gemfan D76 five-blade propellers, all driven by a 40A ESC 4 in 1.

The FPV camera is a Ratel from Caddx, a 1200TVL with Super WDR function. It is associated with a 5.8 GHz VTX Tank analog video transmitter from Rush, compatible with 48 channels, with a power of 25 mW (the maximum allowed in France), 200 mW, 500 mW or 800 mW, adjustable via SmartAudio. The antenna is a RHCP polarized SpeedyBee with an SMA connector. A TPU part allows to install a GPS (not supplied). The Mamfu24 is supplied either without radio receiver, or with a Flysky AFHDS2A or a TBS Crossfire Nano RX. It also lacks a battery for takeoff: AuroraRC recommends Lipo from 4S to 6S. The price? The aircraft is offered from $299.99.
