We present an overview of the new model of mini-PC Beelink BT3 Pro, which is an extended version of the previous mini-PC Beelink BT3. New from Beelink received a new improved processor Intel Atom x5-Z8350, 4 GB of RAM and dual-band WiFi adapter. Also, the mini-PC is additionally equipped with a VGA port and has minor changes in the design of the case compared to the younger model. Powered Beelink BT3 Pro on a modern operating system Windows 10.
The configuration uses 4 GB of RAM LPDDR3, in contrast to the Beelink BT3, which installed only 2 GB of RAM. For data storage, 32 or 64 GB is available depending on the modification (in our case – 64 GB). The built-in memory can also be expanded with a connected SD card up to 128 GB. One USB 3.0 port, two USB 2.0 ports, a VGA, an SD card slot, a Gigabit network connector, an audio connector and an HDMI port that supports 4K @30 frames per second are available from the connection interfaces.

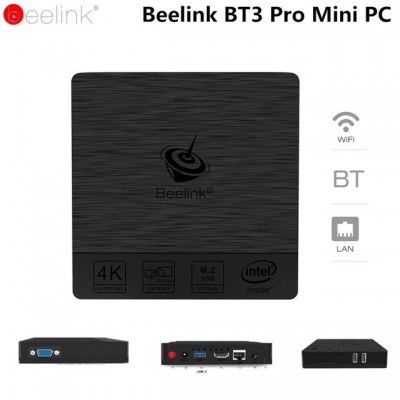

Beelink BT3 Pro is made in a rectangular plastic case in black, in size (L x W x H): 12.00 x 12.00 x 2.40 cm. The lid has a logo and four icons of the main characteristics of the model. On the front panel is the only element – a small hole, behind which is a small LED activity indicator, a blue glow. On the right side there are two vents, an SD card reader and two USB 2.0 ports. On the other hand, there is a VGA port, which in combination with HDMI 2.0, allows you to connect two monitors at the same time.
On the rear panel there is a red power button, DC 12V power connector, USB 3.0 port, HDMI 2.0 connector, which allows video output of 4K @30 frames per second, Gigabit Ethernet port, 3.5 mm headset audio connector and BIOS reset hole. In the lower part there are four large rubber feet that conceal the screws securing the bottom of the case. There are also holes for cooling the chipset. Appearance at Beelink BT3 Pro is quite attractive, the only nuance is glossy, and accordingly, the lateral side surfaces of the case.
Beelink BT3 Pro is a modern Mini PC built on the basis of a powerful Intel Atom Quad Core x5-Z8350 processor with passive cooling, thanks to which, it is easy and comfortable to work with. You can work with documents, play modern games, surf the Internet with browsers and communicate with the world through various applications such as YouTube, SKYPE, Facebook, and watch your favorite movies and TV shows using it as an advanced multimedia center. A convenient feature of this mini PC is the presence of two video outputs VGA and HDMI, which work perfectly.
