BrotherHobby Hyperbola

BrotherHobby Hyperbola

Brand: Other
Category: Drones
  • 1: Motor: BrotherHobby VY 2004-3150KV
  • 2: Camera: Caddx Ratel 2.1MM Lens
  • 3: Receiver: Frsky XM+
  • 4: Antenna: Hyperbola 5.8GHz, 2.5Dbi Gain
  • 5: Take off weight: 247g

Our Rating

The overall rating is based on review by our experts

  • Design 8 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

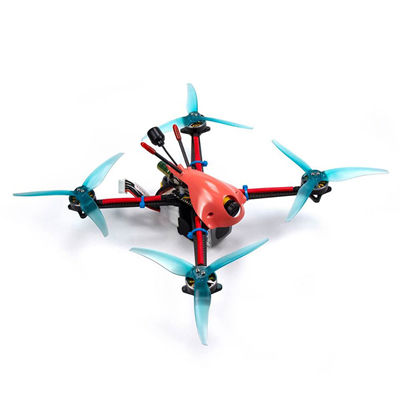

BrotherHobby Hyperbola 5 Inch 4S Frsky XM+ BNF FPV Racing Drone

This 5 inch racer has a nice minimalist look with a rather sexy central fairing. It rests on a 3mm thick unibody carbon X-frame with a 21.2cm motor-to-engine diagonal. The engines are Brotherhobby VY 2004 at 3150KV for 3-bladed Gemfan 5125 propellers. The flight controller is the Zeus F4 from HGLRC, an integrated one which includes the flight controller itself, based on an F4 processor and flashed with Betaflight, but also an ESC 4 in 1 of 35A, all on a single component with mounting holes at 2 x 2 cm.

It is provided by a Caddx Ratel camera with a 2.1mm lens, associated with a 5.8 GHz HGLRC MT MINI video transmitter capable of transmitting at 25 mW (the maximum allowed in France) but also at 600 mW to go further. The antenna is a polarized Hyperbola. The device is equipped with an XM+ radio receiver from FrSky. The weight ? 149.5 grams without battery, under 250 grams with a 4S of less than 850 mAh. Brotherhobby recommends Lipo 4S from 650 to 850 mAh with an XT60 connector. This is a device that should appeal to lovers of good acceleration.


Product Details

Features 5 Inch 4S Frsky XM+ BNF FPV Racing Drone With F4 FC Caddx Ratel Camera 35A ESC 2004 Motor 247g Take Off Weight
Specification Brand name: BrotherHobby
Item name: Hyperbola
Frame: 5 Inch Frame Toray T800SC-24K Carbon Fiber Edge Chamfering Sand Blasting UV-cure Plain Matte
FC&ESC: HGLRC Zeus35 AIO FC with 35A 3-6S 4in1 ESC 20*20MM
Motor: BrotherHobby VY 2004-3150KV Motor
Camera: Caddx Ratel 2.1MM Lens
VTX: HGLRC MT MINI VTX 5.8Ghz 600mW 20*20MM
Receiver: Frsky XM+
Antenna: Hyperbola 5.8GHz, 2.5Dbi Gain
Canopy: For Hyperbola 5'' Quad
Weight(without battery): 149.5g
Take off weight: 247g
Thrust-weight ratio: 16.8
