E-Jiale Q10

E-Jiale Q10

Brand: Other
Category: Projector
  • 1: Android 8.0
  • 2: wifi technology
  • 3: 1920*1080 full HD resolution
  • 4: 2.4G + 5G dual-frequency WIFI
  • 5: HDR10 high dynamic range video decoding

Our Rating

The overall rating is based on review by our experts

  • Design 8 / 10
  • Display 8 / 10
  • Features 9 / 10
  • Performance 8 / 10

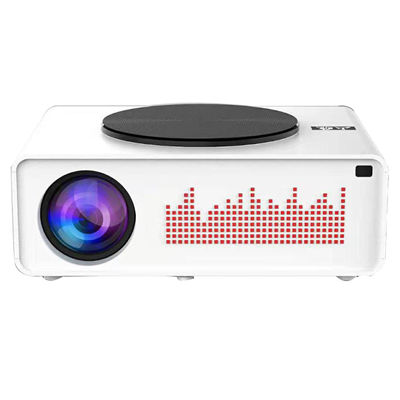

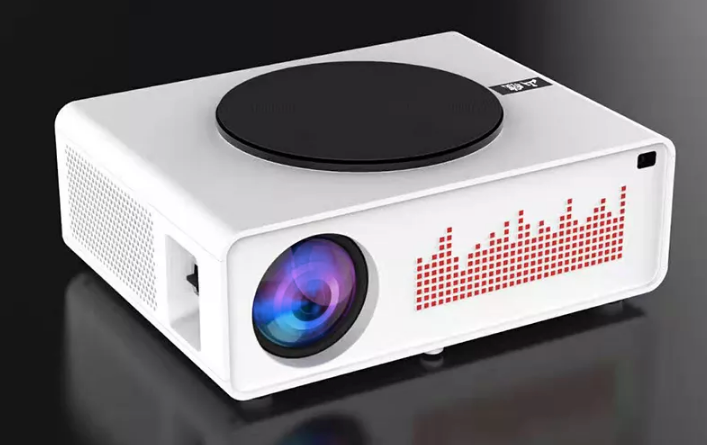

E-Jiale Q10 Single LCD Projector

In the Chinese market it seems that there are infinite models of projectors and among these today we present the E-Jiale Q10. A projector with a design reminiscent of a portable electric cooker from afar with that black circular piece on top. A projector with hardware rarely seen in its Android section where we have an Mstar MSD6A358 SoC oriented to Smar tTVs that supports for example HDR10. The native FHD resolution, which guarantees us an interesting image quality and the OS is Android 8.0, quite modern for what we are used to in the world of Chinese projectors.

The E-Jiale Q10 multimedia projector uses TFT LCD technology with a native FHD resolution of 1920 × 1080 pixels, a brightness of up to 380 ANSI Lumens and 1000: 1 contrast. The focus is manual, the keystone correction is automatic and we can get a screen that goes between 45 inch and 300 inch with a projection distance between 1.5 and 5m. As usual in Chinese projectors, this includes a pair of speakers in the chassis of 5W each, includes an IR remote control and this time we do not see physical control keys in the chassis to control it in this way.

The Android part of this projector has an Mstar MSD6A358 SoC, a Quad Core with ARM Cortex-A35 processors and an ARM Mali-400mp2 GPU with 1GB of RAM and 16GB of storage memory. We also have Dual Band WiFi, Bluetooth 4.0 and in terms of connectors it seems that there is a pair of USB 2.0, a VGA connector, a 10/100 network port, an HDMI-IN, a 3.5mm audio jack and an analog A / V connector.


Product Details

Features 1. Built-in Android 8.0, supports a variety of Android applications;
2. Built-in wifi technology, giving you a fluent watching enjoyment;
3. Supports 1920*1080 full HD resolution, adopts high-definition focusing technology, equipped with precise tuning knob, and adopts HDR10 high dynamic range video decoding;
4. 2.4G + 5G dual-frequency WIFI, 5G wireless speed is faster, which can effectively avoid interference of various signals;
Specification Technology Type Single LCD Projection Technology
Physical Resolution 1920*1080 Pixels
Maximuum Resolution 1920*1080, HD 1080P
Brightness 380 Lumens
Contrast Ratio 1000:1
Aspect Ratio 16:9&4:3(native)
Displayable Color The horizontal(1.67 millions)
Projection Method Front,Rear,Hanging cast
Projection Lens Manual Focus
Keystone Correction Automatic ±15º

Shot Size 45-300 inch
Projection Distance 1.8M-5m
Lighting 150W LED Bulb
Lamp Life Over 20000 Hours

Android Version Android 8.0
Main Chip MSD6A358
Running Memory 1GB
Memory 16GB
WIFI 5G/2.4G
Bluetooth Bluetooth 4.0

Speaker 4Ω 5W*2
Audio * 1x Audio

Projector Size 310*236*115MM
Product Weight 2.5KG
Packing Size 405*170*280mm
Box Size 710*415*290mm
GW 4.2KG
QTY 4pcs/CTN
Power Supply AC110-240V 50-60HZ
Power Consumption 160W
Operating Temperature 0 - 40C / 32 - 104F (0 - 1500m)
Operating Humidity 20 - 90% RH
Storage Conditions 20 - 90% RH
Product Color White, Blcak
