Eachine AE65

Eachine AE65
Brand: Eachine
Category: Drones
  • 1: 21gram 1s brushless 65mm whoop
  • 2: New AIO 4in1 CrazybeeX flight controller
  • 3: Smooth and powerful
  • 4: CADDX ANT Lite Camera
  • 5: High performance ET2.0 plug
  • 6: Advantage compared to the PH2.0

Eachine AE65 - Price

Eachine AE65 - Specs

Product Details

  • Features
    1. 21 gram 1s brushless 65mm whoop
    2. New AIO 4in1 CrazybeeX flight controller
    3. Smooth and powerful
    4. CADDX ANT Lite Camera
    5. High performance ET2.0 plug
    6. Advantage compared to the PH2.0
    7. Solve the voltage sag problem
    8. 15A continuous current, 20A burst
    9. 1.0mm gilde banana connector decreased internal resistance
  • Specification
    Brand Name: Eachine
    Item Name: AE65 7 Anniversary Limited Edition (ONLY 500PCS)

    Wheelbase: 65mm
    Size: 81mmx81mmx39mm
    Weight: 21g(without battery)
  • Package content
    1 x AE65 Frame and Canopy
    1 x Receiver
    Option1: CrazybeeX FR V1.0 built-in internal Frsky SPI D8 receiver
    Option2: CrazybeeX FS V1.0 built-in internal Flysky SPI receiver
    Option3:CrazybeeX PNP V1.0 with External Frsky RXSR receiver
    Option4:CrazybeeX PNP V1.0 with External TBS crossfire nano receiver

    4 x Eachine NX0802 KV22000 Brushless Motor
    1 x Gemfan 1219-3 Propellers(4cw+4ccw)
    1 x Caddx Ant Lite Ultra Light Nano FPV Camera
    1 x 5.8G 25mw 40ch VTX (Flight Controller built-in)
    4 x 1S 250mah 30C LiHV Battery
    1 x Multi Port LIPO/LIHV Battery Charger with 12V Adapter
    1 x Screw Driver
    1 x Propeller Disassemble Tool
    1 x Eachine Handbag

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 8 / 10
  • Features 9 / 10
  • Performance 8 / 10
  • Connectivity 9 / 10

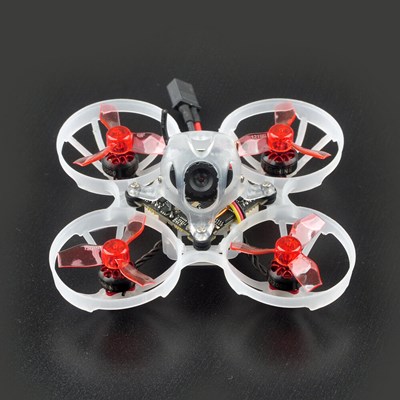

21g Eachine AE65 7 Anniversary Limited Edition 65mm 1S Tiny Whoop FPV Racing Drone

The manufacturer Eachine proposes a new Tinywhoop brushless, in a limited version of 500 pieces. It is a 6.5 cm diagonal motor-to-motor device, based on a structure with flexible plastic propeller protections of 8.1 x 8.1 x 3.9 cm. The motors are brushless NX0802 at 22000KV with a 1 mm shaft designed for 1S power supply and three-bladed Gemfan 1219 propellers. The whole system is powered by a CrazybeeF4 component which includes the flight controller based on an F4 processor, a 5A BLheli_S ESC 4 in 1, and a SPI radio transmitter, either FrSky D8 and D16 or Flysky compatible. It is also proposed without receiver integrated on the flight controller, but separated with a small overweight, in versions R-XSR from FrSky or Crossfire Nano RX from TBS.

The video return part is provided by a Caddx 1200TVL Ant FPV camera associated with a 5.8 GHz analog video transmitter compatible with 40 channels and a power of 25 mW. The required power supply is 1S. Eachine has equipped the AE65 with its new ET2.0 connector, which can be found on the US65 and DE65 Pro datasheet. With a bit of luck, this connector will give the AE65 a boost! Eachine provides 4 LiHV (4.35V) 1S 250 mAh 30C ET2.0 batteries in the box, as well as a charger for 6 batteries to be powered with a Lipo in XT60 or via the AC adapter. Without the battery and in SPI version, the AE65 weighs 20.6 grams… The price? From $106.00 at Banggood.
