Eachine Novice-III

Eachine Novice-III
Brand: Eachine
Category: Drones
  • Feature 1: New toothpick F4 flight controller
  • Feature 2: Internal SPI Frsky D8/D16 receiver
  • Feature 3: Powerful and smoothly
  • Feature 4: Led Strip ready
  • Feature 5: Built-in Buzzer ready
  • Feature 6: New design 1203 KV5500 motors

Eachine Novice-III - Price

Eachine Novice-III - Specs

Product Details

  • Features
    New toothpick F4 flight controller
    Internal SPI Frsky D8/D16 receiver (Dual antenna and with PA)
    Powerful and smoothly and long flight time (about 8~10 Mins)
    Led Strip ready
    Built-in Buzzer ready
    New design 1203 KV5500 motors
    Camera Angle adjustable
    VTX power switchable 25mw~400mw
    Smartaudio ready , change VTX bands, powers, channels via OSD
    720P DVR ready (Analog 1280*720)
    Real Ready to fly
    Compatible both for 2s-3s Lipo/LIHV
  • Specification
    Brand Name: Eachine
    Item Name: Novice-III 2-3S Toothpick RTF & Fly more
    Wheelbase: 135mm
    Size: 115mm*110mm*40mm
    Weight: 62g(without battery)

    Mode: EX1203
    KV options: KV5500
    Configu-ration:9N12P
    Stator Diamter:15mm
    Stator Length:3mm
    Shaft Diameter: Φ1.5mm
    Motor Dimension(Dia.*Len):Φ15mm*15mm
    Weight(g):4.5g

    Capacity:450mAh
    Voltage:11.4v
    Continuous Discharge Rate: 75C
    Size: 66mmx21mmx18mm
    Weight: 42g
    Connector: XT30

    Screen size: 5.0 inch
    Screen resolution: 800*480 (No blur after enlarge by the lens)
    Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV
    View Angle: 140/120 degree(Horizontal/Vertical)
    3x boost of the video to acquire intense feel-in-there video;
    92% transparent rate no distort of light;
    Built-in 3.7V/2000mAh battery;
    Each battery circle offer around 3.5hr working time;
    5-12V wide recharging voltage range, typical recharging voltage is 5V
    Accepts 5V power banks or 2S(7.4V)/3S(11.1V) battery as back-up power to have long working time

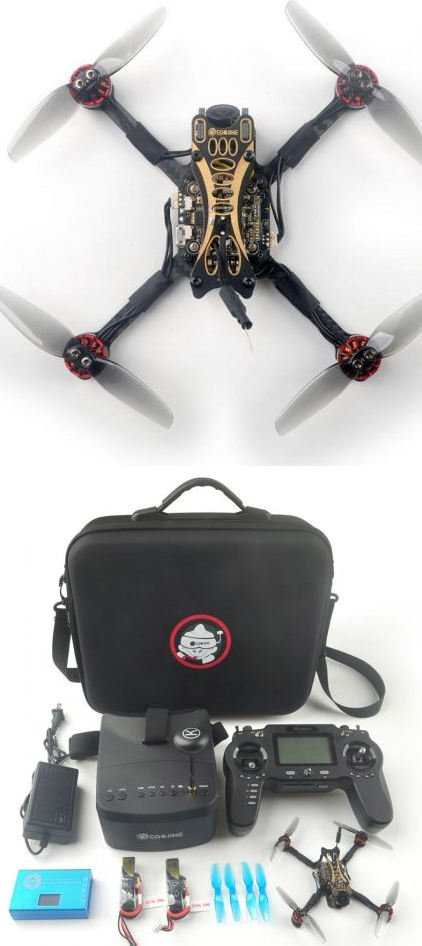

  • Package content
    1 x 135mm Toothpick Frame
    1 x F4 Flight Controller
    4 x NC1203 KV5500 Motor
    2 x HQPROP T3*2 bi-blade propeller (2cw+2ccw)
    1 x Caddx EOS2 new version 4:3 Camera
    1 x Eachine Pegasus VTX: 5.8g 25mw~400mw switchable built-in 720p DVR
    2 x Tattu 11.1v 450mah 75C Battery
    1 x 2-4S Balance Charger
    1 x Eachine EV800 Goggles
    1 x Eachine ER8 2.4G Transmitter
    1 x Propeller Disassemble Tool
    1 x Screwdriver

Our Rating

The overall rating is based on review by our experts

8.8 4.4 1
  • Design 9 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

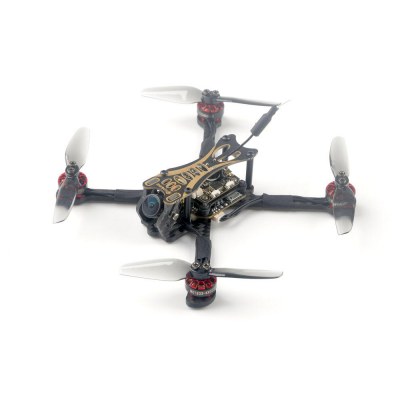

Eachine Novice-III 135mm 2-3S 3 Inch FPV Racing Drone

After Novice I, then Novice II, here comes Novice III! It adopts the same principle: it is a pack that includes everything you need to start with a nano racer in immersion. That is to say, the drone, batteries, a charger, a remote control and a mask to view the video feedback in real time, all in a carrying case!

It is a nano racer similar to the Toothpicks: it is based on a carbon structure for a 13.5 cm diagonal of the motor engine. Its propellers are 2-inch HQProp two-bladed blades driven by 1203 to 5500KV brushless motors. They are piloted a flight controller based on an F4 processor, flashed with Betaflight. This controller includes a 4 in 1 10A DShot600 ESC, an active OSD, a 2.4 GHz FrSky D8 and D16 (Non-EU) compatible radio receiver, a current sensor and a buzzer.

It is provided by a Caddx EOS2 1200TVL camera with adjustable tilt, associated with a 5.8 GHz video transmitter compatible with 40 channels, from 25 mW (the maximum authorized in France) to 400 mW, with SmartAudio support for adjustments from the radio control via the OSD, and a dipole antenna. Little bonus? This receiver has a 1280 x 720 pixel video recorder (DVR). Low definition, but the images are free of the noise of a DVR on the ground. Dimensions? 11,5 x 11 x 11 x 4 cm. Weight? 62.5 grams without the battery.

To exploit the video feedback, Eachine provides the EV800 mask, a model based on a 5-inch screen, with a resolution of 800 x 600 pixels, placed behind a Fresnel lens for a large format display. It is equipped with a 5.8 GHz receiver with a polarized antenna, as well as a 1S 3.7V 2000 mAh battery. It can also be powered by 2S, 3S and USB.

It is a model similar to that of game consoles, but with many switches, a control screen, flash in OpenTX and compatible with FrSky protocols. It is mode 2, gas on the left, but can be converted to mode 1.

The RTF package includes the UAV, remote control, mask, charger, and 2 Tattu 3S 11.1V batteries of 450 mAh 75C with an XT30 connector. The Fly More pack is similar, but there are 6 Tattu batteries instead of 2, which is an endowment that seems close to that of the Novice-II. However, the remote control, the mask and the batteries are a little more qualitative. The device, in any case, is attractive… The price? From $220.00 at Banggood (without shipping, without taxes).
