Eachine Tyro69

Eachine Tyro69
Brand: Eachine
Category: Drones
  • Feature 1: Main control chip: STM32F411
  • Feature 2: MCU:48MHz EFM8BB21F16G
  • Feature 3: Input Voltage: 2-6S
  • Feature 4: Con. Current: 20A
  • Feature 5: Burst Current: 25A (10S)
  • Feature 6: Output Power: 25mW

Eachine Tyro69 - Price

Eachine Tyro69 - Specs

Product Details

  • Features
    Main control chip: STM32F411
    MCU:48MHz EFM8BB21F16G
    Output Power: 25mW
    Channel: 48CH
    Input Voltage: 2.9-5.5V
    Support SmartAudio
    VTX Size: 15x14mm
  • Specification
    Brand Name: Eachine
    Model: Tyro69
    Item Name: 2.5 Inch DIY FPV Racing Drone
    Version: PNP ( Without Receiver, Battery and Radio Transmitter)
    Drone Wheelbase: 105mm
    Arm Plate Thickness: 2mm
    Max. Propeller: 2.5 Inch
    Material: 3K Carbon Fiber & 3D Printed TPU Parts
    Weight: 47.9g ( without battery)

    Main control chip: STM32F411
    IMU: MPU6000
    Integrated Betaflight OSD
    Firmware: MatekF411
    SBUS/ IBUS/ DSMX / UART Shared: UART1-RX
    BEC: 5V 2A
    WS2812 Led Strip : Yes
    Beeper : Yes

    KV: 8600KV
    Lipo cell: 2-3S
    Weight: 4.3g
    Color: Orange
    Max. Con. Current: 13A
    Max. Con. Power: 144W
    Configu-ration: 9N/12P
    Motor Resistance: 137mΩ
    Stator Diameter: 11mm
    Stator Thickness: 4mm
    Motor Diameter: 13.8mm
    Motor Body Length: 11.5mm
    Overall Shaft Length: 17mm
    Bolt Holes Spacing: 9mm
    Bolt Thread: M2
  • Package content
    1x Eachine Tyro69 DIY FPV Racing Drone

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

Eachine Tyro69 105mm F4 OSD 2.5 Inch 2-3S DIY FPV Racing Drone

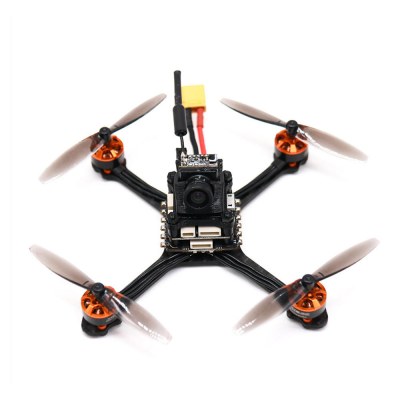

Eachine’s Tyro range, you know it well now, they are racers supplied in kit. The advantage? They are offered at a minimum price. The disadvantage? We have to get them up. But the disadvantage can turn into an advantage: mounting your device allows you to know how to repair it… The Tyro69 is a nano racer that looks like a Toothpick: it is ultra light, based on brushless motors and 6.5 cm twin-bladed propellers. The 2 mm thick carbon structure measures 10.5 cm diagonal of the motor motor.

The motors are 1104 to 8600KV brushless motors for the classic two-bladed Toothpick propellers, powered by a 20A DShot600 ESC 4 in 1. The flight controller is an Eachine F411 flashed with Betaflight, with an active OSD. For the video feedback, Eachine chose an AIO Caddx Beetle V2 combo, which combines a 1200TVL camera with a 5.8 GHz transmitter of 25 mW and 48 channels. To take off, you still need to add a radio receiver and a battery. Eachine recommends a Lipo 3S from 300 to 450 mAh, with an XT30 connector.

There is no such thing. The Tyro69 presents its components without fairing to minimize weight gain: the device weighs 47.9 grams without the battery. In the absence of protection, it is therefore necessary to be careful and avoid crashes, which are very likely to be fatal to the FPV combo. Eachine’s Tyro69 will be offered at $69.00 at Banggood.
