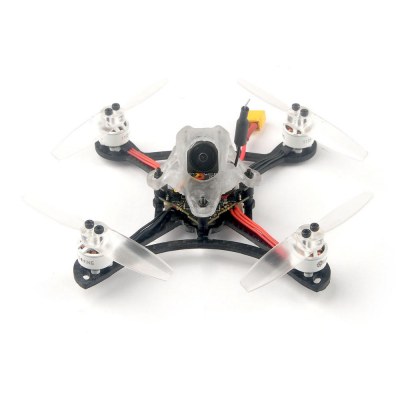

Eachine Twig 115mm
-
Feature 1: New Crazybee F4 PRO V3.0 AIO Flight controller
-
Feature 2: Powerful and smoothly
-
Feature 3: Easy to get RSSI
-
Feature 4: Camera Angle adjustable
-
Feature 5: VTX power switchable 25mw~200mw
-
Feature 6: Smartaudio ready
Eachine Twig 115mm - Video
Eachine Twig 115mm - Price
-
Eachine Twig 115mm
$96.99
View Offer
Eachine Twig 115mm - Specs
Product Details
-
FeaturesNew Crazybee F4 PRO V3.0 AIO Flight controller 2-4s Lipo Compatible
Powerful and smoothly
Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles
Camera Angle adjustable
VTX power switchable 25mw~200mw
Smartaudio ready , change VTX bands, powers, channels via OSD
Built-in SPI Frsky D8 receiver
Compatible both for 2s-3s Lipo/LIHV
Runcam Nano2 version or Caddx Baby Turtle HD version -
SpecificationBrand Name: Eachine
Item Name: 115mm Twig 3 Inch 3S Brushless FPV drone
Wheelbase: 115mm
Size: 105mm*100mm*45mm(without propellers)
Weight: Twig115 64g(without battery)
Mode: EX1105 KV5200
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:5mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ14mm*17mm
Weight(g):5.6g
No.of Cells(Lipo):2S-3S -
Package content1 x Twig 115 2.5mm Frame
1 x Crazybee F4FR V3.0 PRO FC built-in Frsky NON-EU RX
4 x 1105 KV5200 Motor
1 x Gemfan 3025 3 Inch Propeller(4cw+4ccw)
1 x Camera option1 : Runcam Nano2 / Camera option2: CADDX Baby turtle
1 x 5.8g 25mw~200mw Switchable VTX
1 x Propeller Disassemble Tool
1 x Screwdriver
Eachine Twig 115mm 3 Inch 2-3S FPV Racing Drone
This nano racer is equipped with slightly larger two-bladed propellers than those of the Toothpick, and the frame focuses more on impact resistance with its arched uprights. Does the Twig mean anything to you? No wonder, this Eachine device is a copy – up to the name! – of RacerXFPV’s Speed Racer Twig.
The Twig measures 11.5 cm diagonal from motor to motor, with dimensions of 10.5 x 10 x 10 x 4.5 cm. At the heart of the system is a CrazyBee F4 Pro V3 flight controller. Flashed with Betaflight, it offers an active OSD and a current sensor. A 2.4 GHz radio receiver with FrSky Non-EU D8 protocol is integrated on the card, with CISSO support. The flight controller is associated with a 4-in-1 ESC of 10A DShot600 which drives the engines, brushless models 1105 to 5200KV for Gemfan 3-inch 3025 bipale propellers.
The 5.8 GHz transmitter is compatible with 40 channels, for a power of 25 mW (the maximum allowed in France) or 200 mW, with SmartAudio support for remote control of settings. The camera is available in a version with a “simple” FPV camera, a RunCam Nano 2 700TVL with a 155° FOV and a D-WDR function to increase image dynamics. It weighs 64 grams in this configuration, without the battery. The other version is based on the new Caddx Baby Turtle hybrid camera, which allows time video feedback and HD footage recording at 1080p at 60 frames per second. Count 72 grams without the battery for this version.
The Twig is supplied without battery, it is up to you to equip it, via an XT30 connector. Eachine recommends Lipo or LiHV of 2S or 3S. Electronic components are capable of supporting 4S batteries, but it is not certain that the engines will be able to keep up. The price? The Twig will be available from $98.99 at Banggood.
