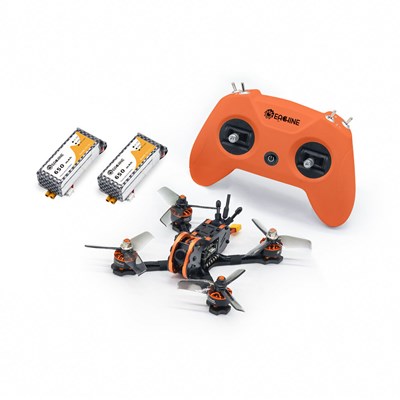

Want to get into flying a racer, but without spending a fortune on crazy money? This Tyro79S is interesting: the kit includes the 3-inch racer itself fully equipped, delivered with a radio control and batteries. It can take off immediately, it’s an RTF. To take advantage of the video feedback and to pilot in immersion, it is simply necessary to be equipped with a device of reception and display of an analogical image in 5,8 GHz.

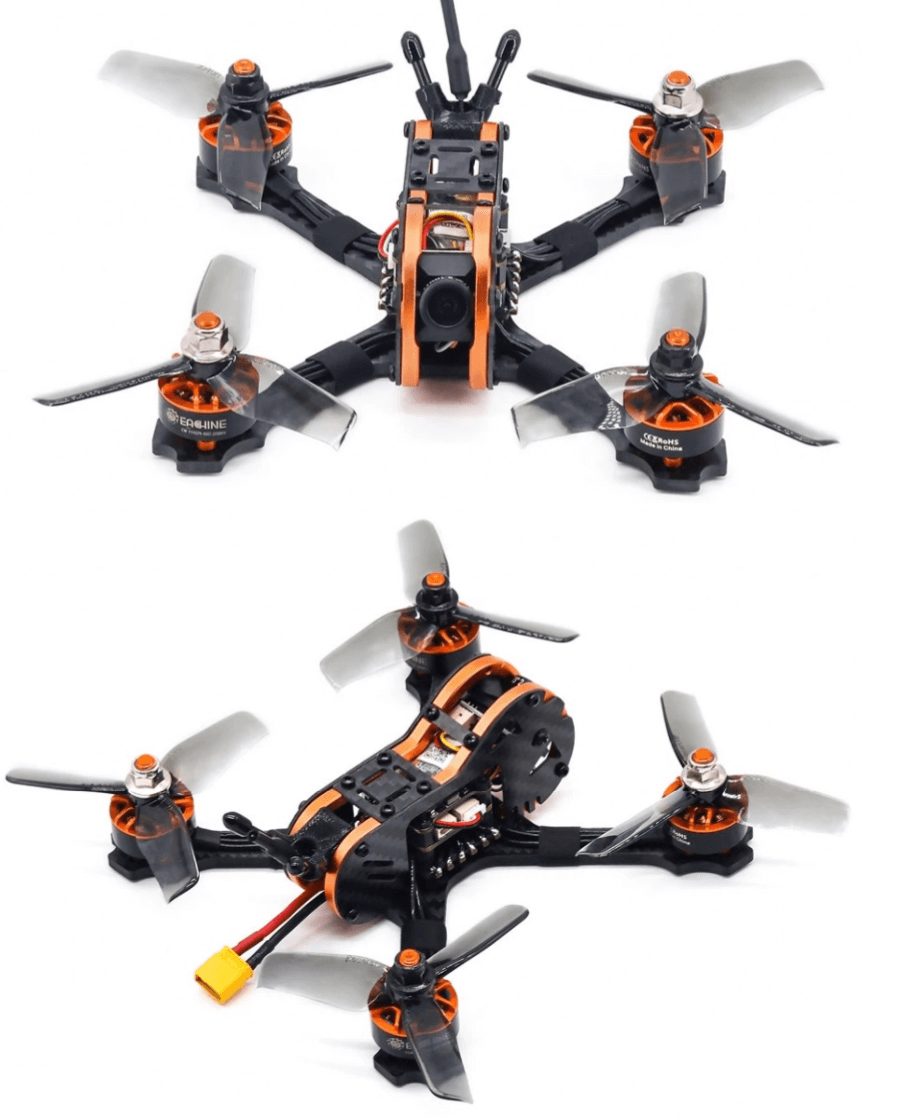

The racer is a fully equipped Tyro79. It is based on a carbon structure with a 14 cm engine to engine diagonal, with aluminium parts. Its arms are 3 mm thick. The motors are brushless 1607 at 2800KV for three-bladed Racerstar Tornado 3040 propellers. The whole is piloted by a Eachine F4 flash flight controller with Betaflight and associated with a ESC 4 in 1 of 20A BLheli_S.
It is provided by a Eachine FPV camera based on a 700TVL CMOS sensor in PAL, accompanied by a 5.8 GHz XF5805 video transmitter compatible with 40 channels and capable of transmitting at 25 mW (the maximum allowed in France), 100 mW, 200 mW and 300 mW to go further where it is allowed. The antenna is a dipole with an IPEX connector.
The Tyro79S is equipped with an XM+ radio receiver from FrSky. Eachine provides a radio control in the kit! It is a LiteRadio 2 from BetaFPV, in the colors of the Tyro79S since it is dressed in orange, delivered with a 2S battery of 350 mAh. To make the aircraft really ready to fly, the manufacturer also offers 2 or 4 batteries depending on the version, Lipo 3S of 650 mAh 45C for an estimated autonomy of about 4 minutes. The device is able to handle 4S batteries. The kit includes a charger for the batteries!
The Tyro79S kit with its LiteRadio 2 radio control from BetaFPV, batteries and a charger, is available from $179 at Banggood. Note that, unlike other Tyro models which are delivered to be assembled by the customer, the Tyro79S is an RTF, i.e. delivered assembled, welded, tuned, ready to fly…
- The drone builds and setup well out from factory
- with Battery, Receiver and Radio Transmitter, ready to fly
- Upgrade with TPU Part on the tail, more easier to install receiver cable and antena
- Upgrade with Racerstar Tornado 3040 3-Blade Propeller, more power and durable
Brand Name: Eachine
Item Name: 140mm 3 Inch F4 FPV Racing Drone RTF
Version: RTF 2x Battery Version/ RTF 4x Battery Version ( Optional)
Receiver: Frsky XM+ Receiver
Flight Time: 4 mins ( Take example as 3s 650mAh Lipo)
