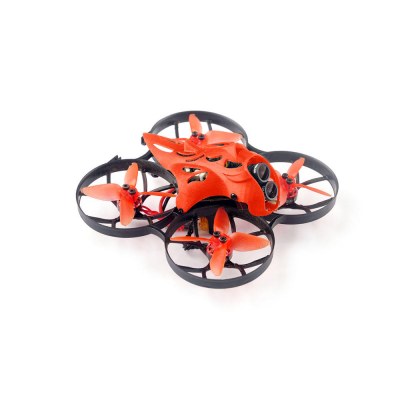

Eachine Cinecan
-
1: Wheelbase: 85mm
-
2: New Crazybee F4 PRO V3.0
-
3: Powerful and smoothly
-
4: Camera Angle adjustable
-
5: Camera Angle adjustable
-
6: VTX power switchable 25mw~200mw
Eachine Cinecan - Specs
Product Details
-
FeaturesNew Crazybee F4 PRO V3.0 AIO Flight controller 2-4s Lipo Compatible
Powerful and smoothly
Caddx Tarsier 4K Camera & DVR ready
Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles
Camera Angle adjustable
VTX power switchable 25mw~200mw
Smartaudio ready , change VTX bands, powers, channels via OSD
Frsky Non-EU version support NON-EU Frsky transmitter D8/D16 compatible
Flysky version support both AFHDS and AFHDS-2A protocol transmitter
No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc..
Compatible both for 3s-4s Lipo/LIHV -
SpecificationBrand Name: Eachine
Item Name: Cinecan 85mm 4K Cinewhoop
Wheelbase: 85mm
Size: 115mm*115mm*55mm
Weight: 66g(without battery)
Weight:91g(with Original 3s 300mah Lipo battery)
Mode: EX1103 KV7000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
Weight(g):3.7g
No.of Cells(Lipo):2S-4S
MCU upgraded to EFM8BB21
Power supply: 2-4S LiPo/LiPo HV (7v/17v)
Current: 10A continuous peak 12A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: F_H_40_REV16_5.HEX
Default protocol: DSHOT600
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Failsafe support
Output power: 25~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Antenna: RG178 antenna
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio ready
Weight: 3g
Capacity:300mAh
Voltage:11.4v
Continuous Discharge Rate: 30C
Instantaneous discharge rate: 60C
Size: 65mmx18mmx11mm
Weight: 25gConnector: XT30 -
Package content1 x Cinecan 85mm Frame
1 x Option1: Crazybee F4FR V3.0 PRO FC built-in Frsky NON-EU RX
Option2: Crazybee F4FS V3.0 PRO FC built-in Flysky RX
Option3: Crazybee F4 V3.0 with external TBS Crossfire Nano RX
Option4: Crazybee F4 V3.0 PRO FC no RX verion
4 x 1103 7000KV Motor
1 x 2 Inch propeller(4cw+4ccw)
1 x Caddx Tarsier 4K Camera
1 x 5.8G 40ch 25mw~200mw VTX
1 x 3S 11.4v 300mah 30C/60C Battery
1 x Propeller disassemble tool
1 x Screwdriver
1 x Bag
Eachine Cinecan 85mm 4K Cinewhoop 3-4S FPV Racing Drone
You knew Eachine’s Trashcan, tested here. It did not have an HD video recorder, simply equipped with an analog FPV camera. This is the 4K version, which Eachine called Cinecan 85mm 4K. At the heart of this device is Caddx’s dual Tarsier camera (tested here), capable of providing analog feedback and 4K recording. To carry the excess weight, the Cinecan is based on a larger structure, 8.5 cm diagonal from motor to motor.
The motors are 1103 to 7000KV brushless motors for 2 inch propellers with a central hole of 1.5 mm diameter. The whole is powered by a 4 in 1 ESC of 10A BLheli_S and DShot600 and a Crazybee F4Pro V3 flight controller. The latter is flashed with Betaflight with an active OSD. The camera is associated with a 40-channel 5.8 GHz video transmitter capable of transmitting in 25 mW (the maximum allowed in France) and 200 mW to go further or better penetrate buildings. It is SmartAudio compatible to take advantage of the settings arec the remote control via the OSD.
With dimensions of 11.5 x 11.5 x 5.5 x 5.5 cm and a weight of 66 grams without its battery, the Cinecan 85mm 4K comes to tease the Beta85X HD (see test here) or its future version 4K and other devices based on a Caddx Tarsier camera. It is available without a radio receiver, with a Flysky compatible receiver, a FrSky compatible receiver or a Crossfire TBS receiver. The device is designed for 3S batteries, it is delivered with a 3S 300 mAh 60C with XT30 connector. But the data sheet suggests that the device would be compatible with the 4S! To see.
