Eachine Nano LR3

Eachine Nano LR3
Brand: Eachine
Category: Drones
  • 1: Eachine 3 18650 Long Range Frame
  • 2: Eachine 5A AIO 1-2S FC
  • 3: Eachine NANO V2 VTX
  • 4: CADDX nano ANT FPV Camera
  • 5: Eachine 1303.5 4500KV Motor
  • 6: Power Supply:5V

Eachine Nano LR3 - Price

Eachine Nano LR3 - Specs

Product Details

  • Features
    - Eachine 3 18650 Long Range Frame
    - Type:3-inches Frame
    - Wheelbase:144mm
    - Propeller support:3 Inches
  • Specification
    Brand Name: Eachine
    Model: Nano LR3
    Itme Name: 144mm 3 Inch F4 2S Long Range FPV Racing Drone
    Wheelbase: 144mm
    Flight Time: 20 mins ( Take example as 2S 18650 Battery)
    Weight: 97.4g
  • Package content
    1x Eachine3 Long Range Frame
    1x Eachine 5A AIO FC
    1x Eachine NANO V2
    1x CADDX nano ANT FPV camera
    4x Eachine 1303.5 KV4500 Motors
    8x GEMFAN 3016 3-inch 3-blades propeller
    1x M80 GPS
    1x IPEX copper tube antenna
    1x receiver

Our Rating

The overall rating is based on review by our experts

8.3 4.2 1
  • Design 8 / 10
  • Features 9 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

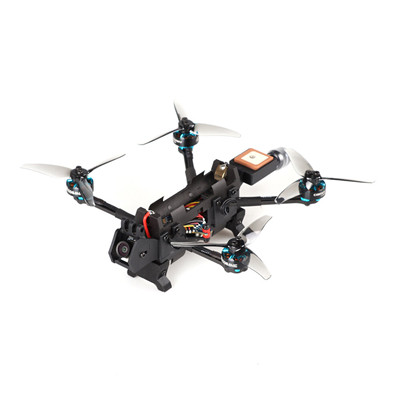

Eachine Nano LR3 Long Range 144mm 3 Inch F4 2S FPV Racing Drone

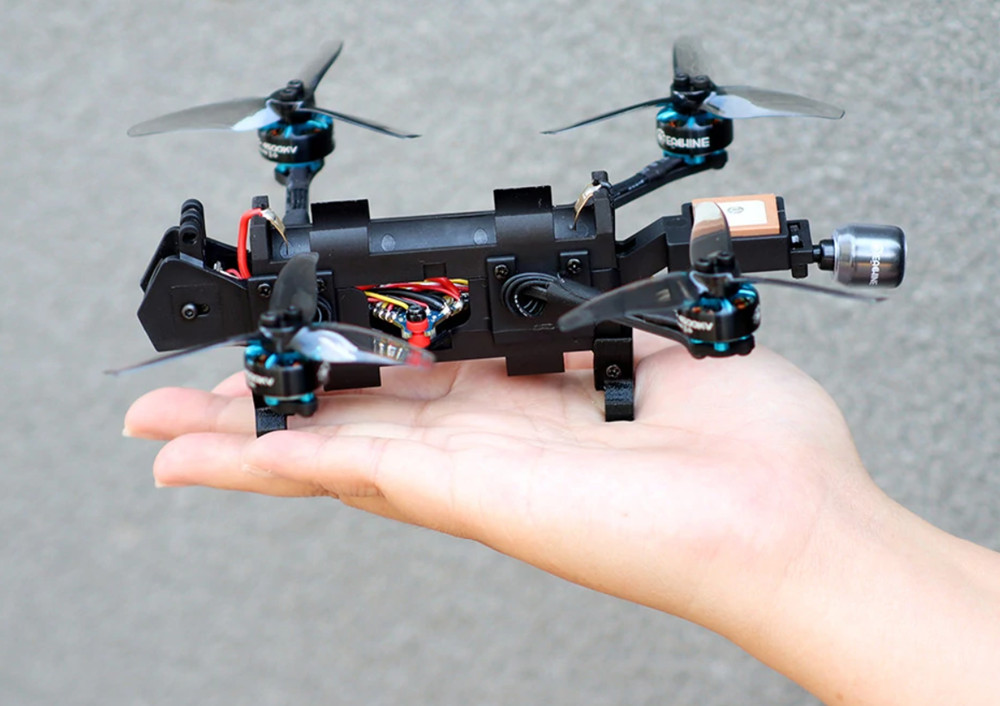

The manufacturer Eachine launches in the range of nano racers that draw their power from 18650 Li-ion rechargeable batteries. In this category, I had already tested the Rekon 3 from HGLRC. The Nano LR3 goes a bit further, no pun intended, since it is equipped for the “long range”. It is based on a light carbon structure with a 14.4 cm diagonal from motor to motor, and a weight of 97.4 grams (without batteries).

The flight controller is based on a F4 processor, flashed with Betaflight, coupled with a 4 in 1 ESC of 5A. The motors are Eachine 1303.5 at 4500KV for propellers 3 tripales inches Gemfan 3016. The camera is a Caddx Nano Ant associated with a 5.8 GHz analog video transmitter Eachine Nano V2 capable of transmitting at 25 mW, but also 100, 200 and 400 mW to go much further.

It is equipped with a GPS M80 to secure the flights and obtain a return to the takeoff point in case of radio or video loss. The equipment was too important to be satisfied with a single 18650 like the HGLRC Rekon 3, which is already not very reactive when you push the throttle. Eachine has therefore chosen to equip the Nano LR3 with two 18650 batteries, for a 2S power supply. It will be very interesting to see how this equipment performs!

The Nano LR3 from Eachine starts at $192.99 at Banggood in version without radio receiver. But it is also available in versions with a Flysky A8S V2, XM+, R-XSR or R9mm receiver from FrSky, or Crossfire Nano RX from TBS.
