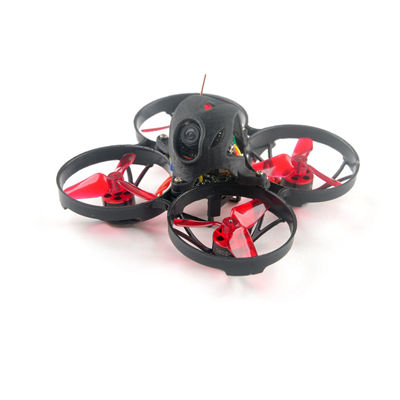

The Tinywhoop family continues to grow, with a new 6.5 cm diagonal model from motor to motor. The UZ65 rests on a plastic frame 8 x 8 cm for a height of 4 cm. Its strong point is an electronic plate which combines the functions of flight controller, ESC for brushless motors, radio receiver (if you wish) and video transmitter! The FPV camera, a Nano3 from RunCam 800TVL with a FOV of 160°, completes the equipment… This allows the device to weigh only 21.5 grams (without battery). Another strong point? Its HQProp three-bladed propellers have a diameter of 3.5 cm for an axis of 1 mm. It doesn’t sound like much but it’s more than the usual 3.1 cm on 6.5 cm nano racers. We therefore expect better performance in flight…
The motors are 0802 to 19000KV brushless for 1S batteries. The flight controller is based on an F4 processor – it’s a CrazyBeeF4 base, flashed with Betaflight, with an active OSD. The ESC is a 4 in 1 of 5A for 1S BLheli_S batteries.The video transmitter is a 5.8 GHz model compatible with 40 channels, with a power adjustable to 25 mW and 100 mW, with the support of SmartAudio to make the adjustments with the radio control via the OSD.
You choose if you want an SPI receiver integrated into the flight controller, FrSky D8 and D16 Non-EU compatible or Flysky AFHDS and AFHDS-2A compatible. Or a receiver external to the flight controller, a DSM2 / DSMX compatible or a Crossfire Nano RX from TBS. Eachine delivers 4 LiHV 1S 3,8V batteries with the UZ65, with a PST PH2.0 connector.
The smallest 1-2s 3 in 1 flight controller built-in ESC, Receiver
The world first 65mm whoop with 35mm propellers
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for 1S Lipo/LIHV
Camera Angle adjustable
Brand Name: Eachine
Item Name: UZ65 65mm FPV Racing Drone
Weight(without battery): 21g
Weight(with battery): 29g
Internal SPI Frsky version
Internal SPI Flysky version
External DSM2/DSMX Receiver version
External TBS Crossfire Nano RX version
