Eachine Tyro129

Eachine Tyro129

Brand: Eachine
Category: Drones
  • 1: Video output Signal: cvbs
  • 2: MOS: 5X6
  • 3: Input voltage: 2-6S
  • 4: Motor Length: 20mm
  • 5: Configu-ration: 12N/14P

Our Rating

The overall rating is based on review by our experts

8.5
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

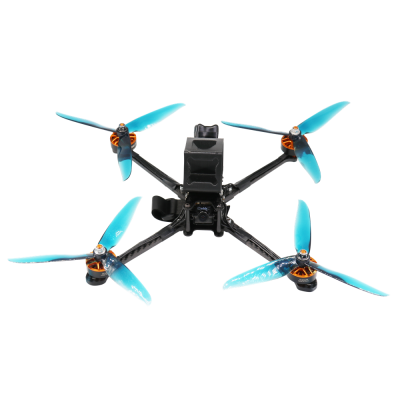

Eachine Tyro129 280mm F4 OSD DIY 7 Inch FPV Racing Drone

Do you want the mid-range? Going on flights far beyond direct sight is very exciting! Obviously, French regulations prohibit you from doing so, so it will be necessary to practice during holidays abroad. Which frame to choose? Eachine offers the Tyro129 280mm, a large format camera equipped with 7 inch propellers. The frame is made of carbon with 5 mm thick arms. The motors are brushless 2507 to 1800KV driven by a 45A 4 in 1 ESC!

There is an Eachine controller based on an F4 processor, with an altimeter barometer and a GPS and Glonass receiver. It is flashable in Betaflight or iNav, with an active OSD. The video part is provided by a Caddx Turbo F2 camera, 1200TVL, associated with a 5.8 GHz video transmitter compatible with 40 channels, with a power of 25 mW (the maximum allowed in France… but this device is not intended to evolve in France), 200 mW or 600 mW. The Tyro129 280mm is delivered with two sets of DALProp Cyclone T7056C three-blade propellers. The weight, excluding receiver and battery, is 356 grams.

It obviously consists in knowing if this configuration is subject to vibrations, since the principle is to equip the camera with a GoPro sports camera to come back with beautiful images. TPU support for GoPro Session 5 is provided in the box. To take off? A radio receiver must be added – preferably TBS Crossfire or FrSky R9M. You also need a battery. Eachine recommends a Lipo 5S between 1600 and 2200 mAh, but the equipment is compatible with 6S batteries.

The Tyro129 280mm is available at $129.00 only at Banggood. Why this super light price? Because, like Eachine’s other Tyros, the device is delivered in a kit to be assembled. Prepare the soldering iron, be patient….

SPECS

Product Details

Features Brand Name: Eachine
Model: Tyro129
Item Name: 280mm F4 OSD DIY Version 7 Inch FPV Racing Drone
Version: PNP ( Without Receiver, Battery , Radio Transmitter)
Specification Wheel base: 280mm
Frame arm thickness: 5mm
Upper plate thickness: 2mm
Bottom Plate Thickness: 2mm
Side plate thickness: 1.5mm
Frame kit material: 3K carbon fiber

KV: 1800KV
Lipo cell: 3-6S
Weight: 39g
Motor Resistance: 0.0586Ω
Maximum pull: 1488g (4S 7inch propeller)
Maximum power: 840W
Configu-ration: 12N/14P
Motor Stator Diameter: 25mm
Motor Stator Thickness: 7mm
Motor Diameter: 30.8mm
Motor Length: 20mm
Whole shaft length: 35mm
Mounting holes distance: 16*16mm
Mounting holes: φM3
Recommend propeller: 6-7 inch

Continuous current: 40A
Burst current: 45A (10S)
BEC output: 5V @ 2A
Input voltage: 2-6S
Main control chip: 48mhz EFM8BB2
Firmware upgrade: Supports Dshot150-600/Multishot/Oneshot/PWM
MOS: 5X6
Current Sensor: NO
Size: 37.5x37.5mm
Mounting Hole: 30.5x30.5mm
Weight: 15g

Case size: 19x19x16mm
Weight: 5.5g
Signal system: NTSC / PAL (Switchable)
Resolution ratio(horizontal center): 1200TVL
Video output Signal: cvbs
Image: 16:9
Synchronization method: inter-sync
Camera lens: standard 2.1mm
Lens operating voltage: DC 4.5-40V
S/N Ratio: >52dB (AGC OFF)
Audio: YES

Transmitting power:0/25/200/600mW switchable
Channel: 40CH
Full video format: NTSC/PAL
Input voltage: 7V~24V
Power dissipation: +12V@260mA/600MW
Transmitting Distance: ≥0.5km@25mW, ≥1km@200mW, ≥2km@600mW
Size: 36×36×5mm
Weight: ≤7g (except antenna)
