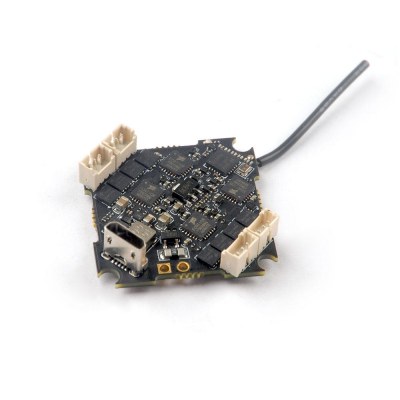

Eachine Crazybee F4 PRO

Eachine Crazybee F4 PRO
Brand: Eachine
Category: Drones
  • 1: Board size: 28.5 * 28.5MM
  • 2: Power supply: 2-4S battery input (DC 7-17V)
  • 3: Built-in 10A(each) Blheli_S 4in1 ESC Dshot600 ready
  • 4: Built-in Betaflight OSD(SPI Control)
  • 5: Built-in Current meter Max 70A
  • 6: MCU upgraded to EFM8BB21

Eachine Crazybee F4 PRO - Specs

Product Details

  • Features
    SPI BUS receiver
    Protocol: AFHDS and AFHDS-2A Switchable
    Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
    No ground interference ( Transmitter and receiver 1 m from the ground): 300m
    Failsafe support
    No RX version support external serial-bus receiver like XM+, crossfire, S-FHSS etc.
  • Specification
    Brand name: Eachine
    (Frsky version) CRAZYBEE F4FR PRO V3.0 Firmware target: CrazybeeF4FR
    (Flysky version) CRAZYBEE F4FS PRO V3.0 Firmware target: CrazybeeF4FS
    (No RX version) CRAZYBEE F4 PRO V3.0 Firmware target: CrazybeeF4DX
    MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
    Sensor: MPU-6000(SPI connection)
    Board size: 28.5 * 28.5MM
    Power supply: 2-4S battery input (DC 7-17V)
    Built-in 10A(each) Blheli_S 4in1 ESC Dshot600 ready
    Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable)
    Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS2A switchable)
    No RX version need to add external Receiver
    Built-in Betaflight OSD(SPI Control)
    Built-in Current meter Max 70A
    Current meter scale set to 470
    Built-in 5V 1A BEC
    Built-in voltage detection
    MCU upgraded to EFM8BB21
    Power supply: 2-4S LiPo/LiPo HV (7v/17v)
    Current: 10A continuous peak 12A (5 seconds)
    Support BLHeliSuite programmable
    Factory firmware: F_H_40_REV16_5.HEX
    Default protocol: DSHOT600
    SPI BUS receiver
    Frsky D8/D16 switchable
    Compatible Non EU transmitter both D8 and D16 mode
    Channels: 8ch or 16ch
    Failsafe support
    No ground interference ( Transmitter and receiver 1 m from the ground): 300m
  • Package content
    1 x CRAZYBEE F4FR PRO V3.0 Board

Our Rating

The overall rating is based on review by our experts

8.8 4.4 1
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 9 / 10

Eachine Crazybee F4 PRO V3.0 Flight Controller for Cinecan 4K Racing Drone

If you want to make your own nano racer for engaged flights or your Cinewhoop to make beautiful videos, you need a flight controller. The Crazybee F4 Pro in V2.0, coupled with a brushless ESC for 2S and 3S batteries, successfully powers several devices such as the RedDevil from Eachine, the Sailfly-X from Happymodel, the UR85 from UrUAV, the Mobula7 HD from Happymodel, etc. A nice track record! Eachine now offers its successor, the Crazybee F4 Pro V3.0…

While the general characteristics remain the same, the ESC has been revised for better performance. Instead of 5A, it is now able to support 10A, and 12A as a peak. In addition to 2S and 3S batteries, it is also compatible with Lipo 4S ! It is available in several versions: without radio receiver, with a Flysky compatible receiver, with a FrSky Non-EU D16 compatible receiver (and without regional limitation in D8). It will be offered by Banggood at $47.99.
