Eachine D-moni5

Eachine D-moni5
Brand: Eachine
Category: Gadget
  • Feature 1: 800*480 display resolution
  • Feature 2: 5 inch small size, easy carry
  • Feature 3: Single receiver with 72 channels
  • Feature 4: Support DVR function
  • Feature 5: Support video input
  • Feature 6: Built-in 7.4v/650MAH battery

Eachine D-moni5 - Price

Eachine D-moni5 - Specs

Product Details

  • Features
    800*480 display resolution
    With memory function, can save the setting when power off.
    5 inch small size,easy carry, can be mount on remote controller or used as car monitor.
    Single receiver with 72 channels, has covered most frequencies in 5.8Ghz bands
    Support DVR function, HD recording resolution at HD(1280*720),D1(704X576),VGA(640X480)
    Support video input
    Support DC12V external power input
    Built-in 7.4v/650MAH battery
  • Specification
    Model : 5.8GHz 5 Inch Screen
    Channel 72CH
    Frequency : 5325-5945Mhz
    Recieve Sensitivity : -90DBM
    Screen : 5 inch
    Type : 16:9 wide
    Brightness : 500cd
    Resolution : 800 x480
    Format : PAL/NTSC
    Support SD : up to 32Gb(not included)
    Video Compressed Format : MPEG-4
    Record Video Resolution : HD(1280*720),D1(704X576),VGA(640X480)
    Battery : built in 7.4v/650MAH
    Working Voltage : DC12V 300mA
    Power Consumption : ≤8.64W
    Working Temp. : -10℃ to +65℃
  • Package content
    1 x Eachine D-moni5
    1 x Sunshade Hood
    1 x Mount
    1 x Video Cable
    1 x Charger

Our Rating

The overall rating is based on review by our experts

8.3 4.2 1
  • Design 9 / 10
  • Features 8 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

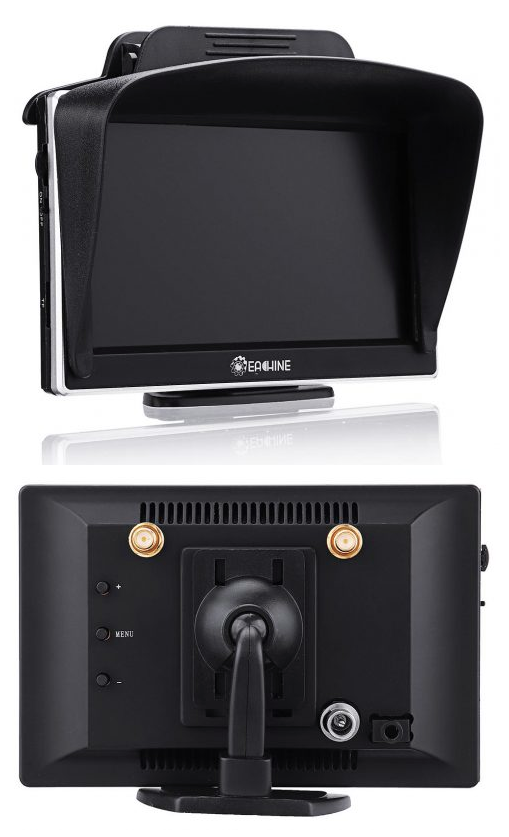

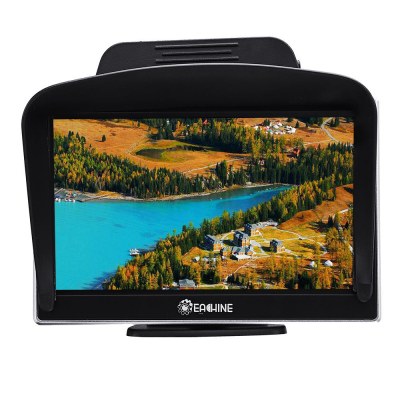

Eachine D-moni5 5.8Ghz 72CH 5 Inch 800*480 16:9 Mini FPV Monitor

Glasses and immersion masks are nice, but sometimes you need a very simple screen for adjustments, check the video feedback, watch another pilot’s flight, scan the frequencies. This is the purpose of this 5-inch screen, with a resolution of 800 x 480 pixels, which is powered by an integrated battery, a Lipo 2S of 650 mAh.

The display also has its own 5.8 GHz video receiver, in Diversity mode and a sensitivity of -90 dBm. It is compatible with 72 frequencies in the 5.8 GHz band, much more than the range 5725 to 5875 MHz at which we are allowed in France – it is perfect for flights abroad. It supports PAL and NTSC flows, and can be powered with 12V (for use and recharge). The 5.8 GHz receiver is accompanied by a video recorder on a microSD card – let’s hope it works correctly without “forgetting” the frames it receives badly.

Too bad there is no AV input to view an external source or AV output to enjoy the 5.8 GHz receiver on another viewing device. The screen comes with a sun visor, a base, a video cable and a charger. There do not seem to be antennas in the pack. The price of Eachine D-moni5? $48.99 at Banggood.

Eachine D-moni5 - Reviews

  • Be the first to add a Review

    Please post a user review only if you have / had this product.
