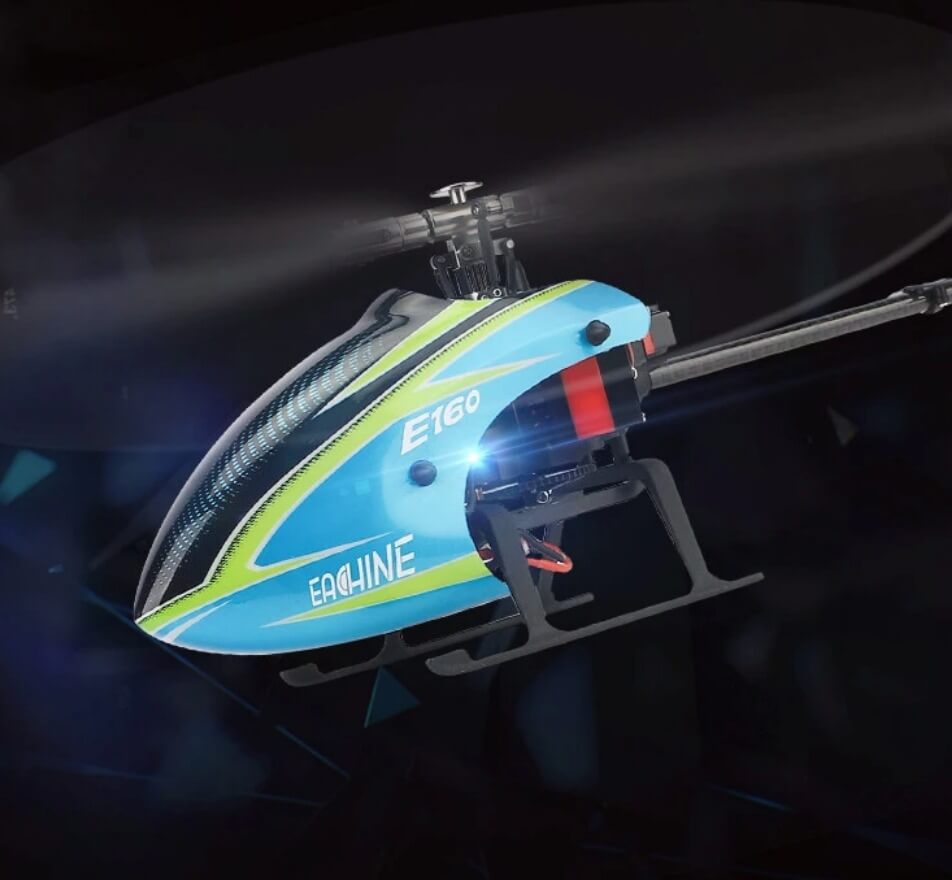

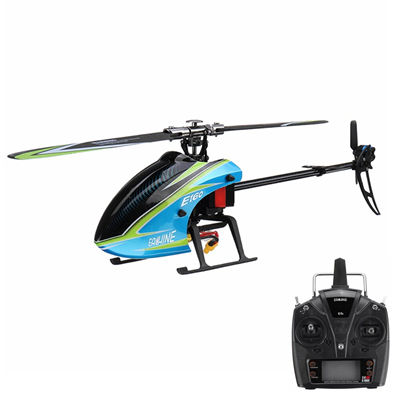

It is nice to discover radio controlled helicopters. The Eachine E160 is a medium format model, with a 35 cm main rotor and a height of 10.8 cm. It is based on a 1312 main brushless motor at 6500KV (1308 according to the technical sheet). The tail rotor is driven by a 1104 brushless motor. The main block is of the flybarless type with variable pitch propellers.
Therefore，It is capable of 3D evolutions: flights on the back and acrobatic figures. The flight controller allows stabilization for smooth flights, or deactivates it to pilot aggressively. According to the manufacturer, The battery is a 2S 7.4V of 600 mAh 25C with an XT30 socket, for an autonomy of about 5 minutes,. Eachine provides a mode 2 radio control (gas on the left), and you can pair the device with your own radio control if it is Futaba S-FHSS compatible.
The communication protocol is compatible with FUTABA S-FHSS, expandable satellite receiver, and supports DSMX DSM2 PPM S-SUS
1> Adopt all-metal CNC rotor head without aileron design, using aerodynamic principles to design blades to provide strong power and airframe self-stability
2> The new rotor clip linkage structure, the transmission efficiency is more accurate, with small clearance and flexible rotation, which is more conducive to the accuracy of flying feel.
3> Use 1308 external rotation brushless motor for more powerful power, 1104 tail brushless motor tail lock, 7.4v 600mah 25c large rate battery
4> 4.3g metal tooth high precision digital steering gear. Response speed 90 ° / 0.06ms
5> Set 3D6G system, one-button switch of remote control
6> The 3D mode uses a 3-axis gyroscope, which is responsive and can easily make a pan, roll, fly, hurricane, pendulum, etc
7> 6G mode uses 6-axis gyroscope, flight stability, especially suitable for beginners to fly
8> Standard 6-channel remote control
9> Equipped with special balancing charger
Product: RC Helicopter
Product size (CM): rotor diameter 305mm body length 305mm height 98mm
Flying weight: 124 grams
Flight time: about 5 minutes
Charging time: 30-60 minutes
Remote control mode: 2.4G remote control
Remote control distance (m): 120 meters
Number of driving motors: main motor (brushless) 1308 tail motor (brushless) 1104
Battery details: 7.4V 600mAh 25C
