FlyFox Nano3

FlyFox Nano3
Brand: Other
Category: Drones
  • 1: SPCMaker F411 FC AIO 6A ESC
  • 2: RCINPower 1202 Plus 11500KV Motor
  • 3: Gemfan 3018
  • 4: PandaRC VT5804 Nano 400mW VTX
  • 5: Runcam Racer Nano 2 1000TVL FPV Camera
  • 6: Recommend Battery

FlyFox Nano3 - Price

FlyFox Nano3 - Specs

Product Details

  • Features
    Brand Name: SPCMaker
    Model: R66
    Item Name: F4 Flight Controller AIO 6A BL_S 4in1 ESC Board
    MCU: STM32F411
    Gyro: MPU6000
    OSD: AT7456E
    FC Firmware: MatekF411RX
    Size: 31.5x31.5mm
    Mounting Hole: 25.5x25.5mm (M3)
    Weight: 2.8g
    Input Voltage: 1S
    Con. Current: 6A
    Burst Current: 8A BEC
    Output: 5V 1.2A
    ESC Firmware: O_H_5
    BLHeli: BLHeli_S
    Current Scale: 400
  • Specification
    Brand Name: FlyFox
    Model: Nano3
    Item Name: 3 Inch F4 1S Long Rang FPV Racing Drone
    Weight: 102g
  • Package content
    1x Flyfox Nano3 3 Inch FPV Racing Drone

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 8 / 10
  • Features 9 / 10
  • Performance 8 / 10
  • Connectivity 9 / 10

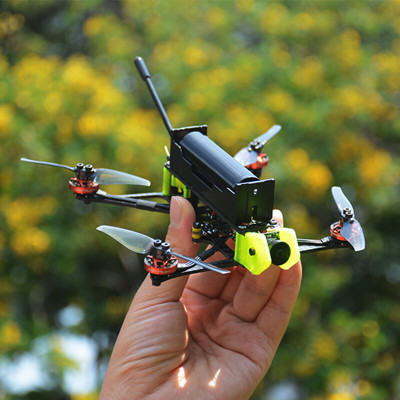

FlyFox Nano3 F4 1S 3 Inch Long Range FPV Racing Drone

The new trend is the nano racers with a 1S power supply based on a 18650 rechargeable battery. After the Rekon 3 from HGLRC, here is the Nano3 from Flyfox! The structure is in carbon, with brushless motors RCinPower 1202 Plus at 11500KV for two-bladed propellers 3 inches Gemfan 3018. The flight controller is an SPCmaker F411 FC AIO based on an F4 processor, flashed with Betaflight, which includes a 4 in 1 ESC of 8A.

The video part is provided by a RunCam Nano2 camera, a 1200TVL. It is associated with a 5.8 GHz analog video transmitter PandaRC VT5804 Nano. It is compatible with 40 channels, and transmits at 25 mW (the maximum allowed in France), but also 50, 100, 200 and 400 mW to go further.

What you need to take off? FlyFox does not provide a battery, but recommends a rechargeable 18650 1S battery of 3000 mAh, ensuring that the autonomy reaches 15 minutes. According to FlyFox, the Nano3 weighs 102.5 grams with its battery. The device is offered without a radio receiver – it’s up to you to install your own -, or pre-installed with an AFHDS 2A receiver from Flysky, XM+ from FrSky, or Crossfire Nano RX from TBS.
