Geeetech A20T

Geeetech A20T

Brand: Geeetech
Category: 3D Printer
  • 1: Fast to Assemble
  • 2: Mix-color Printing Capability
  • 3: 360-degree Ventilation Design
  • 4: V-shaped rails and wheels
  • 5: Auto-leveling

Our Rating

The overall rating is based on review by our experts

  • Design 9 / 10
  • Features 9 / 10
  • Connectivity 9 / 10
  • Performance 9 / 10

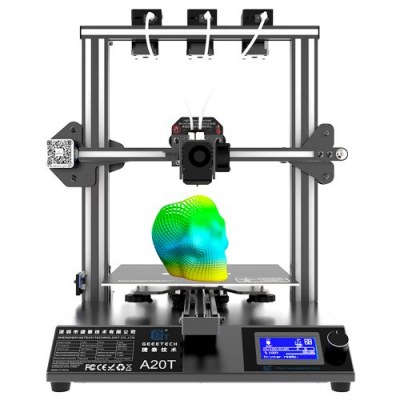

Geeetech A20T Mix-color 3D Printer

The new Geeetech A20T 3D printer delivers mix-color objects and greatly enriches your 3D printing life. Keep the good performance of Geeetech 3D printers, it aims to provide users with quality printout and satisfactory printing experience. A20T makes the best of the building platform and enables you to view the printing details in 360-degree printing at the accuracy of 0.1mm, it delivers objects with smooth surface finish, clear angles and strong structure. Besides, it comes with filament detector and break-resuming capability, greatly enhancing your 3D printing experience.

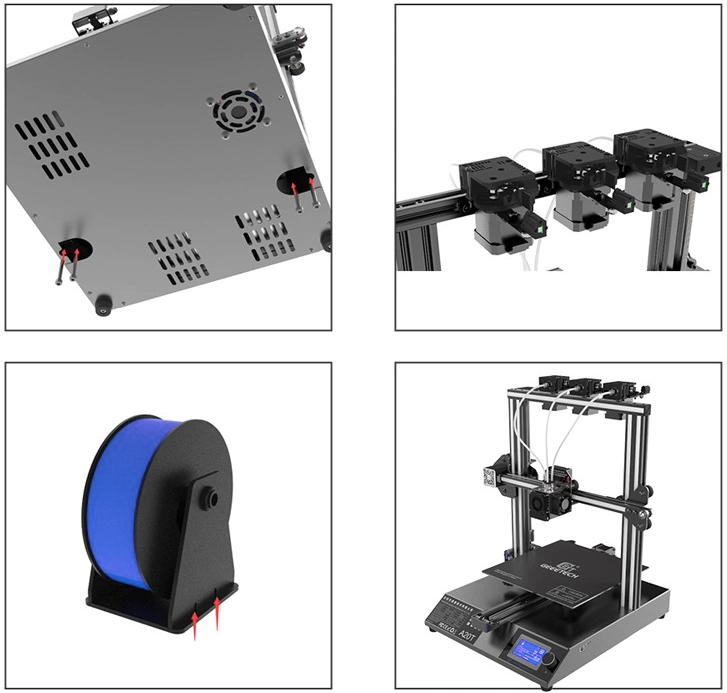

A20T extruder motor uses a gear train of 3:1 speed ratio, amplifying input torque and improving your printing experience. Adopting the modularized design for extruder wiring, A20T makes it easy to exchange the wire.

The V-shaped wheels and rails on each axis, made from wear-resistant aluminum profile, could, in a large measure, reduce the printing noise and offer you a quiet 3D printing environment. In addition, A20T control board supports auto-leveling, an optional add-on. Just connect the auto-leveling sensor and adjust the related parameters. Saving the efforts of manual leveling.

Geeetech EasyPrint 3D host software provides a straight-forward platform for you to control the printer and complete the slicing process. Easy and convenient for both beginner and pros. Combined with 3D Wi-Fi module, A20T invites you to enjoy the convenience of cloud 3D printing solution, via which you could enjoy 50,000+ free 3D models, cloud slicer and remote control over your printer on EasyPrint 3D App. This self-developed App is responsive and user-friendly.


Product Details

Features Printing technology: FDM
Maximum print size: 250 x 250 x 250mm
Printing accuracy: 0.1 - 0.2mm
Positioning precision: X / Y: 0.011mm Z: 0.0025mm
Printing speed: 60mm/s
Nozzle quantity: 3-in-1-out single nozzle
Nozzle diameter: 0.4mm
Filament: Diameter 1.75mm; ABS / PLA, etc
Environment temperature: 10 Deg.C - 40 Deg.C
Operating system: Windows / Mac / Linux
Slicing software: Repetier-Host, EasyPrint 3D, Cura
File format: .STL / .Gcode
Electrical parameters
Power input: 100 - 120V / 200 - 240V
Power output: DC24V / 14.6A,350W
Connectivity: TF card, USB
LCD screen: LCD 12864 screen
Specification Brand: Geeetech
Model: A20T
Type: DIY
Material (Frames): Aluminium Extrusion
Platform board: Aluminum Base
Nozzle quantity: Single
Nozzle diameter: 0.4mm
Product forming size: 250 * 250 * 250mm
Layer thickness: 0.1-0.2mm
Memory card offline print: TF card
Print speed: 60mm / s
Supporting material: ABS,PLA
Material diameter: 1.75mm
Language: English
File format: STL
Model supporting function: Yes
XY-axis positioning accuracy: 0.011mm
Z-axis positioning accuracy: 0.0025mm
Voltage: 100V/240V
Working Power: Input: 100-120v / 200-240v output: DC24V / 14.6A, 350W
Packing Type: Assembled packing
Voltage Range: Input: 100-120v / 200-240v output: DC24V / 14.6A, 350W
Connector Type: TF card,USB

Product weight: 9.0000 kg
Product size (L x W x H): 44.20 x 44.70 x 48.00 cm
