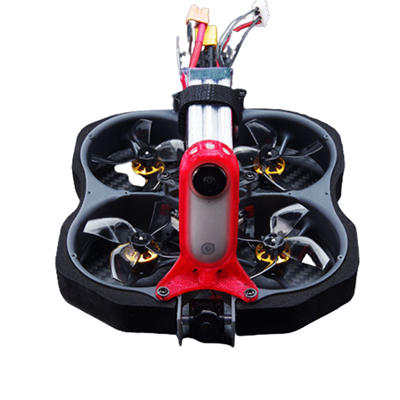

After the digital video return version of the Ligo78X Pro, Geelang offers the analog version. Both versions have an obvious family resemblance, but the features differ. This analog version is based on a minimalist carbon structure, with a plastic and foam fairing. The motors are brushless GL1202 at 8700KV for four-bladed propellers of 2 inches Gemfan 2020.
The flight controller is a SH50AF4 based on a F4 processor, flashed with Betaflight, with a Blackbox of 8 Mb. It is associated with a 4 in 1 ESC of 5A. The camera is a RunCam Nano 4 800TVL which works in conjunction with a 5.8 GHz analog video transmitter capable of transmitting at 25 mW, 100, 200 and 400 mW. The device is to be powered via an XT30 connector with a 450 mAh Lipo 3S, according to Geelang. The data sheet indicates that the device comes with a support for camera Insta360 GO and GO 2.
The Geelang Ligo78X Pro comes either without a radio receiver, with an XM+ receiver from FrSky, or with a Crossfire Nano RX receiver from TBS.
