GEELANG UFO-85X 4K HD

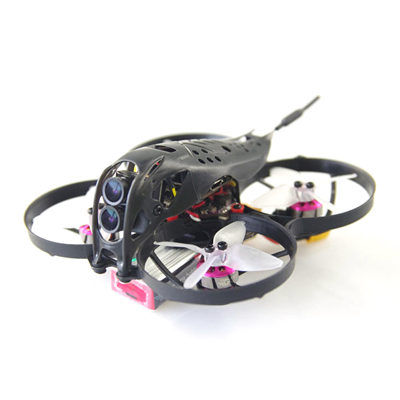

GEELANG UFO-85X 4K HD Hollywood 3-4S Cinewhoop Whoop FPV Racing Drone

This is a new addition to the Cinewhoop small format range. With an 8.5 cm motor-to-motor diagonal, the UFO-85X 4K HD is designed to fit just about anywhere. On board, it shoots in 4K at 30 frames per second with the help of Caddx’s Tarsier V2 camera. This camera also produces images in 2.7K, 1440p and 1080p at 60 fps, stored on a memory card on board. It also broadcasts the analog video return from a 1200TVL sensor via a 5.8 GHz video transmitter compatible with 40 channels, capable of broadcasting images with a power between 25 mW (the maximum allowed in France) and 200 mW, adjustable by SmartAudio and equipped with a dipole antenna.

The motors are brushless GL1204 at 5000KV for Emax Avan four-bladed 2-inch propellers. The whole is powered by a Supra F4 flight controller based on an F4 processor, flashed with Betaflight, with an active OSD, including on the same component an ESC 4 in 1 of 12A BLheli_S. It can be delivered either without radio receiver, or with a DSMX / DSM2 compatible receiver, Flysky, a FrSky XM+, a Futaba AC900 or a TBS Nano Crossfire.

The UFO-85X 4K HD weighs 79 grams without battery, and about 130 grams in flight order with its battery. Geelang delivers a 4S 15.2V 80C LiHV with an XT30 connector. Note that the Tarsier V2 camera is delivered with an ND8 filter (which, it’s a pity, covers both lenses). LEDs are installed in the central fairing. The camera looks a lot like Eachine’s Cinecan (see the test here).

SPECS
