HBFPV FF65-GT

HBFPV FF65-GT

Brand: Other
Category: Drones
  • 1: Max Prop: 65mm (2.5inch)
  • 2: Wheelbase: 108mm
  • 3: Thickness of Carbon Fibre: 2.0mm
  • 4: Material of Ducts: N/A
  • 5: Material of Canopy: Enhanced Nylon Plastic

Our Rating

The overall rating is based on review by our experts

8.3
  • Design 9 / 10
  • Features 8 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

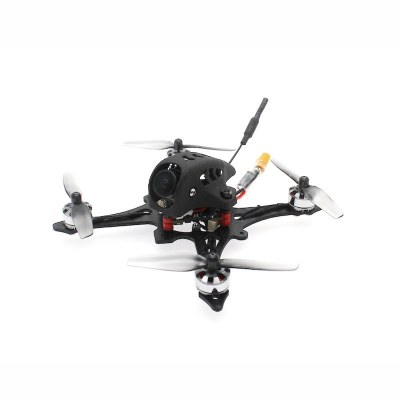

HBFPV FF65-GT 108mm 2-3S 2.5 Inch FPV Racing Drone

This micro racer HBFPV FF65-GT is similar to a Toothpick with its two-bladed propellers and minimalist equipment. It is based on a 2 mm thick carbon structure with a 10.8 cm motor diagonal. The propellers are inspired by those of Parrot, with a diameter of 6.5 cm. They are powered by Oversky MP03 7000KV brushless motors and a 12A DShot600 4-in-1 ESC. The flight controller is based on an F4 processor, flashed with Betaflight, with an active OSD.

It is provided by a Caddx EOS2 1200TVL Turbo FPV camera with a 5.8 GHz video transmitter compatible with 48 channels, capable of transmitting at 0 mW (pitmode), 25 mW (the maximum allowed in France), 100 mW and 200 mW. Control of the settings is possible via remote control and OSD with the IRC Tramp protocol.

The HBFPV FF65-GT can be delivered, as desired, without a radio receiver, with a DSMX receiver, a Flysky RX2A receiver, a FrSky Pro D8 receiver, a Futaba SFHSS AC900 receiver. The power socket is an XT30. HBFPV recommends a Lipo 2S or 3S of 300 mAh. The weight, without the battery, is 47 grams. The price? From $143.99 at Banggood.

SPECS

Product Details

Features Max Prop: 65mm (2.5inch)
Wheelbase: 108mm
Thickness of Carbon Fibre: 2.0mm
Material of Ducts: N/A
Material of Canopy: Enhanced Nylon Plastic

Power Supply: 2-3S
Weight: 47g (without BAT)
Hovering Throttle: 24-26% (with 3S 300mAh)
Recommend BAT: GNB 3S 300mAh / GNB 3S 350mAh
Specification Brand Name: HBFPV
Model: FF65 GT
FC: F4 2-4S 5V 2A BEC built-in OSD
ESC: 12A (2-4S ESC) BLHeli_S 4in1 DShot600
Motor: MP03-7000KV 2-3S
Prop: HQ 65mm 2-blade propeller
Cam: EOS2 1200TVL camera

Size: 28.5mm x 28.5mm
Mounting hole: 25.5mm x 25.5mm
MCU: STM32 F4
Gyroscope: MPU6000
BEC: 5V/2A
Input Voltage: 2-4S Lipo
Built-in Betaflight OSD

Firmware: BLHELI_S
Input Voltage: 2-4S Lipo
Continuous current: 12A
Peak Current: 13A(3 seconds)

Output power: Pit-25-100-200mW
Control mode: BF OSD control (IRC Tramp)
Video system: NTSC/PAL
Battery: 5V
Frequency: 5.8GHz 6 bands 48 channels, with RaceBand: 5362-5945MHz
