HBFPV RF3

HBFPV RF3

Brand: Other
Category: Drones
  • 1: Carbon Fiber Plate: 2.5mm
  • 2: Canopy: Nylon Plastic
  • 3: Power Supply: 2-3S LiPo
  • 4: Estimated Flight Time: 4-7 minutes
  • 5: Wheelbase: 120mm

Our Rating

The overall rating is based on review by our experts

8.5
  • Design 8 / 10
  • Features 9 / 10
  • Performance 8 / 10
  • Connectivity 9 / 10

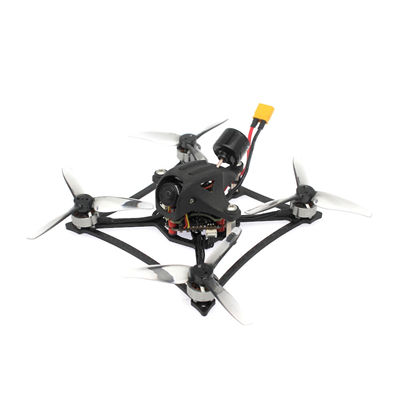

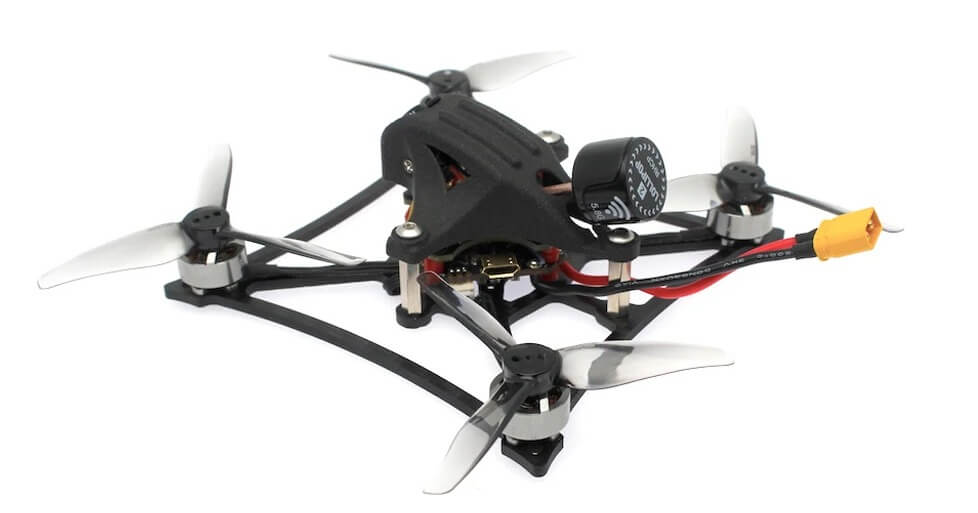

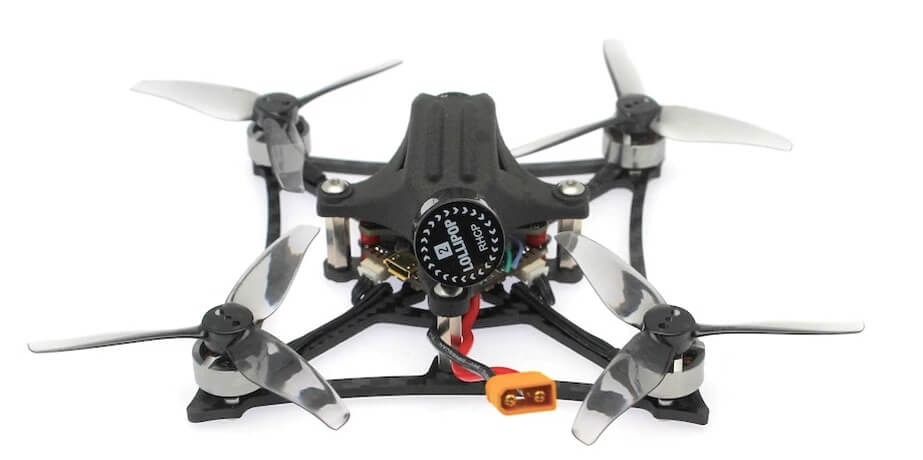

HBFPV RF3 120mm 3 Inch 2-3S Toothpick FreeStyle FPV Racing Drone PNP/BNF 1000mW VTX F4 FC OSD 20A ESC 1103 8000KV Motor

This little racer is qualified as a toothpick by its technical sheet. It is a model which rests on a 2.5 mm thick carbon structure with reinforcements between the motors, for a diagonal of motor to motor of 12 cm. The motors are BlackStorm 1103 to 8000KV brushless connected with connectors, which drive 3-inch Gemfan 3-inch 3016 propellers. The whole is controlled by a flight controller based on an F4 processor, flashed with Betaflight in MatekF411 version, coupled with a ESC 4 in 1 GH-30 DShot600 20A. The video part is provided by a Nano2 FPV camera from RunCam, a fairly classic 700TVL.

It is the 5.8 GHz video transmitter, so the name, GH1W, is a clue. It is compatible with 40 channels, with a polarized antenna connected via a u.FL / IPEX connector. It emits at 25 mW, to comply with European regulations. But it is capable of scaling up where authorized, for an improved range, with powers of 200 mW, 400 mW, 800 mW and 1 Watt! The settings are checked via the radio control and the OSD in IRC Tramp. A central plastic fairing protects the electronics.

69.5 grams without battery… HBFPV recommends Lipo 2S 550 mAh or 3S 450 mAh, with an XT30 connector. The device is delivered without radio receiver, or alternatively with an RX2A from Flysky, a D8, a D16 Non-EU or a D16 EU-LBT from FrSky, or an S-FHSS from Futaba. The price ? The HB3V RF3 will be offered from US$ 119 at Banggood (without shipping, without taxes).





SPECS

Product Details

Features Brand name: HBFPV
Item name: RF3 3 Inch 2-3S Toothpick FreeStyle FPV Racing Drone
Power Supply: 2-3S LiPo
Carbon Fiber Plate: 2.5mm
Canopy: Nylon Plastic
Wheelbase: 120mm
Weight: 69g (without battery)
Recommend BAT: GNB 2S 550mAh / GNB 3S 450mAh
Estimated Flight Time: 4-7 minutes
Receiver Options: FrSky D8 / D16-EU-LBT / D16-NonEU, FS-RX2A, for Futaba-SFHSS
Package Size: 132x132x33 mm
Package Total Weight: 166g
Specification FC & ESC – AF420
Model: HBFPV AF420
MCU: STM32F411
IMU: MPU6000 gyroscope/accelerometer (SPI)
OSD: BetaFlight OSD w/ AT7456E chip
Barometer: N/A
BEC Output: 5V@2A
Integrated LC Filter
Include Buzzer pad
Firmware target: MATEKF411
Continuous current: 20A(21A for 3 seconds)
Input: 2-4S LiPo
Supports Dshot600, Proshot, Oneshot125, Multishot
Current meter: 210
ESC Target: G_H_30

Motor – BlackSorm BS1103
Model: BlackStorm 1103
KV: 8000KV(2-3S)
Motor shaft diameter: 1.5mm
Motor shaft length: 3mm
Motor mounting hole: M2x4, hole distance 9mm
Plug specifications: JST SH1.25 3-Pin plug

Propeller – GemFan GF3016-3
Gemfan GF3016 3-Blade 3 inch Propeller
Quantity: 2 CW & 2 CCW
