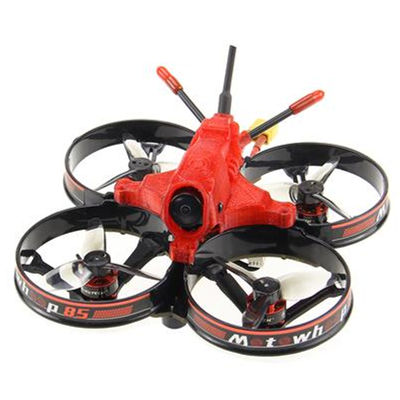

The Tinywhoop family of 85 mm diagonal from motor to motor is growing with this Motowhoop from the manufacturer HGLRC. It rests on a plastic structure comprising the propeller protections, not removable, for dimensions of 11.69 x 12.24 cm. The motors are 1103 to 8000KV brushless for 2-inch 3-blade Gemfan propellers (2023). The whole is orchestrated by a F411 flight controller coupled to a 13A ESC 4 in 1.
It is ensured by a RunCam Nano2 CMOS 2.1mm camera tilting manually from 5 to 45 ° associated with a 5.8 GHz video transmitter capable of transmitting at 0 mW (pitmode), 25 mW, but also 100 mW, 200 mW and 400 mW. The antenna is a dipole fixed with an IPEX connector. A TPU fairing protects the central electronics. HGLRC added 3 LEDs on the structure and a buzzer to find the device more easily in the event of a crash. Why Motowhoop? Look more closely at the fairing seen from the side…
The set weighs 80.1 grams without the battery. HGLRC recommends a Lipo 2S or 3S, probably from 300 to 600 mAh, with an XT30 socket. It’s up to you to add your own SBUS type radio receiver. The price announced on the HGLRC website is 927 €. This is obviously a false value. Contacted about this, HGLRC told me that the price had not yet been fixed. So we will have to wait a bit.
